Snap Dome- Dia 10mm Cross Dome with Through Hole

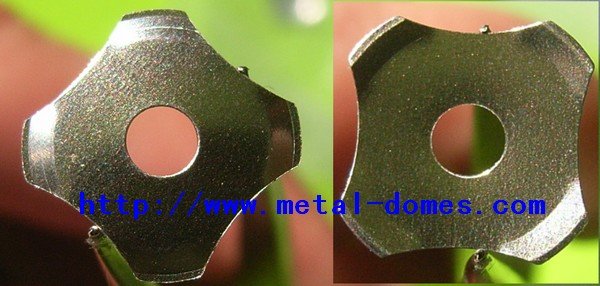

Our Four-leg Snap Dome (also named metal dome), with a through hole at the center, so that after assemble it on PCB, people can still install LED under metal dome and when press dome, LED will go through the hole and don't need to worry that dome will damage LED. So this kind of metal dome can be widely used in such product.

Currently we have 200gf, 280gf, 350gf available.

S10F-200-H (200gf)
S10F-280-H (280gf)
S10F-350-H (350gf)

(the same diameter, the same price, and the trip force can be adjustable)

If you need more information, let us know.

A, Mechanical properties:

Material: SUS 301, SUS 304, SSTL
Diameter: 10 mm
Trip Force: 250--350g
Click rate: 40--60%
Travel: 0.3--0.5mm
Height: 0.55--0.70 mm
Plating: Au/Ni optional
Life expectancy: Minimum 1,000,000 cycles
Dimensional tolerance: +/-0.1mm
Dimensional stability: +/-0.1mm
Operating condition: -30 to +105 Degrees Celsius, 10% to 80% RH
Storage condition: -40 to +85 Degrees Celsius, 10% to 80% RH

B, Primary Competitive Advantages:

1) Experienced Technical Staff
2) Good Price
3) Prompt Delivery
4) Quality Approvals
5) Service
6) Technical Know-How and Support
7) OEM is available

Customers' samples or drawings are welcome. Please contact us today for more! (Products, MOQ, price, shipping charge, return-service, etc.)
