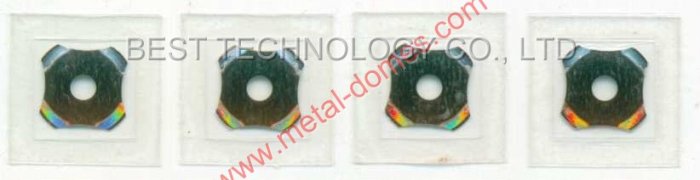

Peelable Dome Array - Four-legs 8.4mm with Center Through hole
Hole dia: 1.8mm
Force: 280gf, 350gf
Surface: Natural one
Dome array size: 12*12mm
Please mention which force do you need. They are with the same price.
Standard Single Key Dome Array is one of our standard metal dome array, which consists of single metal domes on a pressure sensitive adhesive PET sheet (array), and each single metal dome is in the center of kiss-cut adhesive square or circle, with release backing which is easily peeled off.
So sometimes, people also named “Kiss-cut peel off one dome array”, or “peel-off kiss-cut single key dome array”. Or say its full name as “Standard Single Key Metal Dome Array”
You can easily peel off the single metal dome array from release liner backing and adhere it firmly on your PCB, FPC or membrane switches. Now, all of our C, F, T and O series metal dome can be supplied in the Standard Single Key Dome Array tape.
The size of array (sheet) is about 120mmx200mm (4.725 x 7.874 inch), and the amount of metal dome per array (sheet) is determined by the metal dome size you will use, normally it will be 50-100 pcs per sheet.
It’s best convenient and economical way to use our standard single key dome array for prototype, or small quantity volume, so that you don’t need to wait one or two weeks to set up tooling or make customized dome array. It’ll accelerate your R&D process and reduce the R & D cost.
Please contact us for more information of our Standard Single Key Dome Array. Best Technology always trying to be your best vendor for metal dome and dome array in Asia!
