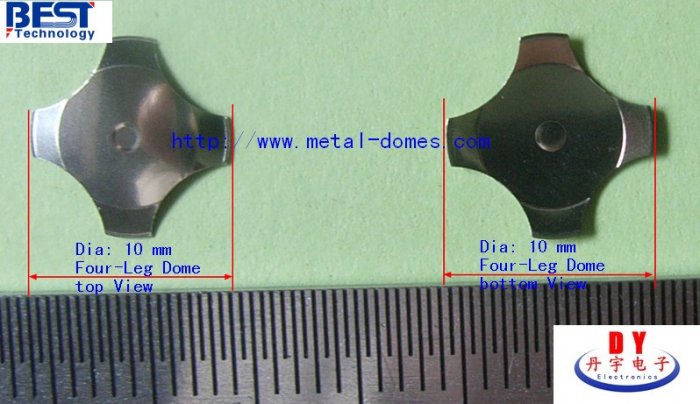

Metal Dome & Snap Dome -- Four-leg Series

Item NO.:

10F-450- D (with dimple)

10F-450 - N (without dimple)

(the same diameter, the same price, please mention what you need is with or without dimple)

A, Mechanical properties:

Material: SUS 301, SUS 304, SSTL
Diameter: 10 mm
Trip Force: 450g (180gf~450gf optional)
Click rate: 30--50%
Travel: 0.3--0.5mm
Height: 0.50-0.60 mm
Plating: Au/Ni optional
Life expectancy: Minimum 500,000 cycles
Dimensional tolerance: +/-0.1mm
Dimensional stability: +/-0.1mm
Operating condition: -30 to +105 Degrees Celsius, 10% to 80% RH
Storage condition: -40 to +85 Degrees Celsius, 10% to 80% RH

B, Primary Competitive Advantages:

1) Experienced Technical Staff
2) Good Price
3) Prompt Delivery
4) Quality Approvals
5) Service
6) Technical Know-How and Support
7) OEM is available

Customers' samples or drawings are welcome. Please contact us today for more!
