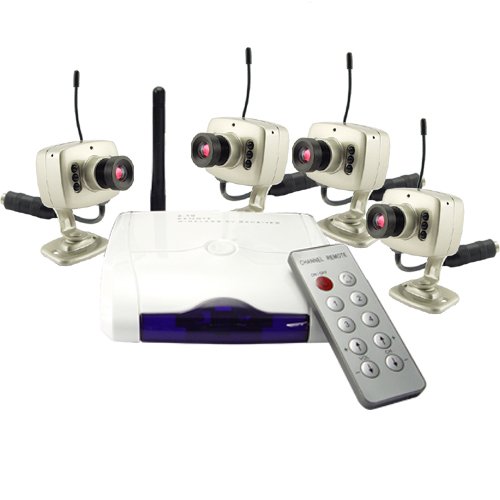

Mini Wireless Home Security Combo - 4 Cameras (USA) [TKE-CVD-42A208X4-NTSC]

This mini wireless home Security combo with 4 nightvision cameras and receiver (USA) is perfect for keeping an eye on your home or small business, day and night!

Looking for an inconspicuous and economical way to watch over your room or small business? Look no further! This mini wireless home Security combo with 4 nightvision cameras and receiver (USA) is simple, affordable, and tiny! Plus, the cameras have night vision! Hide these 4 small cameras in a room and watch the action from a distance. Put a camera in each corner of a store to catch thieves red handed. Put them in a hallway to keep track of who comes and goes. With 4 small, easy-to-install cameras, a wireless receiver that can be placed 20 meters away, the ability to link to a TV monitor, and automatic night vision, the uses of this mini wireless home security combo with 4 nightvision cameras and receiver (USA) are limited only by your imagination.

The 4 mini cameras requires only a power source and can be screwed or clipped on walls, floors, or ceilings. The wireless receiver can be positioned at a distance of up to 20 meters from the cameras and can connect to a TV through AV Out so you can monitor your cameras on a large screen. This mini wireless home Security combo with 4 nightvision cameras and receiver uses the NTSC color system used in the USA and other areas.

Create a miniature Security system without endangering your wallet.

At a Glance...

* Mini wireless Security combo with 4 cameras and receiver
* Wireless Receiver can pick up signal 20 meters away
* Use AV out to watch the action on a large screen TV or monitor
* Cameras have nightvision functionality



This product uses the NTSC color system which is popular in North America. If you need a PAL model then please contact customer service.

Specifications

Receiver Specifications

* Receiving Frequency: ISM 2400~2483Mhz
* Intermediate Frequency: 480Mhz
* Frequency Stabilization: +/-100Khz
* Demodulation Mode: FM
* Antenna: 50ohm SMA
* Video Output: 1Vp-p@75, S/N>38dB
* Audio Output: 1Vp-P@600
* Power Adapter: DC 12V/500mA
* Dimensions: 120 x 99 x 30 mm (L x W x D)
* Manual or Remote Controlled
* Four Channels Available
* Channel Scan and Channel Skip for multiple Cameras


Camera Specifications

* Image Device: 1/3 Inch OmniVision CMOS
* TV system: NTSC 628(H)x568(V)
* Horizontal Definition: 380TV Line
* Angular Field of View: 45deg(f=6mm)
* Minimum Illumination: 3.0Lux(F1.2)
* Synchronization System: Internal
* Scanning Freq(H): 15.734KHz NTSC
* Scanning Freq(V): 60Hz NTSC
* Backlight Compensation: Auto
* Electronic Shutter: 1/50(1/60)~1/100,000sec
* White Balance: Auto
* S/N Ratio: >48dB
* Gamma Correction: >0.45
* Operation Temperature: -10~50 deg C
* Transmission Frequency: ISM 2,400~2483MHz
* Locked Frequencies
* Power Adapter: DC8V/500mA
* Dimensions: 40 x 35 x 35 mm (L x W x D)
* Recommended Range for Objects: 1-8M. Max effective range 10M.
* Transmission Range: 20 meters without interference


Package Contents for Model CVD-42A208X4-NTSC

* 4 Cameras
* 1 Receiver
* 5 Power Supplies (100-240V)
* AV Cable
* Remote Control for Receiver
* Instruction Manual - English




FAQ - Frequently Asked Questions

* Can I transmit the images from the cameras onto the internet, so I can watch the live feed from anywhere in the world? Yes, you can, but you will need to also purchase either an AV to USB converter or an AV to VGA Out converter. To get your cameras online, simply setup the cameras, use one of the converters mentioned above to connect the wireless receiver to an internet capable computer, and install web camera broadcasting software such as Webcam XP or Xray Vision. This kind of software allows the computer connected to the receiver to host the feed from the cameras on the internet. Then from your home (or anywhere else in the world), you can go online, type in the IP address of the computer that is connected to the receiver, and access the live feed from the cameras.
