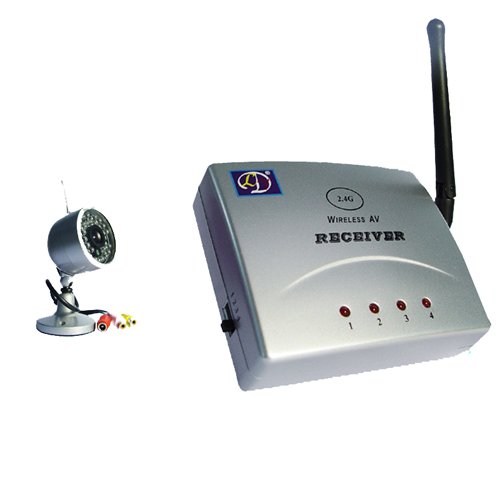

Mini Wireless Monitoring Video Camera and Receiver Set - NTSC [TKE-CVD-310A802-NTSC]

Mini wireless monitoring video camera and wireless receiver set for home and small business security.

How does this system work? Simply install the wireless camera in the room you want to monitor and set the wireless receiver in the next room (up to 15 meters away) and hook it up to a TV or DVR to watch the action or record the footage for your security records.

Wireless camera monitoring sets are popular for keeping an eye on your employees while you're sitting in your office, watching what your children are doing while they are unattended, or install one looking out to the street to see who it is before you open your front door. Better still, the CMOS camera sensor and 2.4 GHz video stream creates full color imagery that is easy to view on even a small monitoring LCD while being wireless, meaning the camera and receiver are easy for DIY installation for almost anyone.

The CVD-310A802 comes at a budget price that makes this mini wireless video camera and receiver set a very economical way to meet your business or family security monitoring needs.

At a Glance...

* Mini wireless monitoring video camera and wireless receiver set for home and small business security.
* This set comes with 1 receiver and 1 camera.


This product uses the NTSC color system

Specifications

Receiver Specification
* Receiving Frequency: ISM 2400~2481Mhz
* Intermediate Frequency: 480Mhz
* Frequency Stabilization: +/-100Khz
* Demodulation Mode: FM
* Antenna: 50ohm SMA
* Receiving Sensitivity: 38dB
* Audio Output: 1Vp-P@600
* Power: Wall power adapter
* Dimensions: 96mm x 79mm x 30mm (L x W x D)
* Channels: Four Channels (no interference from other devices)

Camera Specification
* Image Device: 1/3 Inch OmniVision CMOS
* TV system: NTSC 510(H) x 496(V)
* Horizontal Definition: 380TV Line
* Angular Field of View: 45deg (f=6mm)
* Minimum Illumination: 0.1 Lux
* Built in 30 IR LED for 12M night vision range
* Synchronization System: Internal
* Scanning Freq(H): 15.734KHz NTSC
* Scanning Freq(V): 60Hz NTSC
* Backlight Compensation: Auto
* Electronic Shutter: 1/50(1/60)~1/100,000sec
* White Balance: Auto
* S/N Ratio: >48dB
* Gamma Correction: >0.45
* Operation Temperature: -10~50 deg C
* Transmission Frequency: ISM 2,400~2483MHz
* Power: Wall power adapter
* Dimension: 44mm x 100mm (W x L)
* Built in Microphone
* Recommended Viewing Range for Objects at night: 1-12M. Max effective range 12M
* Recommended Viewing Range for Objects at Day: 1-12M. Max effective range 17M
* Transmission Range: 15 M without interference
* Manufacturer Ref: DEDAB7C5A3

Product Notes

* Great front door security device - since wireless video cameras offer a much wider field of vision than traditional door peepholes you can always be sure if that person at the front door is really the gas man or not
* This system can also be used as a baby monitor or for creating your own home movies just like Edison Chen
* For those with a meaner streak, it's amazing what people will do when they think no one is looking - guaranteed to provide hours of laughs!

Package Contents for Model CVD-310A802-NTSC

* Wireless security set (Camera and Receiver)
* 2x wall power adapter (1x transmitter, 1x receiver)
* Instructions - English
* AV cable
