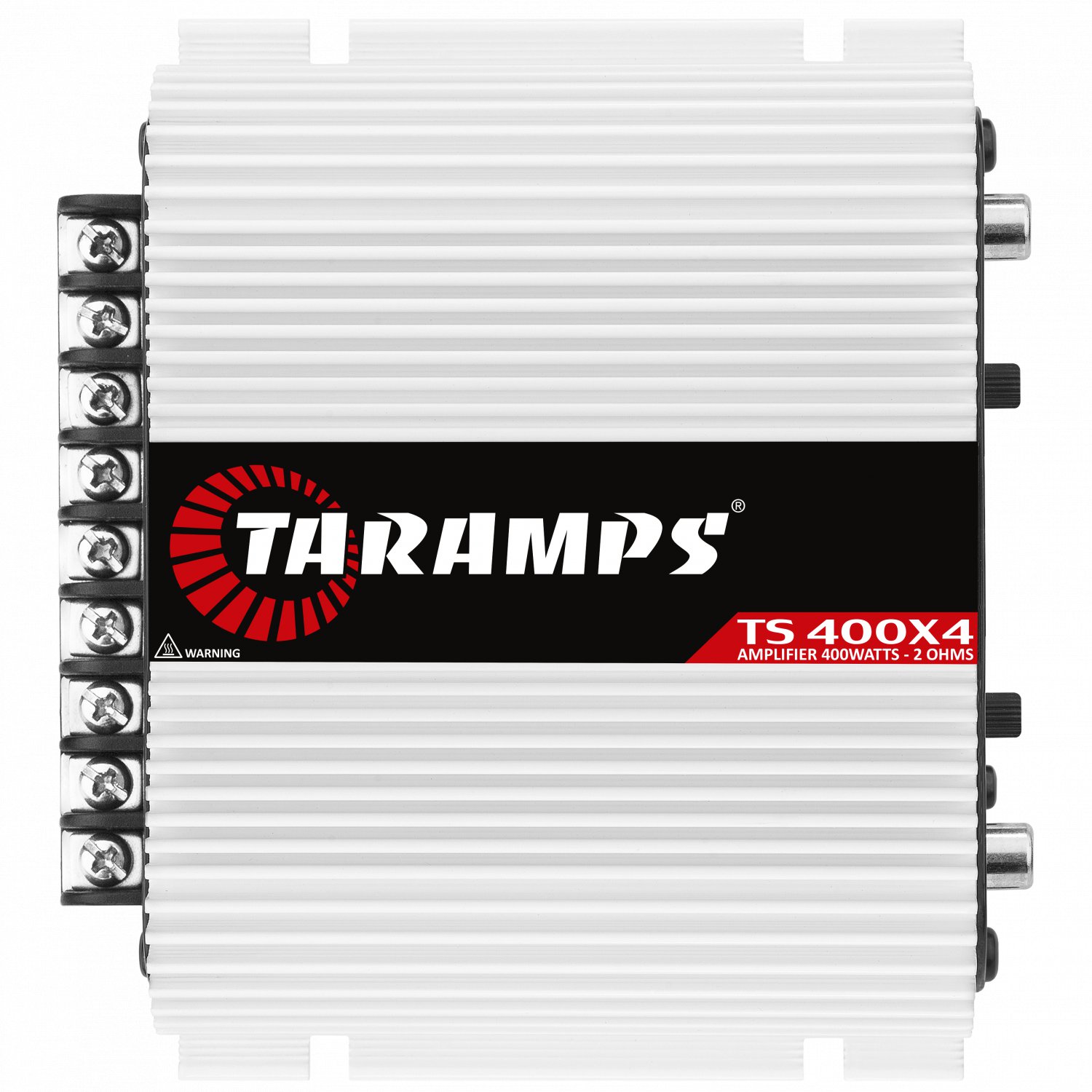

Taramps TS400x4 Amplifier

Description:

The TS 400×4 is designed with the highest performance to suit most types of car audio systems. It is multichannel, with 4 channels of 100 Watts RMS, with a maximum power of 400 Watts RMS at 2 Ohms. The TS 400×4 is a FULL RANGE amplifier. It features thermal and short-circuit protection, plus LED indicator and crossover.

Technical information
2 Ohms VERSION Nominal Power @13.8VDC
2 Ohms: 400W RMS (4 x 100W RMS)
4 Ohms: 252W RMS (4 x 63W RMS)

2 Bridged Channels
4 Ohms: 400W RMS (2 x 200W RMS)
Number of Channels 04
Input Sensitivity 200mV
Signal to Noise Ratio >90dB
Frequency Response 18Hz ~ 30KHz (-3dB)
Crossover high pass (HPF) 90Hz (-12dB/8ª) Fixed
Crossover low pass (LPF) 90Hz (-12dB/8ª) Fixed
Input Impedance 22K ohms
Output Impedance 2 Ohms
protection system Thermal and Output Short
Minimum Supply Voltage 8VDC
Maximum Supply Voltage 16VDC
Consumption at rest 0.8A
Maximum music consumption 16.5A
Maximum consumption in sinusoidal signal 33A
Dimensions (WxHxD) 5.433 x 1.929 x 4.763 inches (138 x 49 x 121 mm)
Weight 1.322 lbs (0.60kg)
EAN 7898556840682
