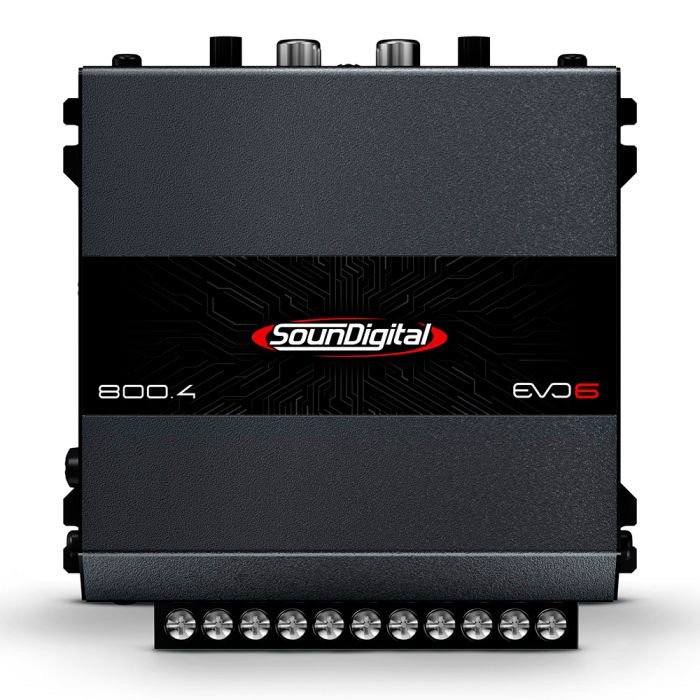

Amplifier SounDigital SD800.4 EVO 6 Car Sound 800 Watts RMS

The 800.4 EVO6 is a compact, modern amplifier that delivers 800W RMS of power over 4 channels.

The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for the most daring projects.



General Specifications

800.4 EVO6 – 4 OHMS

Power @ 4Ω: 4 x 132W RMS
Power @ 2Ω: 4 x 200W RMS

Bridge Power @ 2Ω: 2 X 400W RMS
Bridge Power @ 4Ω: N/A

Frequency Response (-3dB):

5Hz ~ 20kHz

Low Pass Filter (12dB/octave):

80Hz

High Pass Filter (12dB/octave):

80Hz

Operating Voltage:

9V ~ 16V

SNR:

93dB

Input Sensitivity (RCA):

0.2V ~ 2V

Current Draw (music):

39A

Current Draw (max.):

78.7A

Total Efficiency:

80%

Damping Factor (@100Hz nominal impedance):

200

Power Cable:

10mm² (7 AWG)

Speaker Cable:

2 x 2.5mm² (13 AWG)

Recommended Fuse (music):

40A

Recommended Battery (minimum):

60Ah

Width:

4.4" / 11.2 cm

Lenght:

4.2" / 10.7 cm

Height:

2.0" / 5.2 cm

Weight:

0,609 kg / 1.342 lb
