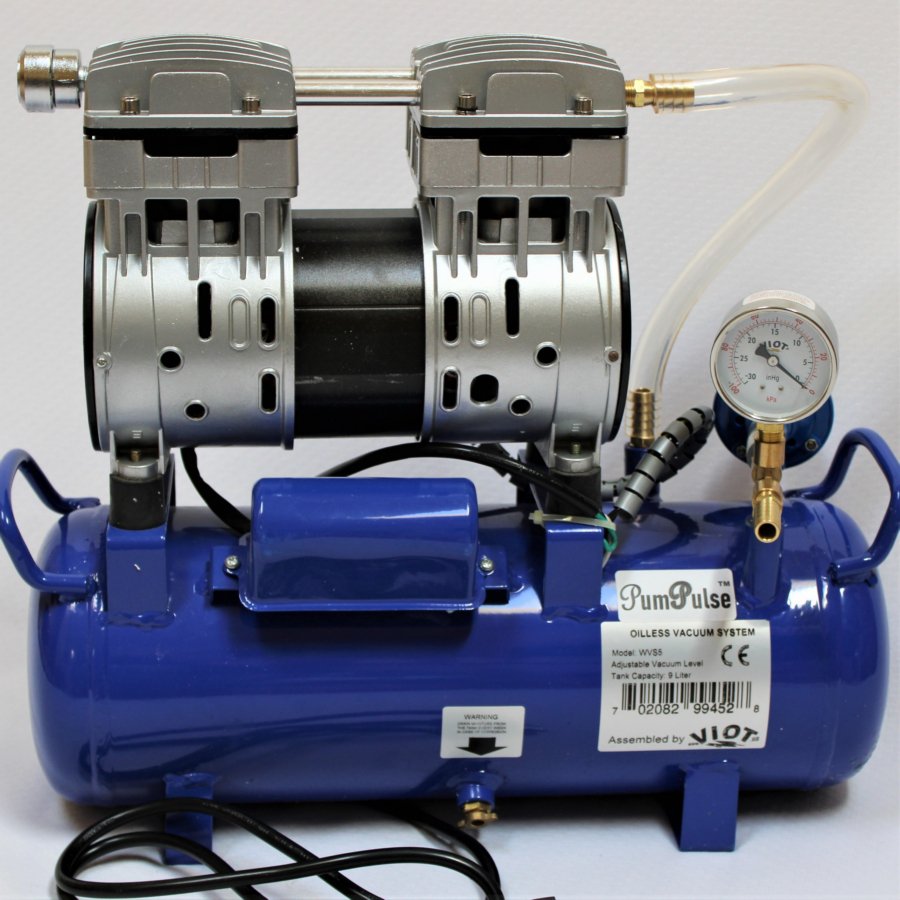

OIL-LESS OIL-FREE VACUUM Pump System with automatic max vacuum pressure control, vacuum reservoir/liquid collector, Regulators and Gauge:
Note: This Vacuum Power Source is designed for leaky application like a cow milker, or workshop application where a max vacuum level is need to be controlled; the pump will run continuously, but the system pressure will never exceed the set maximum pressure to prevent boil over hurting the job you are doing like a cow or goat during milking.

FEATURES & SPECIFICATIONS:

OIL-free twin piston vacuum pump: 5.5CFM air replacement;
Max Vacuum: 25 inch Hg;
Thermal protected motor 550 Watt
Power Supply:115 VAC, 60 Hz;
Insulation Class B;
5 ft power cord with UL plug;
Capacitor: 80 uF, cased in and protected;

Vacuum pressure control with regulator and gauge attached.
Designed for milker hookup or workshop where a maximum vacuum level desired;
Come with a mini muffler for quieter operation;
Vacuum Tank/liquid collector Capacity: 9 liter, with drainage plug
Physical Dimensions:
Size: 22 X 10 X 20 inch;
Weight: 40 lb.
Intake Port: 1/4 female NPT and adapter to 1/2 Barb.

Packing List:



Pump with tank assembled together, 1 unit
Vacuum regulator/gauge, 1 unit
Intake Port adapter: 1/4 MNPT X 1/2 barb, 2 units
Exhaust muffler, 1 unit
User Manual: 1 copy
