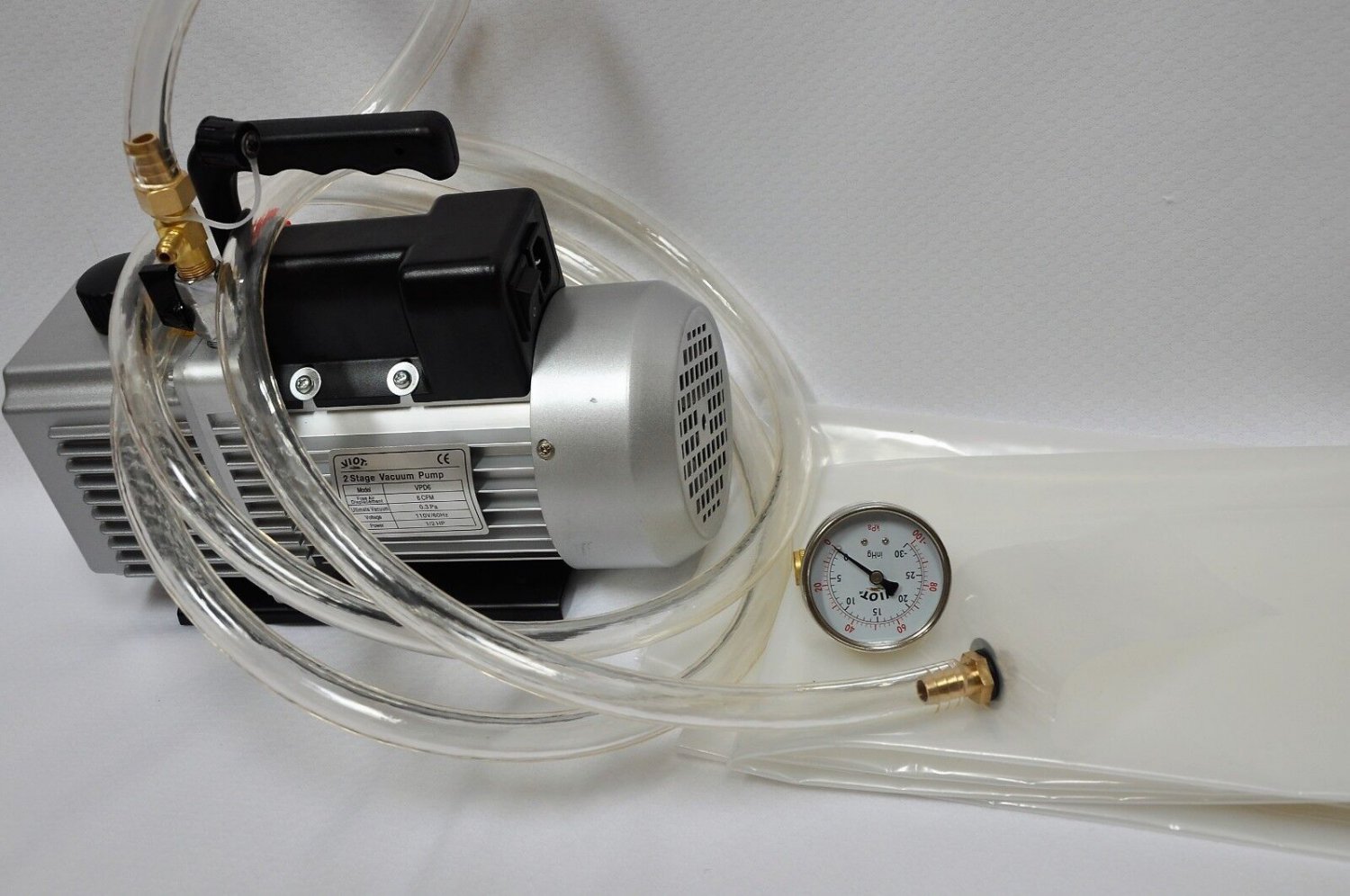

Vacuum Bagging Hardware Starter Kit: with Deep Vacuum pump Bagging Material, Vacuum Gauge, Vacuum Nipple and Other Hardware for a easy setup for Epoxy and the alike infiltration in Workshops Vacuum bagging is a great method for building a better composite part. This Starter Kit contains the essential tools and hardware to let you get it started. Including the vacuum source: the pump, and the bagging film. You get your building materials and you are ready to get started. Remember, all of our fittings, components, and our tubing are durable and compatible. They can all be used again, and combined for vacuum bagging components. View a demo and review by a customer in this business at: https://www.youtube.com/watch?v=eHyAhXMj8cc SPECIFICATIONS OF THE PUMP: POWER SUPPLY: 110 VOLTS PUMPING RATE: 6.0 CFM POWER: 1/2 HP INTAKE PORT: 1/4 inch male SAE, and 3/8 inch Male SAE flare, include an adapter to 1/2 ACME MAX VACUUM: 25 MICRONS DIMENSIONS: 305(L) x 132(H) x 240(W) OIL CAPACITY: 450 ml WEIGHT: 28 lbs SPECIFICATIONS OF THE VACUUM GAUGE: Construction: SS case on a brass frame; Size: 2.5-inch in diameter, large face; 2.0 inch over all depth Range: from 0 to -30" Hg or -100 kPa scales in range; Connection: straight 1/8" NPT male brass, on back center of the gauge body; 5% accuracy on the full scale; plus a Tee adapter(1/4 X 1/4 X 1/8) to 1/4" SAE Flare port; SPECIFICATIONS OF THE VACUUM CHUCK(NIPPLE) AND BAG SHEET: Straight solid brass structure with 1/2 multi Barbed connector to hose/tubing, no restriction with 1.6 inch over all height with matching rubber washer sealer and sealers needed for a tight connection; with matching large SS washer with bigger contact area to protect the film forming the bag With a 5 ft 1/2 ID 3/4 OD thick walled vacuum hose with 1 sheet of plastic bagging material: 6 mil thick stretchable punch resistant 60" X 100" Sold as one assembly unit FEATURES OF THE PUMP Aluminum alloy casing: Alloy casing has high heat dissipation to keep the motor and pump cool, while being light weight and efficient Direct drive motor allows for easy start up and is maintenance free Direct coupling between the motor and pump results in quiet running and good performance Oil drain valve positioned at bottom of oil reservoir. With a hand valve built-in at the intake ports: 1/4 flare and 3/8 flare. Great tool for: AC system evacuation (Refrigeration or Air Conditioning) PACKING LIST: Vacuum Pump with a Bottle of vacuum oil and Power Cord Vacuum Gauge with a Tee adapter Vacuum Gauge Chuck with 5 ft 1/2 ID vacuum hose Bagging fabric: 60" X 100" X 6 mil5ft PVC hose included
