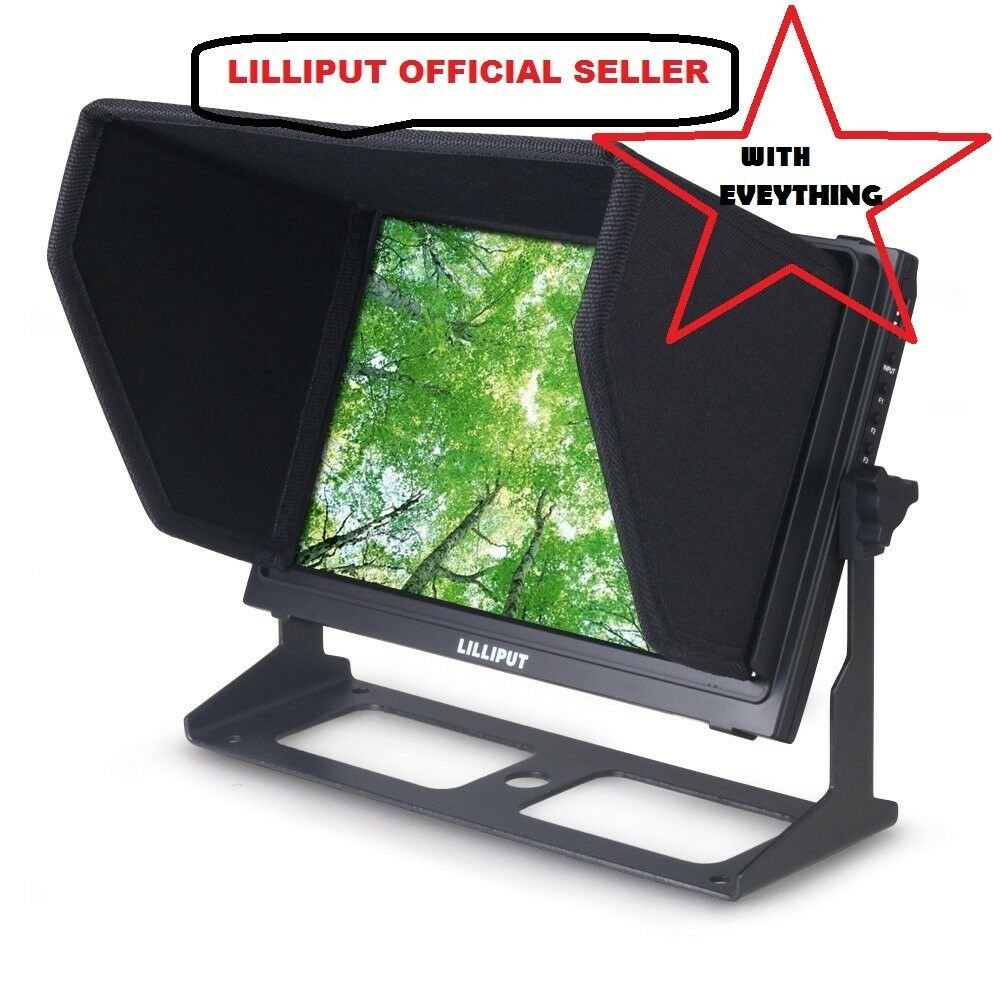

TM-1018/STouch Camera MonitorColor/RGB histogram, waveform, vector scope & Audio level meter,Multi-touch capacitive screen,IPS panel 170° wide viewing angles,High resolution: 1280×800,High contrast: 800:1,Abundant interfaces: 3G-SDI, HDMI, VGA, AV input,Wide voltage: DC 7-24V,Tally indicating, Slimmer & portable design!TM-1018/S (with new advanced Functions, with SDI input and output )Lilliput creatively integrated waveform, vector scope, video analyser & touch control into on-camera monitor, which provides Luminance/Color/RGB histograms, Luminance/RGB parade/YCbCr parade Waveforms, Vector scope and other waveform modes; And measurement modes such as Peaking, Exposure & Audio level meter. These assist users to accurately monitor when shooting, making and playing movies/videos.Level meter, Histogram, Waveform & Vector scope can be displayed horizontally at the same time; Professional waveform measurement & color control to realise and record Natural color. Advanced Functions:Histogram:Histogram consist of RGB, Color & Luminance histograms. RGB histogram: shows the red, green, and blue channels in overlay histogram,Color histogram: shows histograms for each of the red, green, and blue channels,Luminance histogram: shows the distribution of brightness in an image as a graph of luminance. Luminance Color RGB overlay WaveformWaveform monitoring consist of Luminance, YCbCr parade & RGB parade Waveforms, which used for measuring the brightness, luminance or chroma values from a video input signal. It not only can warn the user for out-of-range conditions such as overexposure errors, but also assist with colour correction & camera white and black balance. Y / Luminance YCbCr parade RGB parade Y - enlarged horizontallyVector scopeVector scope shows how saturated the image is and where the pixels in the image land on the color spectrum. It can also be displayed in various sizes & positions, that allows users to monitor color gamut range in real time. Vector scope Vector scope Audio Level MeterThe Audio Level Meters provide numerical indicators and headroom levels. It can generate accurate audio level displays to prevent errors during monitoring. Audio level meter Abundant interfaces: 3G-SDI, HDMI, VGA, AV inputTM-1018/S includes 3G-SDI connection to meet a broadcast professional needs. Composite and component through BNC connectors and HDMI inputs covers all the bases for common broadcast applications. It even includes one HDMI output, so no extra expensive HDMI splitters are required DISPLAY Display Screen 10.1" LED IPS Touch Panel Multi-touch capacitive Physical Resolution 1280×800, support up to 1920×1080 Aspect Ratio 16:9 Brightness 350cd/㎡ Contrast 800:1 Viewing Angle 170°/170°(H/V)INPUT 3G-SDI 1 HDMI 1 Composite 1 TALLY 1 VGA 1OUTPUT 3G-SDI 1 HDMI 1 VIDEO 1AUDIO Speaker 1(build-in) Ear Phone Slot 1POWER Current 1200mA Input Voltage DC 7-24V Battery Plate V-mount / Anton Bauer mount / F970 / QM91D / DU21 / LP-E6 Power Consumption ≤12WENVIRONMENT Operating Temperature 0℃～50℃ Storage Temperature -20℃～60℃DIMENSION Dimension(LWD) 250×170×29.6mm Weight 630gWhat's in the package : SuitcaseBattery plate bracketBattery Plate(F970+LP-E6 INCLUDED )Shoe Mount Folding sun shadeComposite cableHDMI A/C cableVESA battery bracketMini XLR HDMI A/C cable12V DC adapterManualAnton Mount Plate
