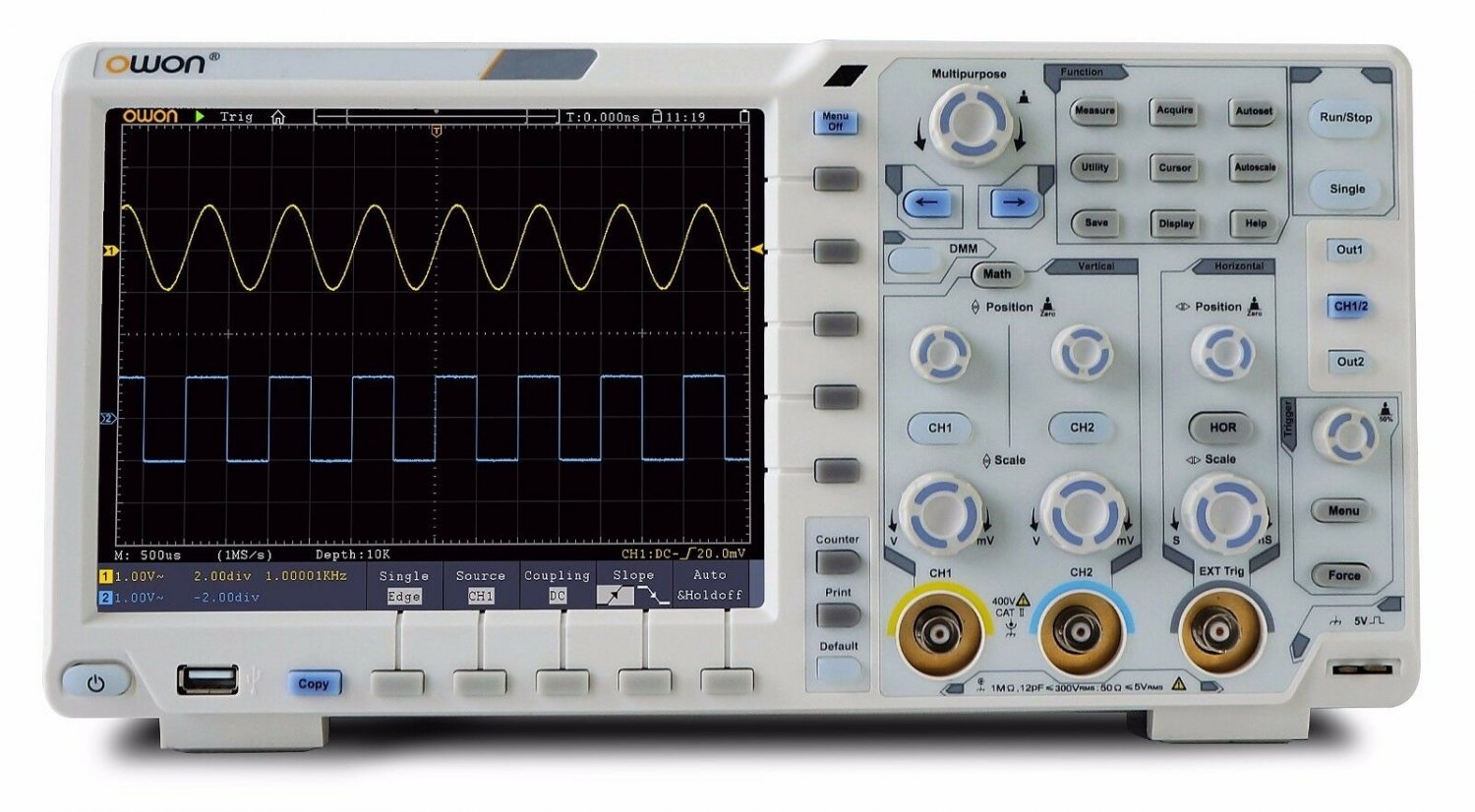

OWON USA OFFICIAL SELLER! Performance SpecificationsModelXDS3202ABandwidth200MHzSample Rate2GS/sVertical Resolution (A/D)12 bitsRecord Length40MWaveform Refresh Rate75,000 wfms/sHorizontal Scale (s/div)1ns/div - 1000s/div, step by 1 - 2 - 5Rise T ime (at input, typical)≤1.7nsChannel2 + 1 (external)Display8" color LCD, 800 x 600 pixels (optional 1024 x 768 pixels IPS display available)Input Impedance1MΩ ± 2 %, in parallel with 15pF ± 5pF; 50Ω ± 2%Channel Isolation50Hz : 100 : 1, 10MHz : 40 : 1Max Input Voltage1MΩ ≤ 300Vrms; 50Ω ≤ 5VrmsDC Gain Accuracy±1%DC Accuracyaverage ≥ 16 : ±(3% reading + 0.05 div) for △VProbe Attenuation Factor0.001X - 1000X, step by 1 - 2 - 5LF Respond (AC, -3dB)≥5Hz (at input, AC coupling, -3dB)Sampling Rate / Relay Time Accuracy± 1ppmInterpolationsin(x) / xInterval (△T) Accuracy (full bandwidth)Single : ±(1 interval time + 1ppm x reading + 0.6ns);Average > 16 : ±(1 interval time + 1ppm x reading + 0.4ns)Input CouplingDC, A C, and GNDVertical Sensitivity1mV/div - 10V/div (at input)Trigger TypeEdge, Video, Pulse, Slope, Runt, Windows, T imeout, Nth Edge, Logic, I2C, SPI, R S232, and CAN (optional)Bus DecodingI2C, SPI, R S232, and CAN (optional)Trigger Mode Auto, Normal, and SingleVertical Range±2V ( 1mv/div - 50mv/div), ±20V ( 100mv/div - 1V/div), ±200V (2V/div - 10V/div)Line / Field Frequency (video)NTSC, PAL and SECAM standardCursor Measurement△V, and △ T between cursorsAutomatic MeasurementVpp, Vavg, Vrms, Freq, Period, Week RMS, Cursor RMS, Vmax, Vmin, Vtop, Vbase, Vamp, Overshoot, Phase,Preshoot, Rise Time, Fall Time, +Width, -Width, +Duty, -Duty, Duty Cycle, Delay A→B , Delay A→B , +Pulse Count, -Pulse Count, Rise Edge Count, Fall Edge CountWaveform Math+, -, ×, ÷, FFTWaveform Storage100 waveformsLissajous Figure Bandwidthfull bandwidthLissajous Figure Phase Difference±3 d egreesCommunication InterfaceUSB host, USB device, Pass / Fail, LAN, and VGA (optional)Frequency CounteravailablePower Supply100 - 240 V AC, 50 / 60Hz, CAT IIPower Consumption＜15WFuse2A, T class, 250VBattery (optional)3.7V, 1 3200m ADimension (W × H × D)340 x 177 x 90 (mm)Weight2.6 kg Multimeter (optional) SpecificationsFull Scale Reading 3 ¾ digits (max 4000 count)Diode0V - 1.5VInput Impedance 10MΩContinuity Test 16 : ±(1 interval time + 1ppm x reading + 0.4ns)Input Coupling: DC, A C, and GNDVertical Sensitivity:1mV/div - 10V/div (at input)Trigger Type:Edge, Video, Pulse, Slope, Runt, Windows, T imeout, Nth Edge, Logic, I C, SPI, RS232, and CAN (optional)Bus Decoding (optional): I C, SPI, RS232, and CANTrigger Mode: Auto, Normal, and SingleVertical Range: ±2V ( 1mv/div - 5 0mv/div), ± 20V ( 100mv/div - 1 V/div), ± 200V ( 2V/div - 1 0V/div)Line/Field Frequency (video): NTSC, PAL and S ECAM s tandardCursor Measurement: △V, a nd △ T between c ursors, △V and △ T between c ursors, a nd a uto- c ursorsAutomatic Measurement:Vpp, Vavg, Vrms, Freq, Period, Week RMS, C ursor R MS, V max, V min, Vtop, V base, V amp, O vershoot, P hase, Preshoot, R ise Time, Fall Time, +Width, - Width, + Duty, - Duty, D uty C ycle, D elay A→B , D elay A→B , +Pulse Count, - Pulse Count, R ise Edge C ount, F all Edge CountWaveform Math: +, - , * , / , FFTWaveform Storage:100 waveformsCommunication Interface: USB host, USB d evice, USB p ort f or P ictBridge, T rig O ut ( P/F), LAN, a nd VGA ( optional)Frequency Counter: availablePower Supply: 100 - 2 40 V AC, 5 0/ 60Hz, CAT IIPower Consumption:＜15WFuse: 2A, T class, 250VBattery (optional) 3.7V, 1 3200m AhDimension (W x H x D) 340 x 177 x 90 (mm)Device Weight 2.60 kgAccessories included :1* Power cord1* CD Rrm1* Manual1* USB Cable1* Probe1* Probe Adjust1* Soft Bag Optional: you can pay extra for adding below options:(1) VGA+AV: USD15　(2) MTS touch screen: USD65　(3) Wifi: USD80　(4)Multimeter: USD40　(5)CAN trigger/decoding: USD80 　(6) I2C,SPI,RS232: USD55　(7) 25M generation dual channel: USD120(8)50M generation dual channel,just for 8bit) USD200　(9) Battery: USD65
