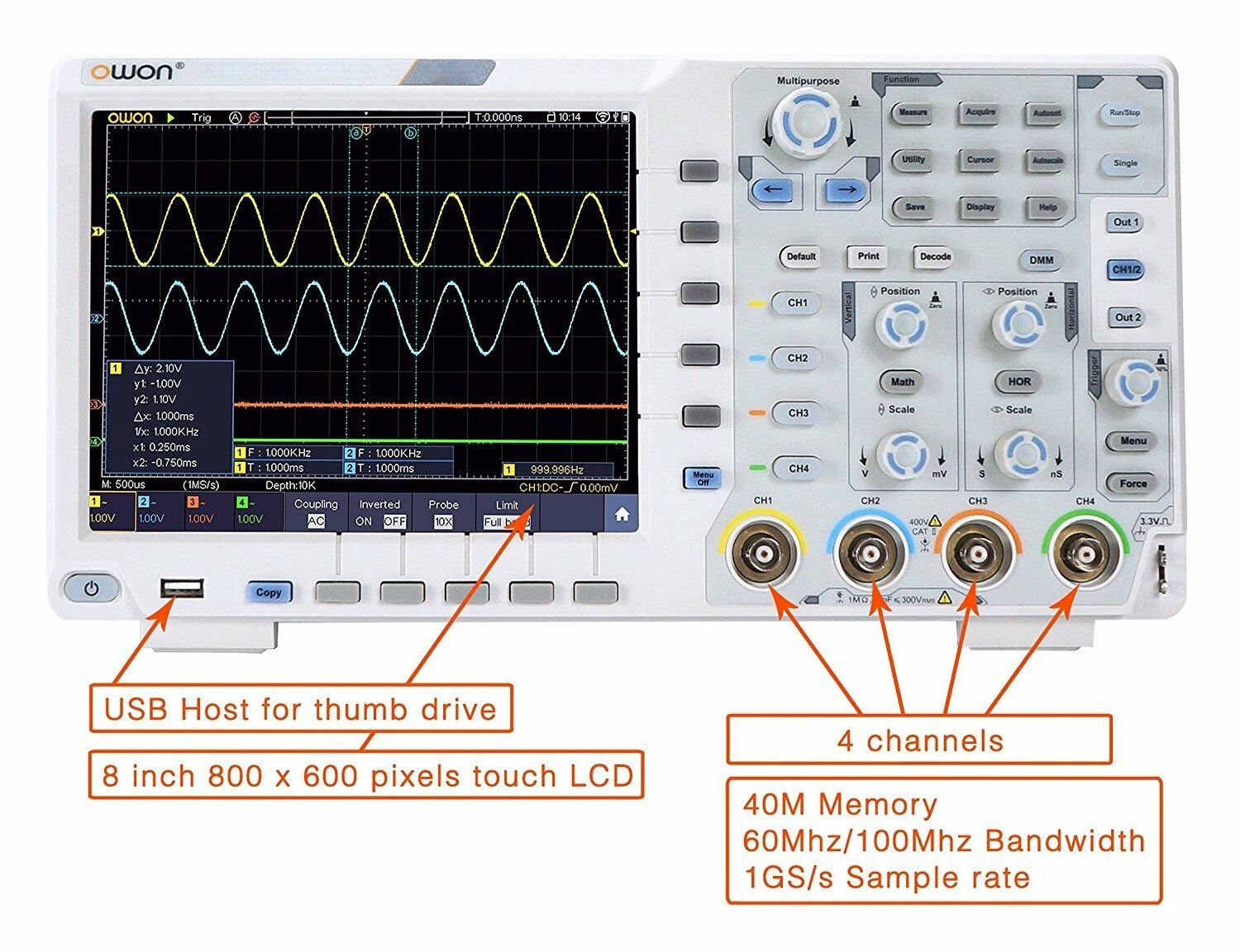

OWON XDS3064E 60MHz 4CH 8 bits 40M Touchscreen Low Noise Digital OscilloscopeDescriptionOWON XDS3064E 60MHz 4CH 8 bits Touchscreen Low Noise Digital Oscilloscope + 60MHz - 200MHz Bandwidth，1GS/s sample rate+ 8-bit or 14-bit high resolution ADC+ 40M record length max 70,000 wfms/s waveform refresh rate+ low back ground noise+8 inch 800 x 600 high resolution LCD, optional multi-touch screen, more user-friendly operation experience+ SCPI, and LabVIEW supported+ multi- trigger, and bus decoding function+ multi-interface integration - USB host, USB device, USB port for PictBridge, LAN, AUX, and VGA SpecificationsModelXDS3064EXDS3104EXDS3064AEXDS3104AEXDS3104XDS3204EBandwidth60MHz100MHz60MHz100MHz200MHzSample Rate1GS/s1GS/s (500MS/s for each channel)Vertical Resolution (A/D))8 bits14 bitsRecord length40MWaveform Refresh Rate45,000 wfms/s70,000 wfms/sHorizontal Scale (s/div))2ns/div - 1000s/div, step by 1 - 2 - 51ns/div - 1000s/div, step by 1 - 2 - 5Channel4Display8" color LCD, 800 x 600 pixels displaySample Rate / Relay Time Accuracy±1ppmInput CouplingDC, AC, GNDVertical Sensitivity1mV/div - 10V/div (at input)Trigger TypeEdge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic, I2C, SPI, RS232, and CAN (optional)Bus Decoding(optional)I2C, SPI, RS232, CANTrigger ModeAuto, Normal, and SingleVertical Range±2V(1mV/div～50mV/div)；±20V(100mV/div～1V/div)；±200V(2V/div～10V/div)Waveform Math+, -, *, /, FFT, Intg, Diff, Sqrt, and user defined functionCommunication InterfaceUSB host, USB device, USB port for PictBridge, Trig Out (P/F), LAN, and VGA (optional)Frequency CounteravailablePower Supply100V - 240V AC, 50/60Hz, CAT IIFuse2A, T class, 250VBattery (optional)3.7V, 13200mADimension (W x H x D)340mmx177mmx90mmOptional Module / FunctionVGAVGA+AV portWIFWifiAWGarb waveform generator (only apply to XDS3104E 、XDS3064E，XDS3014, XDS3204E)DMMdigital multimeterMTSTouch screen(capacitor-type)Optional Decoding KitRS232RS232 SPISPII2CI2CCANCANAdditional cost for following options(Please email to seller if you need add any options)Touch screen:$55.00VGA-AV $18.00WIFI $65.00DMM $30.00CAN trigger &decoding $65.00SPI,I2C,RS232 Decoding $30.002CH 25M AWG $90.002CH 50M AWG $170.00BATTERRY $50.00 Package list:1. XDS XDS3064E2. Power Cord3. CD Rom4. Quick Guide5. USB Cable6. Probe7. Probe Adjust
