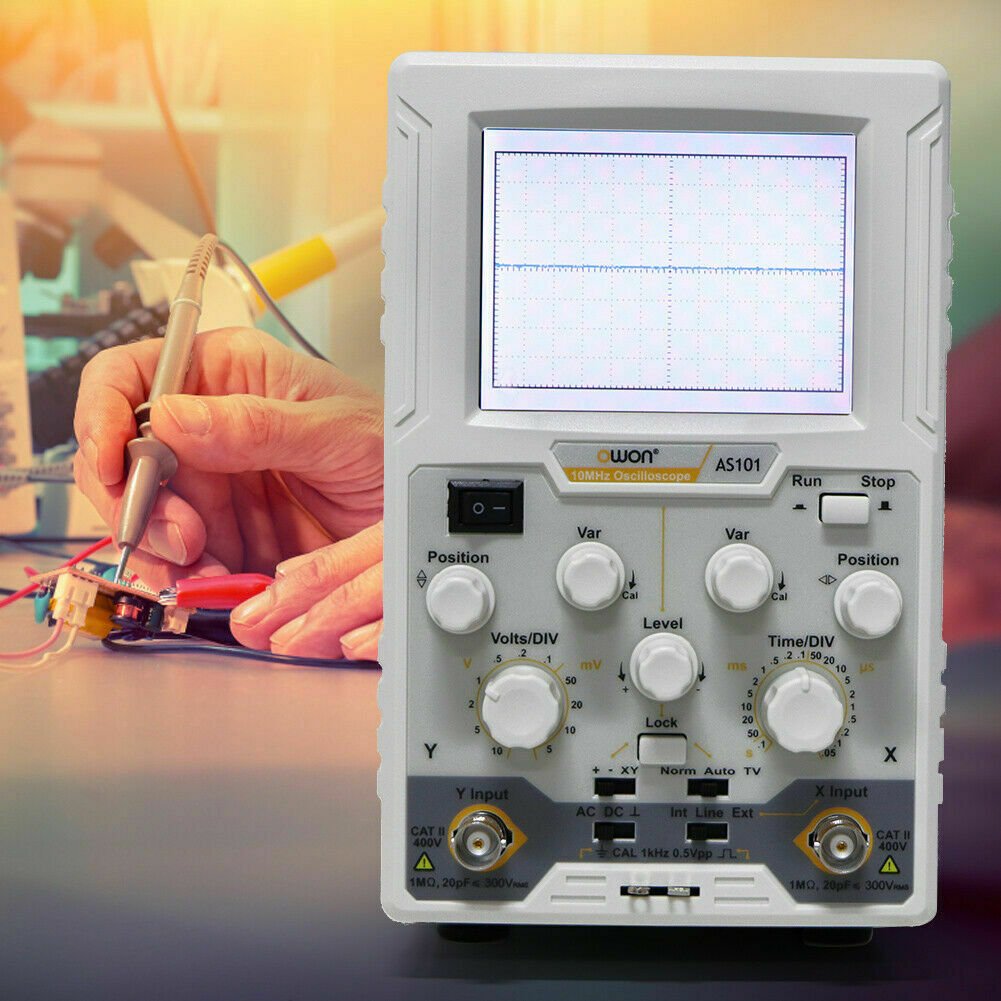

OWON AS101 100MS/s Single Channel Virtual Digital Oscilloscope 10MHz BandwidthFeatures:1. The best choice for replacing an analog oscilloscope. A simple control panel similar to an analog oscilloscope. 2. Bandwidth: DC: 0-10MHz, AC: 10 Hz-10MHz, sampling rate: 100MS/s. 3. 1 channel, the horizontal system sampling rate is 100MS/s, the scanning speed is 0.05us/DIV - 0.1s/DIV, step by 1- 2 - 5. 4. 130,000 wfms/s waveform capture rate, easy to capture anomalies and low probability events. 5. 3.7in color LCD display.Specification: Condition:100% Brand New Material: Metal + Plastics Color: As shown in the picture ModelAS101Bandwidth DC:0-10MHz, AC: 10 Hz-10MHzChannel 1 Horizontal system Sample Rate 100MS/sInterpolation (Sinx)/xScanning speed (S/DIV) 0.05us/DIV - 0.1s/DIV,step by 1-2 - 5relay time accuracy ±100 ppmTrimming Ratio >=2.5:1Vertical system Sensitivity 5 mV/DIV-10 V/DIVDisplacement ±10DIVAnalog bandwidth 10 MHzLow Frequency ≥10 Hz (at input, AC coupling, -3 dB)Rise time (at input, Typical) ≤ 30 nsTrimming Ratio >=2.5:1Input coupling DC, AC , GroundInput impedance 1 MΩ±2%, in parallel with 20 pF±5 pFMax. input voltage 400V (DC+AC, PK - PK)X-Y Model Sensitivity X:0.5V/DIV Y:0.1V/DIV - 1V/DIVBandwidth(-3dB) DC: 0 -1MHz AC: 10Hz -1MHzTrigger Trigger level range ±4 DIV from the screen centerTrigger level Accuracy (typical) ±0.3 DIVTrigger Sources Int, Line, ExtTrigger Mode Norm, AUTO, TVEdge trigger Rising, FallingVideo Trigger Support standard NTSC, PAL and SECAM broadcast systems Sample Rate / Relay Time ±100ppmTrigger lock supportExt. Trigger Input Impedance 1 MΩ±2%, in parallel with 20 pF±5 pFExt. Trigger Max. Input Voltage 400VppTrigger Output of the probe compensator Output Voltage (Typical) Square, 0.5Vpp±2%Frequency (Typical) Square wave of 1 kHz(±1%)Display 3.7" Colored LCD (Liquid Crystal Display)Power Supply 100V -240V AC, 50/60Hz, CAT IIPower Consumption ＜15WFuse 1A, T class, 250VDimension (W x H x D) 117x192x288mm / 4.6x7.6x11.3inDevice Weight About 1.8 kg Package List:1 x Oscilloscope 1 x Probe 1 x Probe Adjustment Kit 1 x Instruction Manual 1 x Fuse
