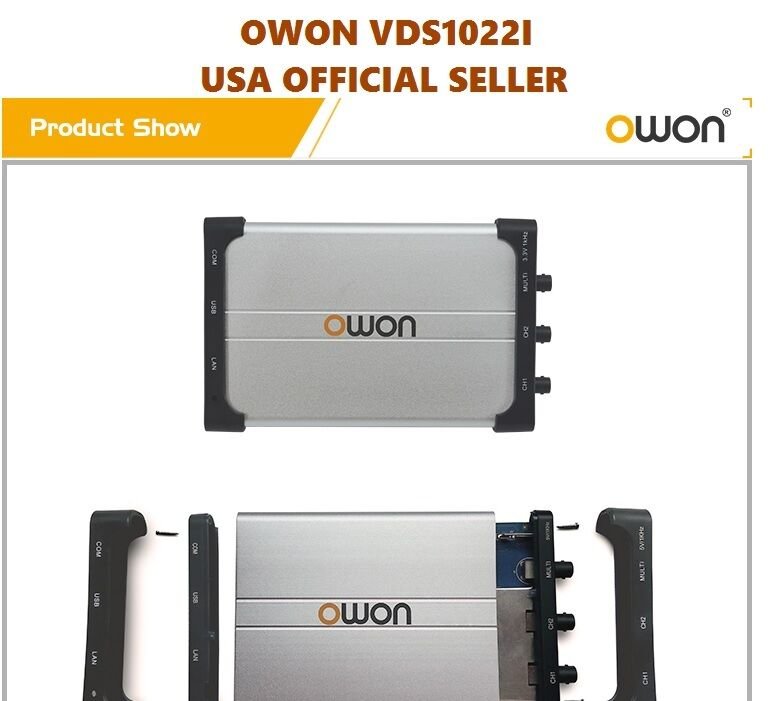

OWON VDS Series PC oscilloscope VDS1022I Main Features- Up to 100MHz bandwidth, and max 1GS/s real-time sample rate- 10M record length- Friendly UI : FFT, or X-Y, and waveform 2 views displayed on the same screen- Multi-trigger option : edge, video, slope, pulse, and alternate- USB isolation - less signal inference, more PC protection- USB bus powering, and LAN remote control- Ultra-thin body design, easy portabilityApplicationdesign and debug circuit function test education and trainingSpecificationsModelVDS1022IVDS1022VDS2052VDS2062VDS2064VDS3102VDS3104Bandwidth25MHz50MHz60MHZ100MHZChannel2+1 (multi)4+1 (multi)2+1 (multi)4+1 (multi)Sample Rate100MS/s250MS/s500MSa/s1GSa/sHorizontal Scale (s/div)5ns/div~100s/div, step by 1~2~5 2ns/div~100s/div, step by 1~2~5 Rise Time≤14ns≤7 ns≤5.8 ns≤3.5 nsRecord Length5K10M5M10M5MInput CouplingDC AC GNDInput Impedance1MΩ±2%,in parallel with10pF±5pF Channels Isolation50Hz : 100 : 1, 10MHz : 40 : 1Max Input Voltage400V (PK - PK) (DC+AC, PK - PK)40V (PK - PK) (DC+AC, PK - PK)DC Gain Accuracy±3%DC AccuracyAverage≥16: ±(3% reading + 0.05div) for TProbe Attenuation Factor1X, 10X, 100X, 1000XLF Respond (AC, -3dB)≥10Hz (at input, AC coupling, -3dB)Sampling Rate / Relay Time Accuracy150psInterpolationsin(x) / xInterval (T) Accuracy (full bandwidth)Single: ± (1 interval time + 100ppm × reading + 0.6ns), Average >16: ±(1 interval time + 100ppm × reading + 0.4ns)Vertical Resolution (A/D)8 bits resolution (2 channels simultaneously)Vertical Sensitivity5mV/div~5V/divTrigger TypeEdge, Pulse, Video, Slope, AlternateTrigger Mode Auto, Normal, SingleTrigger Level ±5 divisions from screen centerAcquisition ModeSample, Peak Detect, and AverageLine / Field Frequency (video)NTSC, PAL, and SECAM standardCursor MeasurementV, and T between cursorsAutomatic MeasurementVpp, Vavg, Vamp, Vrms, Freq, Period, Vmax, Vmin, Vtop, Vbase, Overshoot, Preshoot,Rise Time, Fall Time, Delay A→B↑, Delay A→B↓, +Width, -Width, +Duty, -DutyWaveform Math , ×, ÷, FFTLissajou’s FigureBandwidthfull bandwidthPhase Difference±3 degreesCommunication InterfaceUSB 2.0USB 2.0, LAN (optional)Multi-function InterfaceSignal Typesynchronized input / output, Pass / Fail , external trigger inputLevel StandardTTLPower Supply5.0V/1APower Consumption≤1.5W≤5WDimensions (W × H × D)170 × 120 × 18 (mm)190 × 120 × 18 (mm)Weight (without package)About 0.26 kgAbout 0.30 kg What's in the package : CD RomManualProbeProbe Adjust USBSilicon Gel Case
