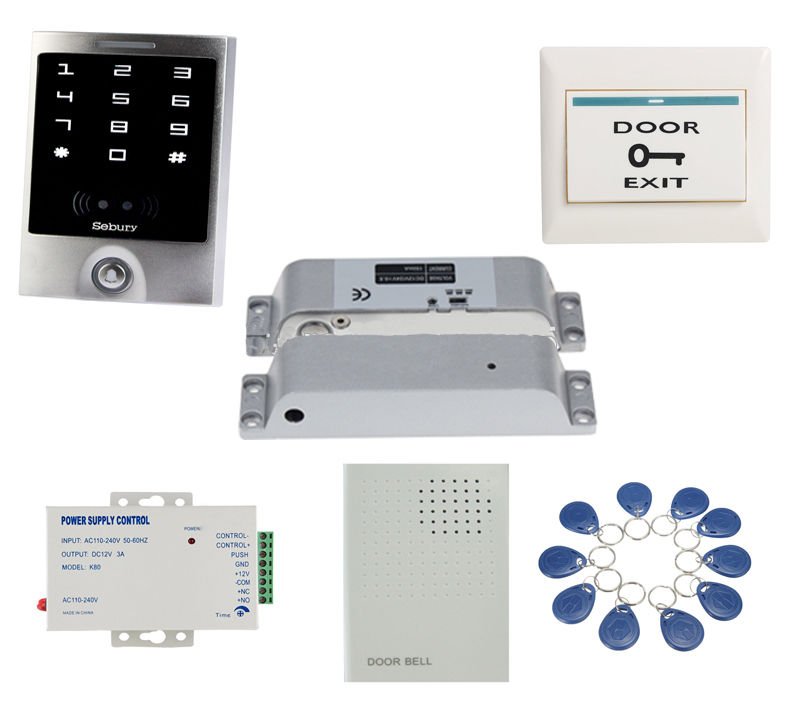

This kit is for EM reader if you need 13.56MHZ let us know, IP65 Rated, can read more cards that cannot be listed here

Sebury brand new access control/reader, keypad panel, elegant, classic and unique design, especially suit for the high-end market, also suit for different kinds of need of the customers.

Product model: sKey W-w
Product name: Standalone Access Control/Reader
Working temperature: - 40 ~ 60 ° C
Card reader type: EM、、IC、CPU
Product size: 125 * 83 * 21.7 mm

· Aluminum alloy structure, waterproof, fully potted, confirms to IP65. Keypad panel
· Built-in 125KHz (EM card) reader part: sKey W-w H&EM 13.56MHz(IC&CPU card, ISO14443A) reader: sKey W-w M
· Anti tamper, anti-vandal,
· Antistatic 15KV
· Digital backlit key. The back light can be set to Normal ON, Normal OFF or Automatic mode.
· Door bell function.
· Multi-function, can be use as reader; single door controller, anti-pass back, etc, Suitable for various occasions.

· sKey W-w H&EM: support EM card
· sKey W-w M: support IC & CPU card
· Input voltage:DC12~24V
· Idle current:≤35mA
· Reading range: 3-6cm (EM card)
2-6cm (IC &CPU card)
· Frequency:125KHz or 13.56MHz
· Wiegand input & output format: 26-37 bit
· Keypad transmit format: visual card No;4 bits or 8 bits · of single key pressing
· Dimensions: 125*83*21.7mm(sKey W-w)
158*43*21.7mm(sKey W-s)
· Operating Temperature:-40~60℃(sKey W-w H&EM)
-20~60℃(sKey W-w M)
· Operating Humidity：0~95%（non-condensing）
