NEW Baldwin Reserve DCNAPXELLTAR150 Double Cylinder locking door Handleset
from Baldwin reserve, this is super high quality, extremely high end door hardware. Extremely heavy duty. Absolutely guaranteed authentic, I am original purchaser but I got the wrong one. Originally $539. Never used, never installed, absolutely brand new.

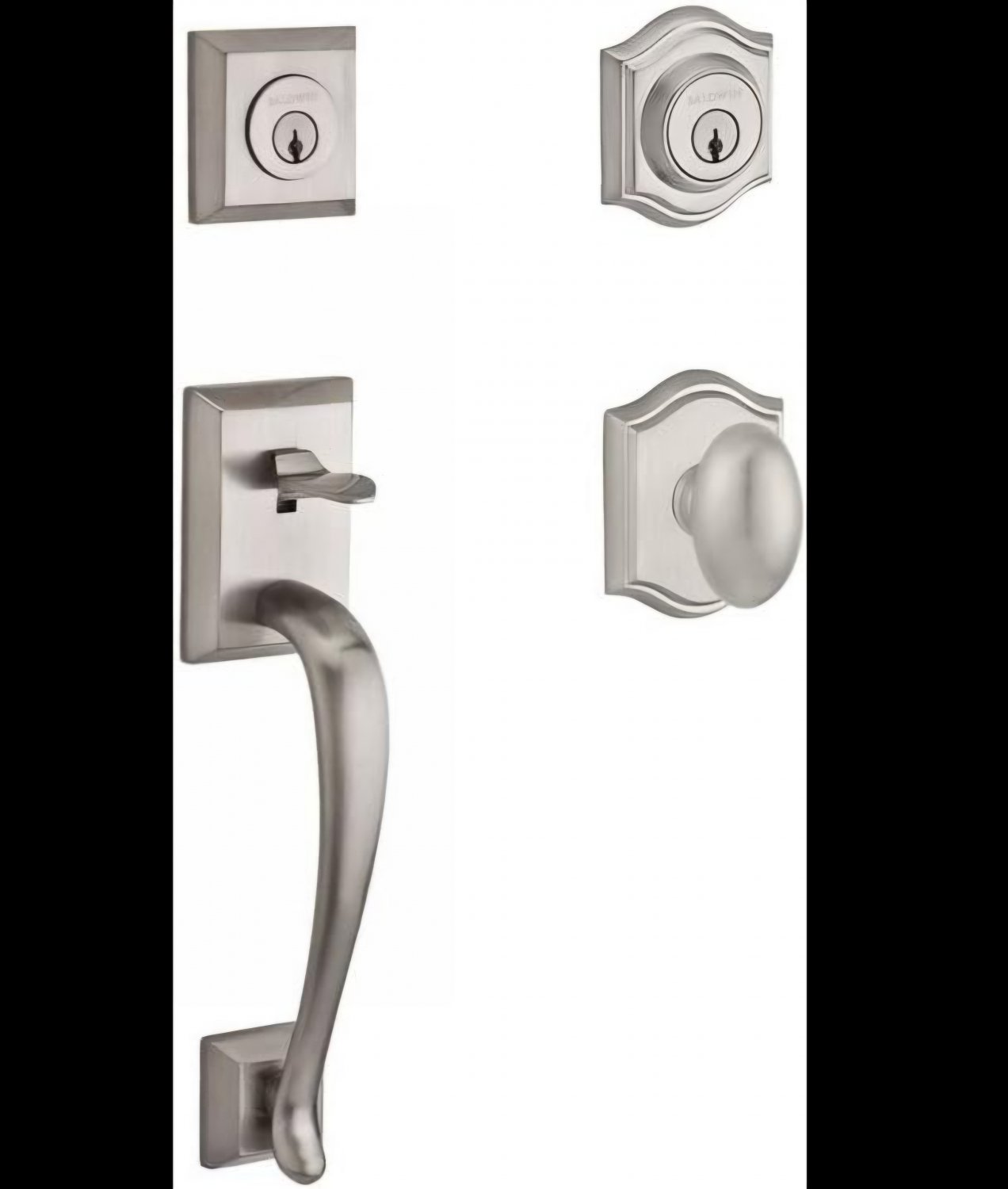

Baldwin DCNAPXELLTAR150 Reserve Double Cylinder Handleset Napa x Ellipse with Traditional Arch Rose, Satin Nickel Finish
Overall Handle Length: 11 1/2"
Exterior Deadbolt Length: 2 11/16"
Exterior Deadbolt Width: 2 11/16"
Exterior Projection: 2 8/9"
Centers (Deadbolt to Handle): Adjustable
Centers (Handle): 8 13/32"
Interior Deadbolt Length: 2 11/16"
Interior Deadbolt Width: 2 11/16"
Knob Length: 2 7/16"
Projection: 2 11/32"
Base Length: 3 7/16"
Base Width: 2 21/32"
Finish: Polished Nickel
Solid Forged Brass
Door Preparation: 2-1/8" Cross Bore for both deadbolt and grip. 1" edge bore for both grip latch and deadbolt latch. 5-1/2" center to center tubular bore.
Door Thickness: 1-3/4" to 2" standard.
Cylinder: Baldwin C-Keyway standard
Backset: Adjustable 2-3/8" or 2-3/4"
Front & Latch: Square Corner Adjustable (SL) standard.
Strike: Square Corner (SS) standard.
Latch Bolt: Deadbolt features 1" throw Brass bolt latch. Grip offers 1/2" passage/privacy function bolt.
ANSI/BHMA: Deadbolt tested to exceed ANSI/BHMA Grade 2 security.
