Charsoon Antimatter 250W 10A Balance Charger Discharger

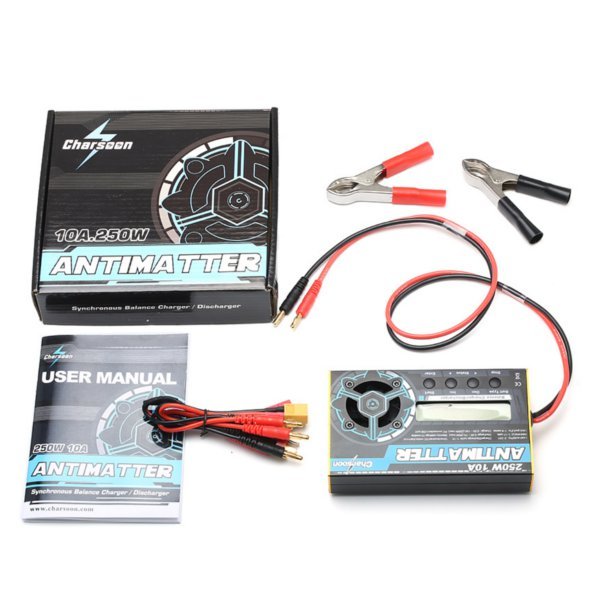

Package Includes:
1 Charsoon Antimatter 250W charger
2 Alligator Clips +/-
1 XT60 connector charge lead
1 T connector charge lead
1 JST / Futaba Charge Lead

Brief Description:
Charsoon Antimatter 250W charger is a nice powerful charger for its size. This high power balancing charger/discharger can provide up to 10A charge rates and handle up to 6S Li-po/LiFe or 17S NiCd/NiMH battery.

The Charsoon Antimatter 250W has great features such as storage charging, cyclic charging / discharging, 10 charge parameter memory and can also be set up as a convenient power supply for a hot wire foam cutter.

Product Specifications:
Brand Name: Charsoon
Model: Antimatter
Input Voltage: DC: 10-18V
Charge Current: 0.05 - 10A
Discharge Current: 0.05 - 7A
Maximum Charge Capacity: 250W
Maximum Discharge Capacity: 20W
Maximum Extern Discharge Power Capacity: 170W@25V/7A
Current Drain For Balancing LiPoly: 300mAh/cell
Battery Setup Memory: 10
Lithium (Li-poly/LiIo/LiFe) Cell Count: 1 - 6 series
NiCd/NiMH Cell Count: 1 - 17 series
Pb Battery Voltage: 2 - 24V
Dimensions: 137 x 82 x 26mm
Weight: 340g

Features:
- Original Imported Components
This charger uses original USA international rectifier and Japan rubycon,these are very reliable and  quality components.
- High Power,High Current,High-Performance Power Conversion Circuit
This charger uses advance Synchronous buck-boost DC/DC converter technology with an output conversion efficiency that can reach over 90%. This is a great power saver and reduces heat build up.
- Supports a wide variety of Batteries
The charger can be used with Lipo,Lilo,LiFe,Ni-Cd,NiMH and Pb battery.
- Data Storage
Convenient set of 10 battery profile memories that can be saved and loaded by number.
Various Charging/Discharging Settings and Cycles
For lithium batteries: Balance charging,normal charging,fast charging,storage,discharging,ext-discharging,charge/discharge cycling an battery monitoring.
For NiCd/NiMH batteries: charging-auto,charging-manual,discharging,charge/discharge cycling and forming charge.
For Pb batteries: charging and discharging.
- Unique Lithium Battery Expanding Discharging Program
When you connect the external capacity resistance,you can use it as the maximum discharge power capacity - 170W(25V/7A).
- Unique Lithium Battery Monitor Program
When you use other equipment to charge or discharge a Lithium pack,you can use the charger to monitor the per-cell voltages,battery temperature and process time. If any individual cell appears over-charged or over-discharged or the pack is too hot or the process has gone on for too long,the charge will generate an alarm sound and the related information will blink.
- Foam-Cut Drive
In this mode,the charge acts as a convenient power supply for a hot wire foam cutter.
- Battery Interior Resistance Measurement
The charger can not only measure the internal resistance of the battery pack,and also can measure the per-cell internal resistance (only available for lithium battery).
- Protection Function
The charger has protection for reversed polarity(input or output),low input voltage,battery temperature,charging capacity and time overrun.
Tech Note:
AC adapter and cord sold separately.
