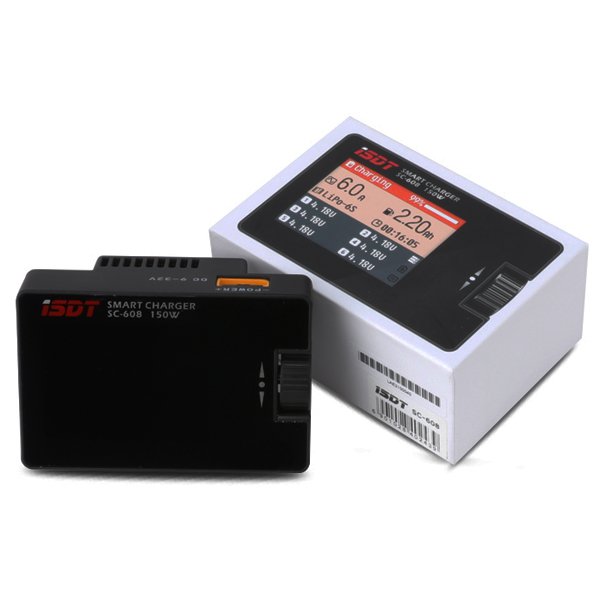

iSDT SC-608 150W 8A MINI Smart LCD Battery Balance Charger

Brief Description:
Innovative scOs User interface, simplest operating, hi-efficiency energy-converting, extremely impact.

Specifications:
Input Voltage: DC 9~32V
Output Voltage: 0~30V
Charge Current: 0.1~8.0A
Discharge Current: 0.1~3.0A
Max Charge Capacity: 150W
Max Discharge Capacity: 5W
Balancing Current: 500mA/cell
Balance Cells: 2-6S
Supported Battery Types: LiFe/Lilon/LiPo/LiHv (1∽6S)
NiMH/Cd(1∽18S)
Pb(1∽12S)
Display: 2.4" 320x240 IPS LCD
Operating Temperature: 0~40°C
Storage Temperature: -20~60°C
Dimensions: 88x58x21 mm
Weight: 110g
2.4" IPS Display
- 262K colors Hi-brightness monitor, up to 178°visible angle, brings outstanding display.
- scOs developed just for smart charging
- Colorful and bright UI design, optimized display information, makes setup & working status clearer to read.
- Quick & simple function menu design, reduces operating steps up to 80%
- Supports online update with PC, optimizes operating system, and improving user experience.
- High converting efficiency, extreme power-volume ratio
- High speed & efficiency synchronous power supply,
good heat-conduction with pure cooper, active heat-sinking with hi-speed fan,makes it possible to improve power by 300%.

Single Knob Shuttle Control
Difficult press buttons is now replaced with smooth and natural single roller shuttle control,
one touch to set, makes charging with SC-608 a joyful experience.
Great Design
With unique design, reduced charger size as small as a cigarette pack, while improveing the output capacity up to 150w att. Uses XT-60 connector for input & output, connect battery more safely. Hi-speed air-duct, makes it possible to reduce volume remarkably while guaranteeing adequate heat-sinking.
ARM 32bit Hi-speed CPU,ARM Cortex-M4,32bit ultra fast calculations,Data processing capacity enhanced by 20 times.

Operation Instruction:
Connect power supply, wait for initiation self-check to finish
Set parameters which is applicable for your battery through display and shuttle knob.
Tech. Note:
Like it's big brother ! Never insert or charge the battery before starting the charger

Ships:
USPS 3-6 business days from the U.S. to U.S. destinations only
Insured Priority Express Mail 6-12 Business Days U.K. and most other destinations.(Expedited 3-6 business Day Delivery Service is available.Email us for latest rate).

Package Includes:
1 iSDT SC-608 150W 8A MINI Smart LCD Balance Charger
1 Manual
