Metal Dome- Triangle Series- Diameter 5mm

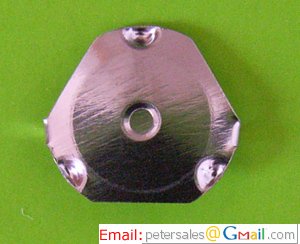

Metal Dome - Triangle Series

The Triangle Series are designed specifically for mounting on printed circuit boards. They also allow different applications including membrane, switches & tactile feeling applications.

The follows are triangle dome which diameter is 5mm, dimple. For complete product lines, contact us now!


Model No. Shape Height (mm) Force (g) Width (mm) Length (mm)

5T-200BIUY TRIANGLE 0.37 200 N N
5T-350BMWY TRIANGLE 0.45 350 N N
5T-150BFUV(0.7X0.6)-0.35 TRIANGLE 0.29 150 0.7 0.6
5T-200AIUX(0.7X0.6)-0.35 TRIANGLE 0.37 200 0.7 0.6
5T-250AIUX(0.7X0.6)-0.35 TRIANGLE 0.37 250 0.7 0.6
5T-250AKUY(0.7X0.6)-0.35 TRIANGLE 0.41 250 0.7 0.6
5T-350BKUY(0.7X0.6)-0.35 TRIANGLE 0.41 350 0.7 0.6
5T-350AKUY(0.7X0.6)-0.35 TRIANGLE 0.41 350 0.7 0.6

(the same diameter, the same feet, the same price)
The trip force and rebound force can be adjustable according to customers' requirements.

A, Mechanical properties:

Material: SUS 301, SUS 304, SSTL
Diameter: 5mm
Trip Force: 150--5600g
Click rate: 30--50%
Travel: 0.3--0.5mm
Height: 0.25�0 mm
Plating: Au/Ag/Ni optional
Life expectancy: Minimum 1,000,000 cycles
Dimensional tolerance: +/-0.1mm
Dimensional stability: +/-0.1mm
Operating condition: -30 to +105 Degrees Celsius, 10% to 80% RH
Storage condition: -40 to +85 Degrees Celsius, 10% to 80% RH

B, Primary Competitive Advantages:

1) Experienced Technical Staff
2) Good Price
3) Prompt Delivery
4) Quality Approvals
5) Service
6) Technical Know-How and Support
7) OEM is available

Customers' designs, specifications and samples are welcome. Please contact us now for more information.

Customers' samples or drawings are welcome. Please contact us today for more!
