Metal Snap Dome, metal dome - Triangle Series, 11.5-12mm
More than 10 available, 100 sold
Details
Shipping: Australia: $42.00 (more destinations)
Condition: Brand new

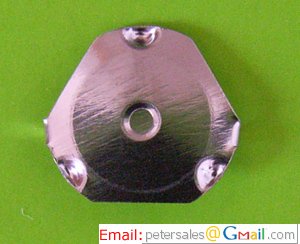

Metal Dome & Metal Dome Switches --- Triangle Series
The Triangle Series are designed specifically for mounting on printed circuit boards. They also allow different applications including membrane, switches & tactile feeling applications.
The follows are some basic Items of ours. For complete product lines, please contact us today!
Model No. Shape Height (mm) Force (g) Width (mm) Length (mm)
11.5T-350AERV TRIANGLE 0.58 350 N N
12T-1500DKUX TRIANGLE 0.76 1500 N N
12T-1500DPUX TRIANGLE 0.84 1500 N N
12T-1600DPUX TRIANGLE 0.82 1600 N N
12T-1800CQUX TRIANGLE 0.9 1800 N N
12T-2000CQWX TRIANGLE 0.9 2000 N N
12T-2800BKWZ TRIANGLE 1 2800 N N
12T-3000BMWY TRIANGLE 1.04 3000 N N
12T-3850CPWZ TRIANGLE 1.08 3850 N N
12T-5600CQWZ TRIANGLE 1.12 5600 N N
(the same diameter, the same feet, the same price)
And the Trip force and rebound/return force can be adjustable according to buyers' request.
A, Mechanical properties:
Material: SUS 301, SUS 304, SSTL
Diameter: 11.5-- 12 mm
Trip Force: 150--5600g
Click rate: 30--50%
Travel: 0.6--1.2.8mm
Height: 0.45-0.65 mm
Plating: Au/Ag/Ni optional
Life expectancy: Minimum 1,000,000 cycles
Dimensional tolerance: +/-0.1mm
Dimensional stability: +/-0.1mm
Operating condition: -30 to +105 Degrees Celsius, 10% to 80% RH
Storage condition: -40 to +85 Degrees Celsius, 10% to 80% RH
B, Primary Competitive Advantages:
1) Experienced Technical Staff
2) Good Price
3) Prompt Delivery
4) Quality Approvals
5) Service
6) Technical Know-How and Support
7) OEM is available
Customers' designs, specifications and samples are welcome. Please contact us now for more information.
Customers' samples or drawings are welcome. Please contact us today for more!
