6 In 1 Multi Metal Mini Wood Lathe Motorized Jig-saw Grinder Driller *FREE SHIP*

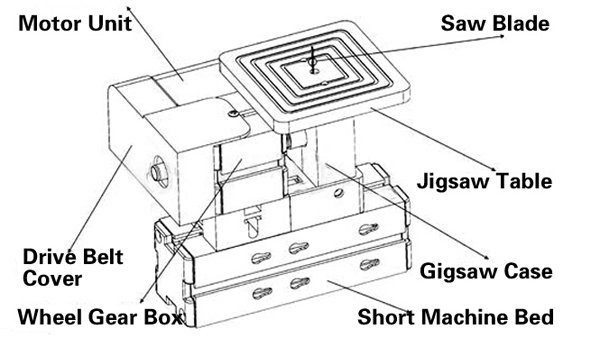

Introduction:6 in 1 multi metal mini wood lathe Machine -enjoy the joy of creation with "Transformer"6 in 1 multi metal mini wood lathe not only has single unit, such as Jig-saw, grinder, Driller,wood lathe, metal lathe, Miller, but also has the 6 in 1 combined set. Base is made of advanced aluminum alloy, and it's durable and not deformed. This is really a good tool.6 in 1 multi metal mini wood lathe can make up of : 1) Jig-saw 2) Grinder 3) Driller 4) Metal lathe 5)Wood lathe 6)MillingSpecification:MaterialCarbon steel, Aluminum, ABSHeadstock speed2,000rpmMotor inputDC12VMax. Cutting diameter45mm(bigger diameter is possible with intermediatepiece)Center distance135mm(with accessories extra long machine bed can longer to 360mm)ColorBlack + RedRecommended types of woodLim wood, birch, maple, pear tree, cherry tree (medium hard), beech tree, oak (hard).Scope1, Canprocess integrated circuit, acrylics, wood, plastic, gold, silver, copper, steel, aluminum, and so on.2, Every suitable chisel and gouge can be usedPanel sawsTechnique Data:1) Motor speed: 20,000rpm2) Headstock speed: 2,000rpm3) Support power: 14.5VDC/2A/29W, Switching Adapter input 100V-240V4) Table size: 90 x 90mm5) Stroke of the jigsaw: 4mm6) Material: Carbon steel, Aluminum, ABS7) Max. thickness of cut: hardwood: 4mm, plywood: 7mm, softwood: 18mm, sheet metal: 0.5mm, plexi-glass: 2mm8) Maximum measurements on 3D (L/W/H cm): 15/10/149) Net weight: 0.72kg10)It is specially designed that it is very safe when operating.GRINDER Technique Data: 1) Motor speed: 20,000rpm 2) Headstock speed: 2,000rpm 3) Motor input: 14.5VDC/2000mA 4) Material: Carbon steel, Aluminum, ABS 5) Can sanding paper: diameter 49mm, grain 100 6) Can process everything that is used in model making 7) Maximum measurements on 3D(cm L/W/H):28/5/10 8) Net weight: 0.75kgDRILLERTechnique Data:1) Motor speed: 20,000rpm2) Headstock speed: 2,000rpm3) Motor input: 14.5VDC / 2000mA4) Slide travel: 50 and 20 respectively5) Stroke: 25mm6) 8 collects from: 0.5 to 6 mm7) Table size: 123 x 100mm8) Working radius (distance between drill and machine bed): 71mm9) Material: Carbon steel, Aluminum, ABS10) Can process soft-aluminum, brass, copper, wood, plastics, other soft, colored and precious metals11) Maximum measurements on 3D(cm L/W/H): 15/15/2812) Net weight: 1.46kgMillerTechnique Data:1) Motor speed: 20,000rpm2) Headstock speed: 2,000rpm3) Motor input: 14.5VDC / 2000mA4) Slide travel: 30 and 50mm5) Collets from 0.5-6mm milling cutter6) Vice capacity: 25 x 25mm7) Material: Carbon steel, Aluminum, ABS8) Can process hard wood strips (beech-tree, nut-tree), wooden bars (max. 20mm diameter)or plastic and soft metal.9) Do not touch the turning tools, it is very dangerous10) Maximum measurements on 3D(cm L/W/H): 28/18/1511) Net weight: 1.45kgWood LatheTechnique Data:1) Motor speed: 20,000rpm2) Headstock speed: 2,000rpm3) Motor input: 14.5VDC / 2000mA4) Max. Cutting diameter: 45mm (bigger diameter is possible with intermediatepiece)5) Center distance: 135mm (with accessories extra long machine bed can longer to 360mm )6) Material: Carbon steel, Aluminum, ABS7) All types of wood (also hard wood) can be processed8) Recommended types of wood: Lim wood, birch, maple, pear tree, cherry tree (medium hard), beech tree, oak (hard)9) Every suitable chisel and gouge can be used10) Maximum measurements on 3D(cm L/W/H): 28/10/1011) Net weight: 1.28kgMetal latheTechnique Data:1) Motor speed: 20,000rpm2) Headstock speed: 2,000rpm3) Motor input: 14.5VDC / 2000mA4) Tree 3-jaw chuck (self-centering)5) Max. Cutting diameter: 20mm(bigger diameter is possible with intermediatepiece)6) Center distance: 135mm(with accessories extra long machine bed can longer to 360mm)7) Material: Carbon steel, Aluminum, ABS8) Can process soft-aluminum, brass, copper, wood, plastics, other soft, colored and precious metals9) Maximum measurements on 3D(cm L/W/H): 28/10/1010) Net weight: 1.35kgWarning:6-in-in Functions: Milling / sawing / turning lathe / sanding / drilling / wood turning lathe6in1multimetalminiwoodlathe is possible to assemble 6 different types of machine, Each machine can cause severe injures if handled improperlyThe machines are supplied with sharp tools, handle these with caution to avoid injuryThe workpiece may fly out of the chuck when being machinedAlways make sure that the tool and workpiece are each properly secured.Use protection goggles when operatingNever touch the revolving workpiece with any part of your bodyKeep hair and clothing well away from moving partsPropulsion is furnished by a 12V direct-current motorKeep working place clean and tidy, Make sure the assembly of machine part is done correctlyNever connect the transformer output in parallel with other transformers! If lead, plug or case of the transformer is damaged, discontinue using the transformer immediately!Package included:1x Sticker1x Drive belt cover1x Machine bed (long)1x Counter shaft1x Motor1x Machine bed (short)1x Machine vice1x Intermediate piece (U10)1x Intermediate piece (U11)1x Lever for drilling1x Screwdriver1x Small Slide (U3)1x Small Slide (U5)1x Tailstock1x Big Slide6x Collets (0.5-6mm)1x Three-jaw chuck1x Jig-saw casing1x Jig-saw table1x Gage1x Jig-saw base2x Jig-saw cap2x Screw (2.2 x 13mm)2x Saw blade1x Eccentric1x 3.5mm Brass collet1x Fixation of turning tool1x 12V Transformer1x Instructions in 6 language evrika33 store
