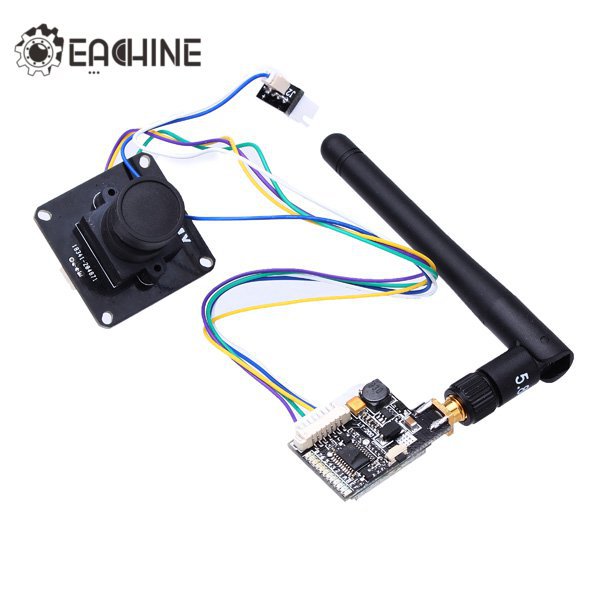

Eachine 700TVL 1/3 Cmos FPV 148 Degree Camera w/32CH Transmission

Click here for Review ofEachine 700TVL 1/3 Cmos FPV 148 Degree Camera Module w/32CH Image Transmission(or youtube.com/watch?v=RXSPr9MjpqU&feature=youtu.be)Description:Brand Name: EachineItem Name: 700TVL 148 degree Camera module with transmitterSpecification of camera:Type:PAL / NTSC(free switch, please note that you need to turn off the electricity before switching or it may be failed.)Power Supply: 3.6-5.5V (powered by image transmission)Power consumption: 60mA@5VSensor: 1/3” CMOSResolution: 700TVLFOV: 160°Lens: 2.6mm IR coatedOperating temperature: -20°C - 70°CCamera Size: 32 x 32 x 23.5mmLens Size(Length x Diameter): 15.3mm x 14mmWeight: 12gUsage: Compatible with general 5.8G transmitter160°FOV diagonal, 148°horizontal view angle (ideal for fixed camera)Debuged for FPV flySpecification of image transmission:Item NO.: LT200Modulation mode: FMSupported video format: NTSC/PALOutput impedance: 75 OhmOutput signal Strength: 23~24dBm.Output power: 200mWOperating channel: 32CHOperating voltage: 7V - 24VOperating current: 190mAOperating temperature: -10~85Sound carrier: 6.5MHzAntenna connector: RP-SMA maleSize: 38mm x 22.5mm x 6mmWeight: 6g(without antenna)Video band width: 0~8.0 MHzVideo input level: 0.8~1.2 Vp-pVideo input impedance: 75 OhmAudio input level: 0.5~2.0 Vp-pAudio input impedance: 10K OhmTransmitter frequency: 5645-5945MHz with 200mW power outputTransmitting distance > ~1500m (open area)Note: This Eachine 700TVL 1/3 Cmos FPV 148 Degree Camera supports 11.1V and the 32CH Transmission supports 7V - 24V. After testing, both of them in 11.1V will be the best if used as a set.Frequency TableFrequency Band A58655845582558055785576557455725Frequency Band B57335752577157905809582858475866Frequency BandE57075685566556455885590559255945Frequency BandF57405760578058005820584058605880Feature:With 1/3'' CMOS sensorWith lens cap, well protecting the lens.Performance rivals CCD. Nice quality low cost.Evening low light performance as excellent as highlight during the day.Imaging parameters and the wide angle rigorous debugging for FPV.Special cable connected the camera to image transmission, very convenient and concise.Super lightweight, ultra-low power consumption, suitable for RC multicopter.Can be mounted on frame, compatible with most of the 250mm frame.Image settings have been FPV tuned through hours of flight testing to ensure great performance in challenging lighting conditions (no problem to fly in low afternoon sunlight).Low power and light weight make this camera a perfect choice for smaller aircraft. Come with tiny 200mW 32ch FPV professional video transmitters.Compatible with ImmersionRC Boscam, Foxtech and other generic brand FPV receivers within the same frequency range.Package Included:1 x Eachine 700TVL 148°camera1 x 5.8G image transmission1 x Antenna(2db)1 x 5P Cable1 x Manual<img src="http://ti2.auctiva.com/web/aswCredit.gif" border="0"><br><a href="http://www.auctiva.com/?how=scLnk1" target="_blank"><img src="http://ti2.auctiva.com/images/sc1line1.gif" border="0"></a><div style="text-align:center"><img src="http://ti2.auctiva.com/sw/java.gif" border="0"><br><table align="center"><tr><td><a style="text-decoration:none" href="http://emporium.auctiva.com/evrika33" target="_blank"><img src="http://ti2.auctiva.com/sw/browse1.gif" border="0"></a></td><td height="23px" valign="middle" align="center"><font face="arial" size="2"><b><a href="http://emporium.auctiva.com/evrika33" target="_blank">evrika33</a> Store</b></font></td></tr></table></div>
