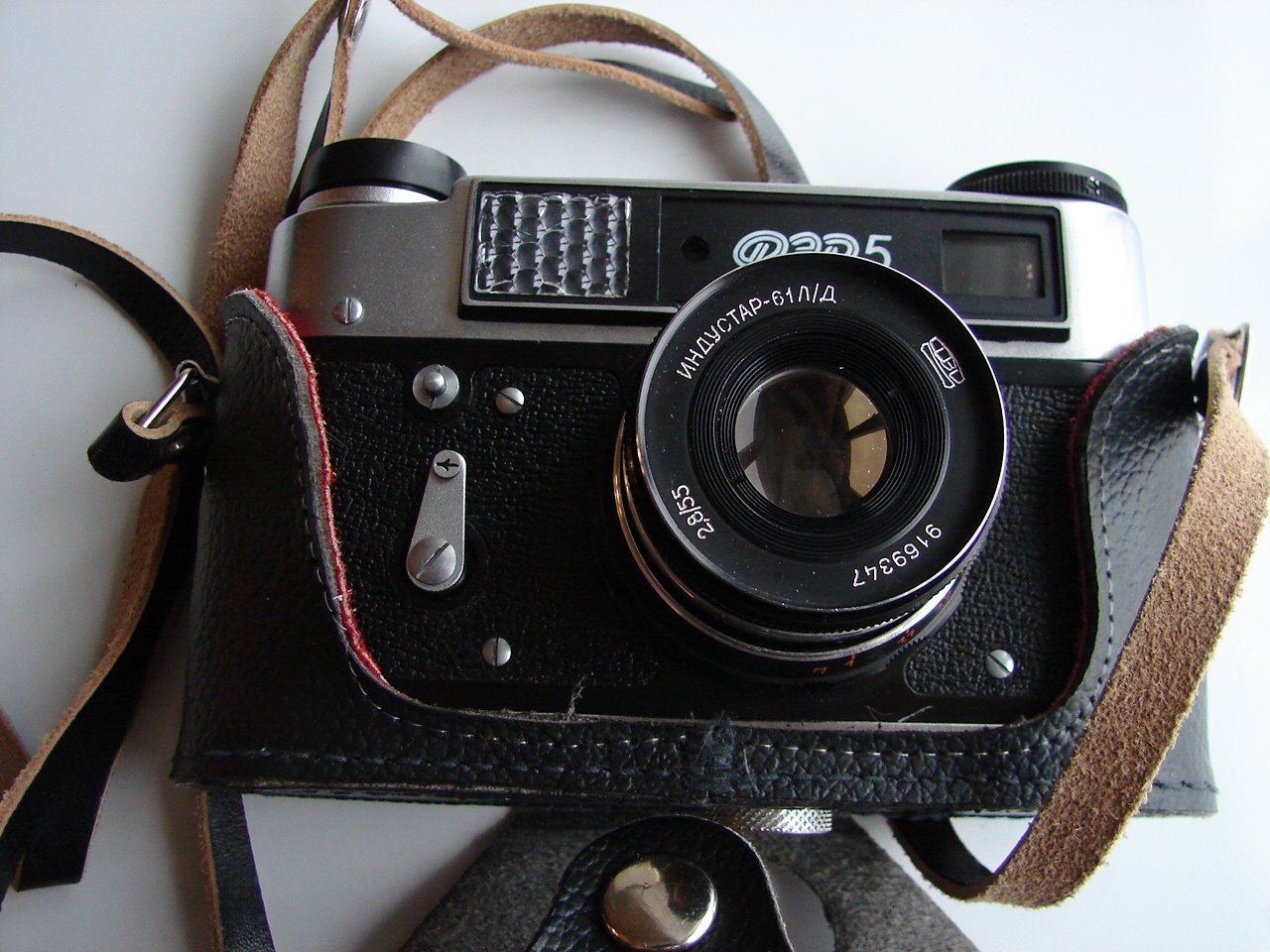

Vintage camera FED-5-1980s

Fed-5 - Soviet rangefinder camera, the second model of unified series of the same name, which also included the camera "Fed-5B" and "Fed-5C".

Produced by Kharkiv production engineering Association "Fed" from 1977 to 1990.

Frame size - 24/36 mm. The use of a two-cylinder cassettes with sliding slit is valid.
The case is metal, with a removable back panel.
Trigger the shutter and film rewind. The trigger has transport and working positions. Rewind the film pull-out cylinder head.
The frame counter is automatically reset when removing the rear wall of the camera.
Standard lens - "industar-61 L/D 2,8/55, the enlightened one.
Connecting dimensions for nozzles:
smooth - 42 mm;
threaded (filters) - M40,5?0.5 mm.
Photographic shutter provides the following excerpts: 1/500, 1/250, 1/125, 1/60, 1/30, 1/15, 1/8, 1/4, 1/2, 1 with and "B" - long-term aging.
The viewfinder is rangefinder-coupled, base rangefinder 43 mm. There is a mechanism diopter correction (within ± 2 diopters).
Sync "X", the shutter sync speed is 1/30 or more. On cameras of the early issues were absent from the Central sync.
Built-in non-coupled selenium exposure meter.
The timer is mechanical.
Thread tripod socket is 1/4 inch.
