$4.20 Add to Cart

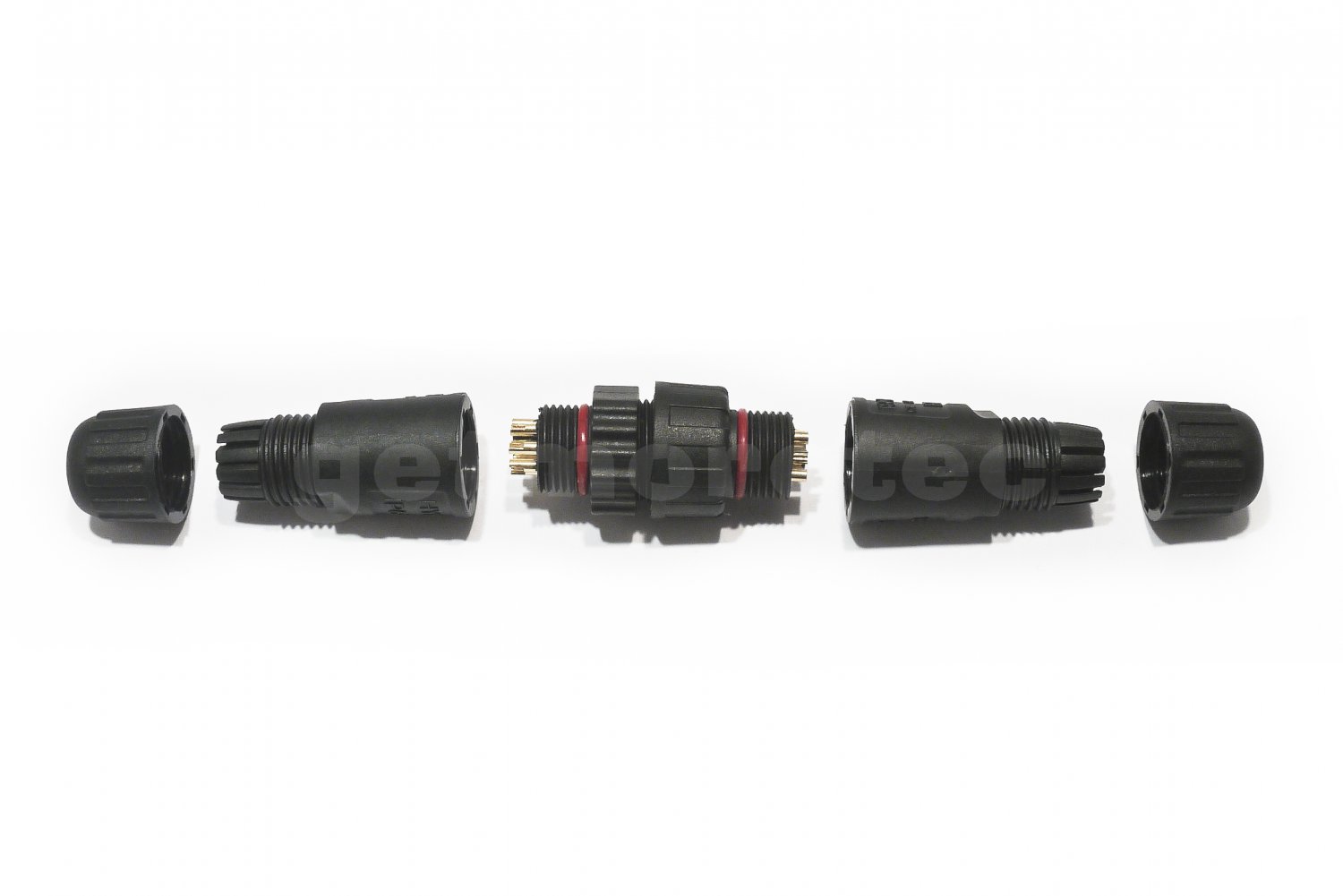

1 pc 190A 8-Pin Waterproof Electrical Deck Plug Circular Cable Connector

1 pc 190A 8-Pin Waterproof Electrical Deck Plug Circular Cable Connector

Only 1 available

Details

Shipping: Australia: free (more destinations)

Condition: Brand new

*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.


1．Design Structure: Assembled
2．Case Color: Black
3．Case Shape: Straight Line
4．Number of Cores: 8pin
5．Wiring Mode: Soldering
6．Waterproof Rating: IP68
7．Weight: 20g

Material Description
● Shell material：Flame-resistant /anti-UV nylon（PA66）UL94V-0
● Pin:Gold-plated brass / Jack:Gold-plated phosphor bronze / Seal-O-Ring：NBR
● Times of plug / unplug：Above 3000 times
● ROHS Environmental protection material According to UL standard

Performance
● Dielectric resistance：500 MΩ at DC500V
● Pin diameter：1.0mm
● Cable OD Rating：OD≦7.0mm
● Current Rating：3A
● Voltage Rating：250V AC
● Cable Acceptance：4.0-7.0mm
● Standing voltage：3KV Under normal temperature
● Operating temperature：―40℃~+105℃
