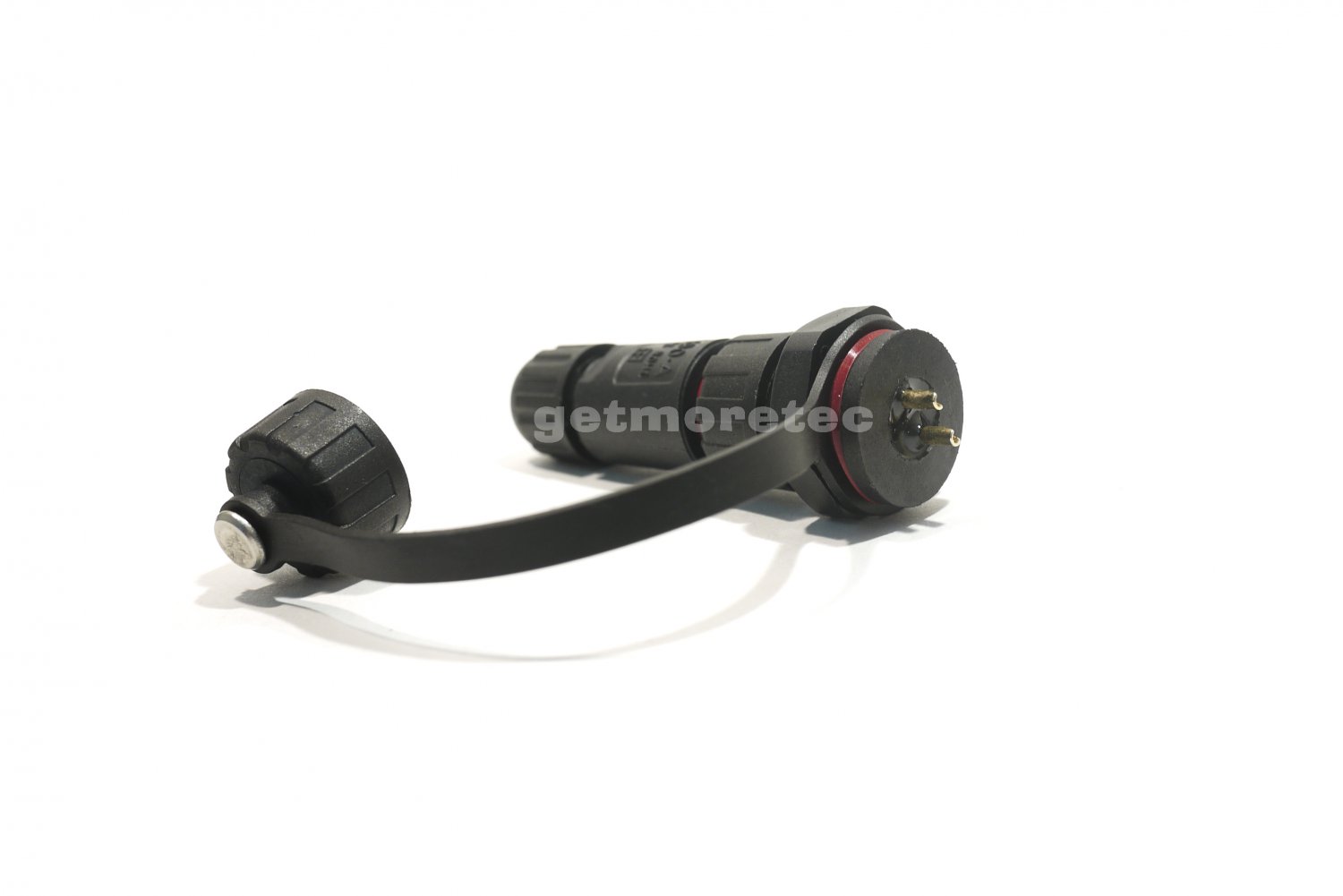

1pc 190A 2P IP68 Soldering Type Waterproof Electrical Connector Panel Mount w/Cap

More than 10 available, 2 sold

Details

Shipping: Australia: free (more destinations)

Condition: Brand new

*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.

Description

1．Design Structure: Assembled
2．Case Color: Black
3．Case Shape: Straight Line
4．Number of Cores: 2pin
5．Wiring Mode: Soldering
6．Waterproof Rating: IP68
7．Version: Panel Mount
8．Weight: 20g

Material Description
● Shell material：Flame-resistant /anti-UV nylon（PA66）UL94V-0
● Pin:Gold-plated brass / Jack:Gold-plated phosphor bronze / Seal-O-Ring：NBR
● Times of plug / unplug：Above 3000 times
● ROHS Environmental protection material According to UL standard

Performance
● Dielectric resistance：500 MΩ at DC500V
● Pin diameter：1.5mm
● Cable OD Rating：OD≦7.0mm
● Current Rating：10A
● Voltage Rating：250V AC
● Cable Acceptance：4.0-7.0mm
● Standing voltage：3KV Under normal temperature
● Operating temperature：―40℃~+105℃
