$18.12 Add to Cart

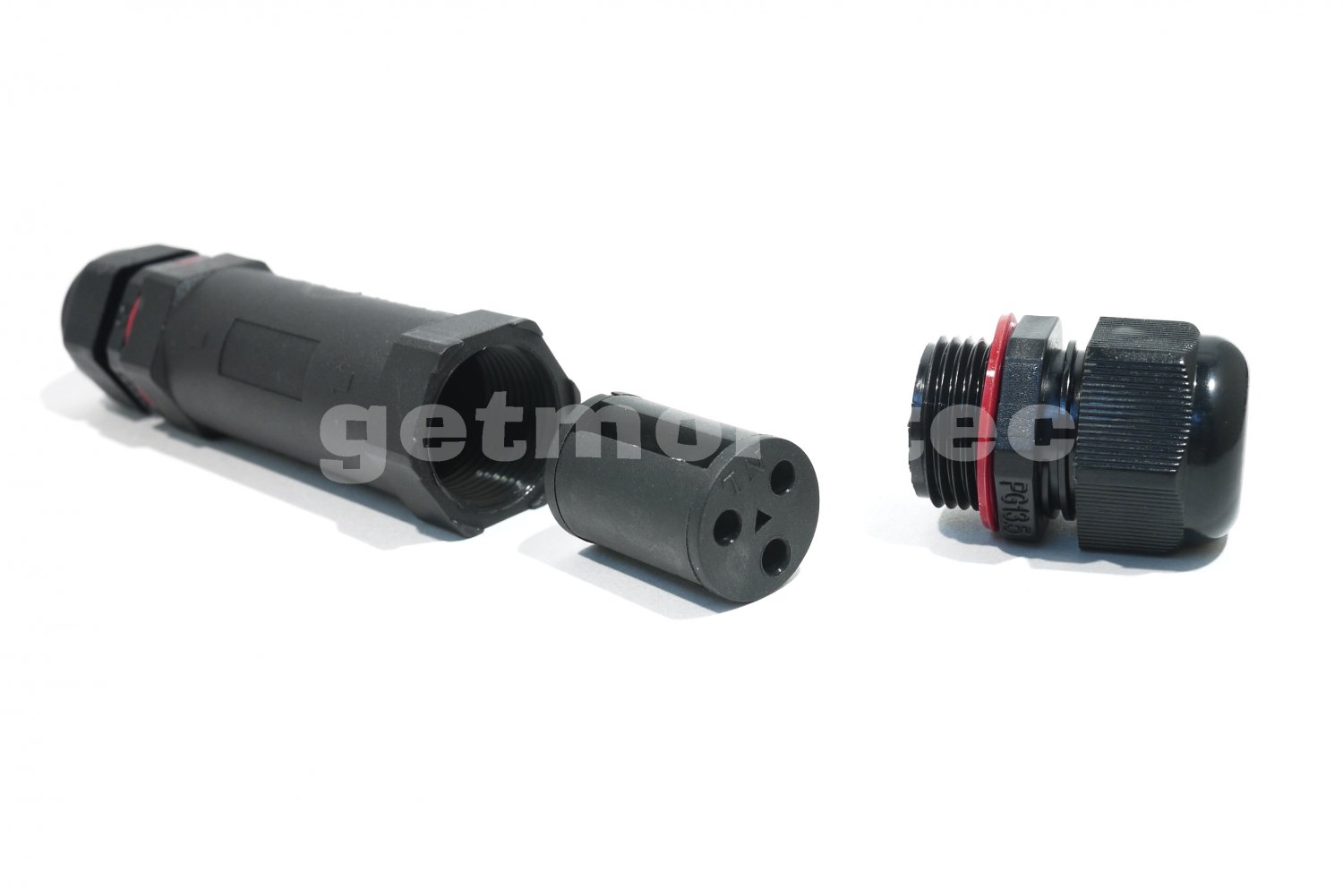

3 pcs HYF - PG13 IP68 Waterproof Connector 3P 20A

More than 10 available

Details

Shipping: Australia: free (more destinations)

Condition: Brand new

*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.

Description

1．Design Structure: Assembled
2．Case Color: Black
3．Case Shape: Straight Line
4．Number of Cores: 3pin
5．Waterproof Rating: IP68
6．Weight: 40g

Material Description
● Shell material：Flame-resistant /anti-UV nylon（PA66）UL94V-0
● Cable Type : PVC, Rubber, Silicon
● Electricity : Brass plates with Nickel
● Seal-O-Ring：NBR
● ROHS Environmental protection material According to UL standard

Performance
● Dielectric resistance：500 MΩ at DC500V
● Cable OD Rating：OD≦11.0
● Current Rating：20A
● Voltage Rating：250V AC
● Standing voltage：3KV Under normal temperature
● Operating temperature：―40℃~+105℃
