$12.08 Add to Cart

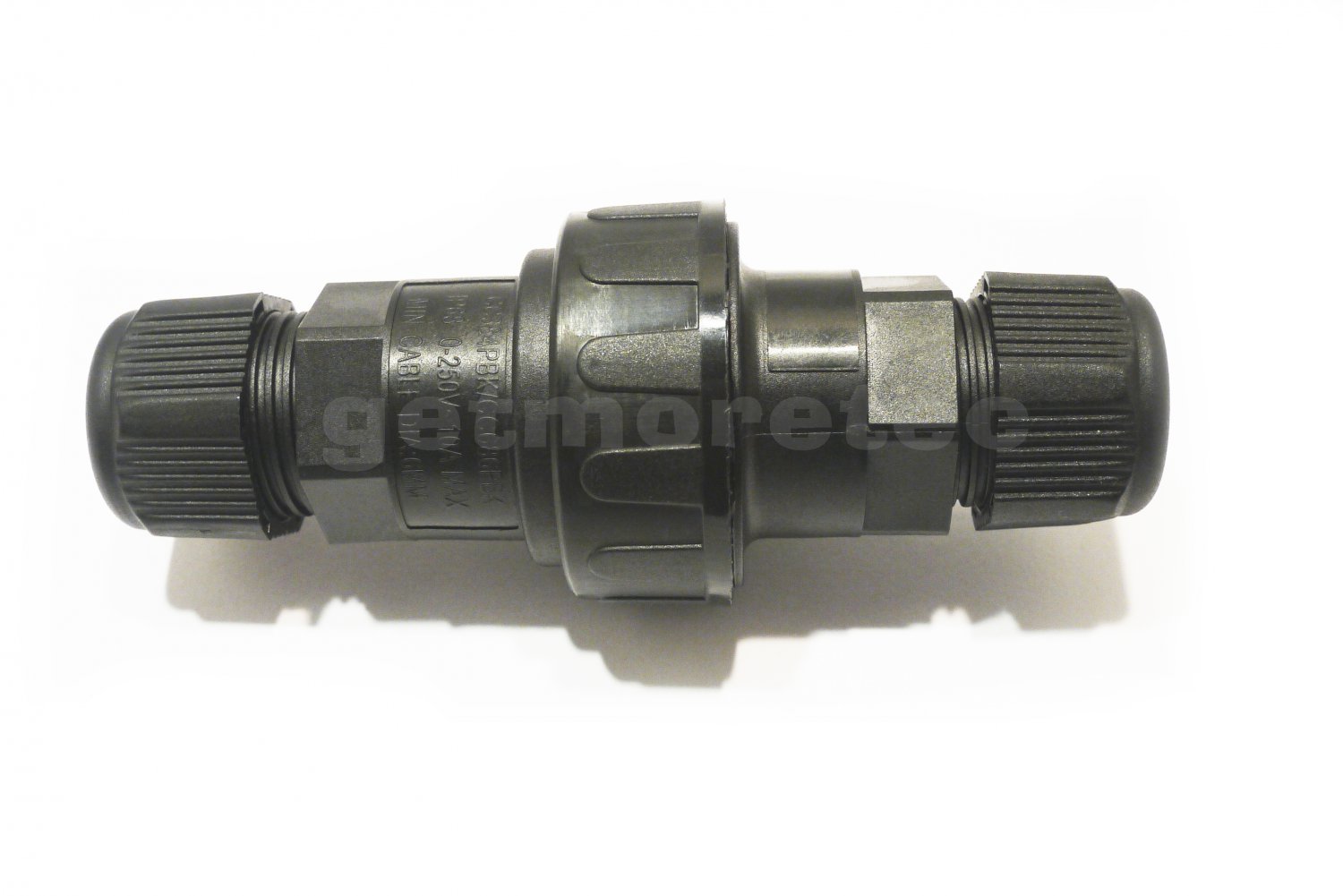

1 pc HYF-686A-4P IP68 Waterproof Connector 15A

More than 10 available

Details

Shipping: Australia: free (more destinations)

Condition: Brand new

*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.

Description

1．Connector Gender: Female /Male
2．Design Structure: Assembled
3．Case Color: Black
4．Case Shape: Straight Line
5．Number of Cores: 4pin
6．Wiring Mode: Compression
7．Waterproof Rating: IP68
8．Weight: 105g

Material Description
● Shell material：Flame-resistant /anti-UV nylon（PA66）UL94V-0
● Pin:Gold-plated brass
● Jack:Gold-plated phosphor bronze
● Seal-O-Ring：NBR
● Times of plug / unplug：Above 3000 times
● ROHS Environmental protection material According to UL standard

Performance
Dielectric resistance：500 MΩ at DC500V
Cable OD Rating：OD≦14.0
Cable Acceptance：6.0-14.0mm
Current Rating：15A
Voltage Rating：250V AC
Standing voltage：3KV Under normal temperature
Operating temperature：―40℃~+105℃
