Specifications:

Software Requirement:

* Require Windows 2000 or Windows XP (NTFS file system is recommended)
* Windows directX8.0 or 8.1
* Latest graphic card (VGA) driver

Hardware Requirement:

* Intel's CPU is recommended
* Mainboard based on Intel's chipset is recommended
* At least 256MB of RAM is recommended
* At least 64M of RAM for graphic card (VGA) ATI Redeon 7000 or above and Nvidia Geforce series is recommended
* 80- 120G or above hard disk is recommended

Hardware Recommendation: 　

* CPU:
o Pentium III 450 or above
o Pentium 233MMX or above
* Motherboard:
o Intel 82440 GX (or BX) based with adequate number of PCI slot or equivalent (see Note iii)
o No special preference
* Memory:
o 128MB SDRAM (PC 100)
o 64MB SDRAM
* Display:
o SVGA display with 1024x768, 16M color
o SVGA display card
* Network:
o 10/100Base T or Modem
o 10/100Base T or Modem
* Harddisk:
o 10.2GB
o 4.3GB
* Operating System:
o Window 98 Plus IE 5.0 or above
o Window 98 Plus IE 5.0 or above

The Recording Capacity of DSR:

* DSR use advanced wavelet compression technology for real time video compression
* The average compressed frame size of a CIF resolution image (384x288 PAL, 320x240 NTSC) is about 8 Kbytes. And the average frame size of a QCIF resolution image (192x144 PAL, 160x120 NTSC) is about 3 Kbytes
* The maximum frame rate is 30 fps for NTSC system, and is 25 fps for PAL system
* However, when frame rate above 8 fps, the video will perform as real time like video
* The basic DSR configuration provides a 6GB hard disk for video recording
* Following is the equation that can be used to estimate the recording time of DSR

Digital Video Surveillance Recording:

* The completed system* provides the following features
* Digital multi-channel video recorder and multiplexer
* Support up to 16 camera inputs with multi display modes
* Support both PAL and NTSC standards
* Easy to use graphic user interface
* Full resolution video real-time display (768x576 PAL, 640x480 NTSC)
* Real-time digital video compression
* Simultaneous playback, recording and live display
* Programmable timer recording
* Alarm triggered recording
* Motion detection recording
* Pre-alarm recording
* Easy to expand by software upgrade and system integration
* Multilingual capability
* Pan/ Tilt/ Zoom control of the connected cameras (optional)
* The completed system provides platform for system integration with other security control systems, such as access control, fire alarm or automation, ID/ smart card system, intrusion detection, etc.
* The product is designed to run on a Pentium II or above PC with a Windows operating system
* The product (base and remote client package) is consisted of video capture board (s) with compression, plus the application software and user manual

Package Included:

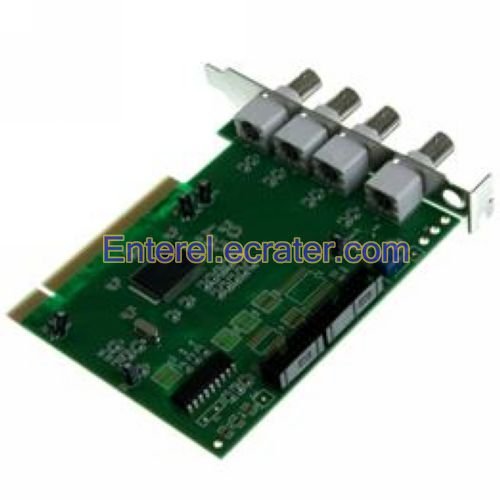

* 1 x 4 Channel DVR Card Digital Video Surveillance Recording System
* 1 x Driver CD
