Specifications:

* Video Input: 4 channels
* Frames Rate: 100pfs(PAL)/120fps(NTSC)
* Compression: H.264/MPEG4
* File Size: 80~200M/H/C
* Multiple Cards: 1~6 Per PC(24CH)
* Display Resolution: 640 x 480,352 x 288,320 x 240
* Record Resolution: 640 x 480,352 x 288,320 x 240
* PTZ: Control from local or remote, support protocol of popular high speed dome or speed dome
* Remote: TCP/UDP protocol, IE viewing available. Connect to 256K-2M internet bandwidth can reach the effect of lan without occupying CPU resource
* Recording Mode: Manual, continuous, schedule, event (senor, motion detection) and multi-zone motion detection setting simultaneity available
* Playback: Multi-channels playback simultaneously; digital zoom, capture and print or backup the picture of the video files

Features:

* Run under Windows xp OS
* Techwell 6802 chipset 10-bit ADCs image quality
* Lightning-proof design
* Different card could mix together ,7130,6802 chipset could mix to work together at the same time
* Adjust the resolution for any channel, and can be applied for others channels
* Snapshot the dynamic picture or static picture while playback
* Display, record, playback, control, backup can be done simultaneously
* Snapshot picture for single frame or snapshot picture for all frames while live displaying
* Motion detection, alarm function
* Support different types of high speed camera, PTZ controller and alarm decoder
* High quality network transmitting function
* Remote view, playback, PTZ control, through wan or lan
* Search by the date, time, location, alarm period, snapshot pictures
* Complete automatically operation, user can set record schedule for each camera within all the periods of each week; and the system will record according to the schedule
* User can set alarm activation schedule for each alarm sensor within all the periods of each week, the alarm sensor will activate according to the schedule
* User can set motion detection for each camera within all the periods of each week, and the motion detection will activate according to the schedule
* Circularly switch function; can set single channel or multi channels to switch circularly
* User-friendly interface, it is easy for user to operate it
* The system will show hard disk is full if the hard disk will up to the capability






How to Select a Video Capture Card:

* Determine the type of PC expansion slot that you will plug your video capture card into your computer. The three major PC adapter interfaces for video capture cards are PCI, PCI-Express (or PCI-e), and USB. This is important because you will need to see which one will fit your PC. If you are not sure use the reference link at the end of this article to motherboards.org about PC Expansion Slots
* Determine the type of video format that the video capture card will be receiving. The two standard video formats are Standard Definition (SD) and High Definition (HD). Video capture cards vary in the types of definition as well as the format of HD content. Also some video capture cards do hardware encoding which formats the video content into PC readable files. Check if the video capture card is software or hardware encoding as this can affect your PC system resources such as CPU and Memory requirements
* Choose the number of tuners for the video capture card. Most of the early video capture cards could only capture one video source at a time. Now manufacturers sell dual tuners or multi-tuner video capture cards that allow more than one video source to capture per PC expansion slot
* Other media type considerations. Some video capture cards can take FM audio signals which allow to capture streaming audio. Also another consideration are remote controls that allow to change channels with your video capture card. Make an assessment of all of your requirements before purchasing

Package Included:

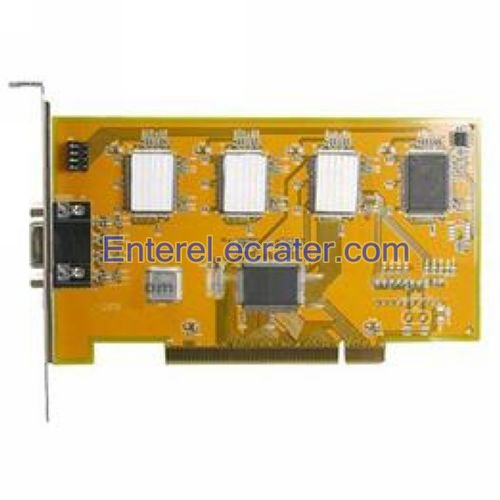

* 1 x 9 Bit DVR Card
