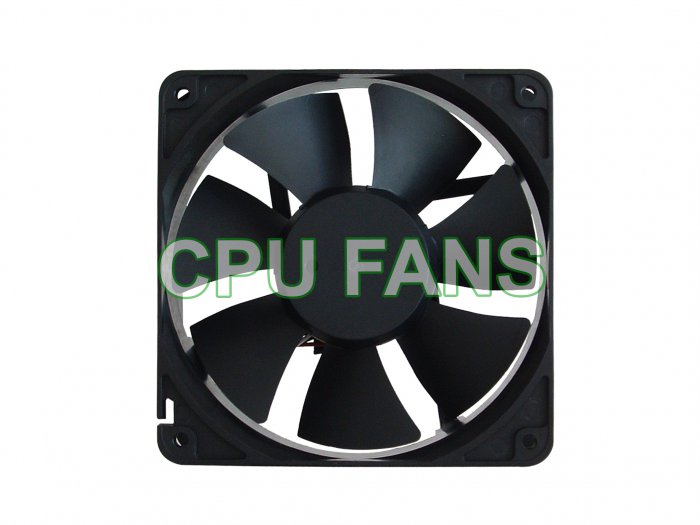

Dell Fan PowerEdge 1600SC 5W190 | Replacement Rear Panel Cooling Fan 120x38mm Dell 3-pin

New Dell PowerEdge 1600SC Rear Panel Cooling Fan, 120mm x 38mm, Dell 3-pin latch plug connector supersede and replaces Dell P/N: 5W190 with more consistent airflow. This fan primarily used in Dell server applications.

JMC a manufacturer of cooling fans for Dell PowerEdge 1600SC computers. This is a Rear Panel mounted Cooling fan, 12 Volt, Dual Ball bearings, 120mm x 38mm with airflow of 123 cfm and designed for use in Dell servers. The fan has tachometer output reporting capability and a proprietary Dell 3-pin plug connector.

NOTE: This fan has a different wiring configuration than the typical Dell 3-pin plug connector. See photos. Please verify wiring, fan application and check for compatibility before purchasing.

Restore your Dell PowerEdge 1600SC computer to its original condition with the new Rear Panel cooling fan.



Specifications:

. Condition: New
. Mfr. JMC
. Size: 120mm x 120mm x 38mm
. Type: Tach Output
. Rated Voltage: 12V
. Operating Voltage: 10.8 ~13.2VDC
. Rated Current: 0.80A
. Input Power: 9.60W
. Speed: 3500 RPM
. Air Flow: 123.0 CFM
. Noise Level: 49.0 dBA
. Bearing System: Dual Ball Bearing
. Wire length: 12"
. Connector: 3-pin/3-wire latch plug connector
