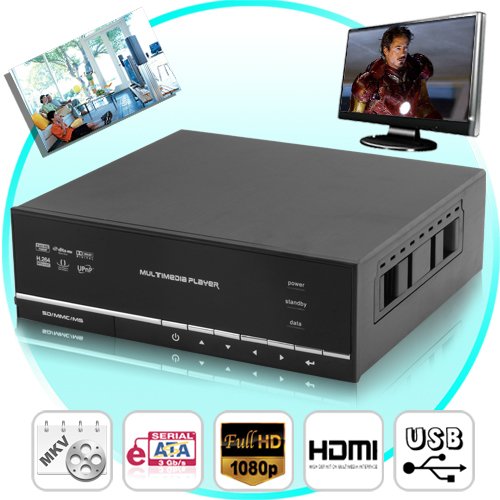

Full HD 1080p Media Centre - Bit Torrent Ready + HDD Enclosure

This is the ultimate home entertainment system. It is the think tank of all media tanks. Powered by a Realtek 1073 chip and housed in an aluminum casing. This HDD multimedia player handles up to a 2TB HDD hard disk drive and supports several display resolutions that include 720P, 1080i, 1080p at (1920X1080).

Although this 1080p Media Carrier is designed to allow users to implement a much more efficient media system in their homes, it is also designed to meet the user's expectations in providing a simpler and convenient method of accessing the internet directly without the need of a computer.

This Media Centre enables the user to access websites such as Youtube and RSS news feeds directly on their LCD TV with ease, speed and efficiency, thanks to the onboard Ethernet port which allows user to connect this Media Centre directly on to the internet.

What is Bit Torrent? BitTorrent protocol allows users to distribute large amounts of data without the heavy demands on their computers that would be needed for standard Internet hosting. A standard host's servers can easily be brought to a halt if high levels of simultaneous data flow are reached. To learn more about BitTorrent visit [http://en.wikipedia.org/wiki/BitTorrent_%28protocol%29].

This HD 1080p HDD media centre offers a versatile infrastructure that enables the user to merge all of their precious digital contents such as music files, video files and image files onto a single location for a more enjoyable experience, and also helps users keep their files organized in this mother of all media tanks.

This media home entertainment center comes with a composite video port, component YPbPr port, HDMI port, optical fibre audio port, coaxial, 5.1 channel audio port, Stereo L-R, Multi-interface output, supports projectors and TV (AV) composite video. This media centre supports up to 15 of the most popular video and audio file formats which include MPEG, RMVB, AWV, MP4, MOV, MKV, FL, DIVX, AAC, MP3, WAV, WMA, FLAC, OGG and ASF.

This Full HD 1080p media entertainment centre comes integrated with a web server called Neighbor Web, after you've connected your the Media Carrier onto you network (LAN or WLAN), get the IP address of the player under SETUP > NETWORK menu. Then type the IP address (e.g., 192.168.3.15) in the address bar of the Internet Explore on your PC, after this step is completed,

just log in using the included user name and password that is provided in the included user manual, and access the Web server on your PC.

At a Glance...
Easy installation
Bit Torrent Ready
HD 1080p quality
Multimedia center
HDD media center
Direct internet access
File Copying function
Supports up to 2TB (HDD) hard disk drive
Supports Manual fixed IP and Auto IP configurations
Attach multiple media devices, such as UB drives, HDD and an SD card


Manufacturer Specifications

Main Function: Full HD 1080p Media Centre - Bit Torrent Ready + HDD Enclosure
Material: Aluminum Alloy Housing
Main Chip: Realtek 1073
Hard Drive Supported Capacity: 500GB, 1TB, 1.5TB, 2TB
On Board Features/Ports:
- 3.5 Inch SATA HDD Insert
- Internet LAN RJ45 port
- USB 2.0 HOST port x 2
- Memory Card slot (supports SD/MMC/MS Pro)
- USB 2.0 DEVICE port (connecting to PC)
- Composite (CVBS) A/V jack
- Component Y/Pb/Pr jack
- HDMI V1.3 interface
- S/PDIF coaxial & optical jack
Support NAS Function: Secure Windows file sharing (Samba) over the Internet
Support Wireless LAN: (802.11N)
File Systems Supported: EXT3 / FAT32 / NTFS
Data Interface: Support USB 2.0 & USB 1.1/1.0
Memory Card Reader Function: SD Card, MMC and MS
Supported Media File Formats:
- Video: MPEG, RMVB, AWV, MP4, MOV, MKV, FLV, DIVX, DAT
- Audio: AAC, MP3, WAV, WMA, FLAC, OGG, ASF
- Photo formats : JPEG, BMP, PNG, GIF
Resolution: Up to 720p / 1080i / 1080p
Video Codec’s Supported:
- MPEG-1
- HD MPEG-2
- HD MPEG-4 SP/ASP/AVC (H.264)
- WMV9 (VC-1)
- Real Networks (RM/RMVB) 8/9/10, up to 720p
Audio Codec’s Supported:
- MP2/3, OGG Vorbis, WMA , PCM, LPCM, MS-ADPCM, LC-AAC, HE-AAC, RA-Lossless
Subtitle Formats Supported: SRT
Network Feature
- 10/100Mbps Auto-Negotiation Ethernet
- Supports 802.11b/g/n WLAN, up to 300Mbps (USB Dongle Not Included)
Main Menu Icons: File Copy, Browse, Network, IMS Menu, Setup
Secondary Access Functions:
- File Copy
- Browse - HDD, USB, SD Card, DVD, Network UPNP, Play list
Network
- IMS Menu - Youtube, Podcast, Online Music, Internet Radio, RSS News, Weather
Audio Setup Options
- Night Mode - OFF, ON
- Digital Output - HDMI LPCM, HDMI, LPCM Multich, HDMI Raw, SPDIF LPCM, SPDIF Raw
Video Setup Options
- Aspect Ratio - Letter Box 4:3, Pan Scan 4:3, 16:9, 16:10
- Zoom - ON, OFF
- Brightness
- Contrast
- Hue
- Saturation
- Digital Noise Reduction - Auto, Off
- Video System: HDMI Auto, NTSC, PAL, 480p, 576p, 720p 50HZ, 720 60Hz, 1080i 50Hz, 1080i 60Hz, 1080p 50Hz, 1080p 60Hz
- SD Video System - NTSC, PAL
- 1080p 24HZ- ON, OFF
Network Setup Options
- Wired LAN - DHCP IP Auto, FIX IP (Manual)
- Wireless Setup - Infrastructure (AP), Peer to Peer(Ad Hoc), WPS(AP)
System Setup Options
- Menu Languages - English, Simplified Chinese, Spanish, French, German, Italian, Dutch, Russian, Traditional Chinese
- Text Encoding - Unicode (UTFB), (GBK), (BIG5), Western, Turkish, Central European, Greek, Cyrillic, SE European
- LOG IN Control - ON, OFF
- R/RW Auto Play
- Angle Mark
- HDD Format
- Restore Default
MISC
- Resume Play - ON, OFF
- Slide Show Timing
- Transition Effect
- Ken Burns
- Seamless Playback
- Screen Saver
- Movie Preview
Power Adapter: 110-240V input, 12V/2A output
Dimensions: 190 x 170 x 65 (mm)
Certification: CE, FCC
Manufacturers Ref: KLF753JDF08G

Product Notes

Displays RM/RMVB at 720P
Complete multimedia system
All-in-one multimedia solutions
Organizes your entire digital media contents
Solid built with SD card, x2 USB, HDMI and Ethernet ports
Access you tube flawlessly without the need of a computer
Simple slide in and out HDD hard disk drive for extra convenience
Detailed Instructions user manual provided for troubleshooting and easy installation
Supports Decoding of VC-1, MPEG1, MPEG2, MPEG4, Divx, Xvid, FLV, RM/RMVB Video Codecs
Brilliant HD output quality, & exceptionally smooth performance in ever aspect of its features and functions.
This HDD multimedia HD entertainment system is a very advanced home entertainment media center, it will add extreme value to your media center in your home

Package Contents for Model CVPN-HD04

Full HD 1080p Media Centre - Bit Torrent Ready + HDD Enclosure
A/V cable
USB cable
Remote Control
Remote Control Battery
AC/DC power adapter
User Manual (printed)
Driver CD (with User Manual)
