$161.50
On Hold

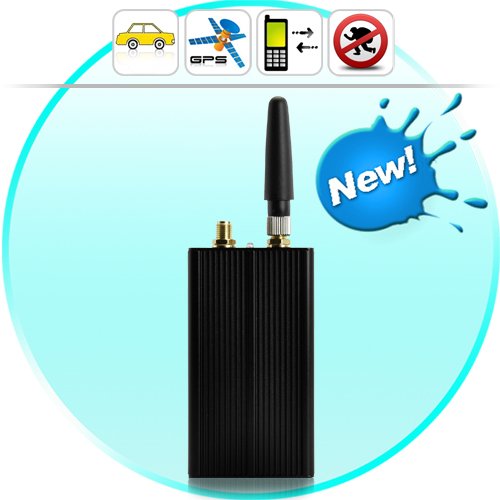

Global GPS Tracker for Cars/Motorcycle/Trucks/Scooters
More than 10 available
Details
Shipping: Australia: free (more destinations)
Condition: Brand new
*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.
CVNI-G223
Introducing the newest GPS Car Tracker for global vehicle tracking. This is one of the best car/motorcycle theft prevention and vehicle protection system available today. With convenient SMS ability and the latest GPS tracking technology, this is the ultimate safety device for your car, van, truck, motorcycle or even a mobile scooter.
So how does this Global GPS Tracker work? While consuming minimum power from automotive battery, it continuously reads its own location from low orbiting global satellites and then utilizes the GSM infrastructure operated by your cellular network provider to transmit its current location to you. The internal is built with the newest Japanese JRC GPS module, which provides high stability and ultra-sensitivity, it even comes with Quad-band Connectivity to work anywhere in the world.
Installation:
The GPS Car Tracker should be installed in a safe place either on the body of a motorcycle/scooter or inside a vehicle, at a place where it normally cannot be seen (for example, under the car seat). You also need to place a working SIM card inside the unit to be able to communicate with your cellphone in any of its quad-band frequency.
Easy to use:
All functions are controlled by sending SMS TXT to the GPS unit. For example, TXT "666" plus your password to the tracker, and it will reply with it current longitude and latitude position, as well as speed and direction, etc. There are more advanced functions such as setting up a Geo-Fense zone and phone number authorization. You can even save the command as TXT templates to save time.
Multipurpose:
This GPS Car Tracker can be used for many applications, including:
Insurance and vehicle recovery of your cars and motorcycle
Keeping an eye on seniors when they are out on their mobile scooter
Check the location of your Kawasaki or BMW to see if your kids took it out for a "little" ride
Company car and fleet management
At Glance...
Complete system integration to your vehicle
Global coverage with quad-band GSM frequency
Built-in GPS vehicle locator
Check location by SMS
Geo-fence and alarm warning
NOTE: This GSM product is compatible with the four frequencies of 850MHz, 900MHz, 1800MHz, 1900MHz. It can be used throughout the world.
Manufacturer Specifications
Primary Function: GPS Tracker for vehicle
Network: GSM
GSM Frequency: 850 / 900 / 1800 / 1900
GPS Module: JRC GPS module
GPS Sensitivity: -159 dBM
GPS Accuracy: 5 M
Time to First Fix:
-Cold status: 45s
-Warm status: 35s
-Hot status: 1s
Power Supply Voltage: 12 to 24 V
Working Temperature: -20 to 65
Humidity: 5% to 95% non-condensing
Altitude Limit: 18,000 meters (60,000 feet) max
Velocity Limit: 515 meters/second (1000 knots) max
Acceleration Limit: Less than 4g
Supported Function:
- Change Preset Number
- Change Mode
- GPS Location Request
- Set Refresh Rate
- Change Password
- Setup/Cancel Geo-Fence
- Setup Alarm
Dimension: 95 (L) x 47 (W) x 19 (H) mm
Manufacturer Ref: GP7QTQRE29XE
Product Notes
Great for private use, company car or rental fleet management
Comes with external GSM and GPS antenna for excellent reception
Save the most common instructions as TXT templates for quick references
Please make sure that there is enough credit on the SIM card placed inside the GPS unit
Some features listed in the user manual are not present as the manual has been generalized for a multi-model product range. When in doubt, refer to this product description for supported functionality
Package Contents For CVPL-G204
GPS Tracker
Wire Connector
GPS Antenna
GSM Antenna
Manual CD
FAQ - Frequently Asked Questions
How do I make sense of the longitude and latitude data this unit provides?
Both Google Maps and Google Earth can easily translate the data into usable visual information.
The unit does not pick up a GSM signal and the SMS functions aren't working, what's wrong?
A number of things could cause this to happen:
1) Make sure the SIM card is compatible (only 2G, 2.5G, 2.75G SIM cards work)
2) Make sure there is money left on the SIM card and that it has not expired
3) Make sure there is no PIN code associated with the SIM card
4) Make sure roaming is enabled on your SIM account if you are in a different country
What are the four wires on the wire connector?
The red and black wires are for positive and negative power supply respectively. The white and yellow wires have no uses.
