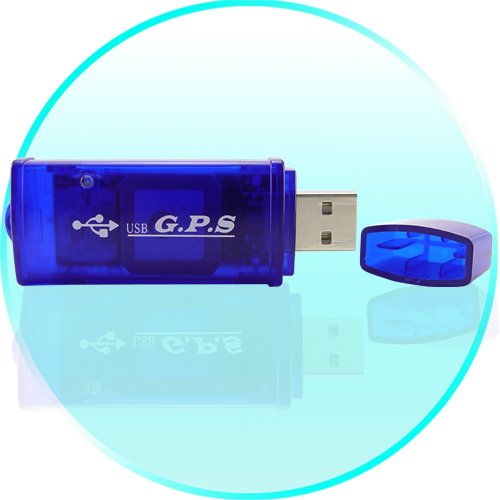

GPS Receiver USB Adapter for Computers (Netbook, Laptop, UMPC)

GPS Receiver USB Adapter for Computers (Netbook, Laptop, UMPC). Transform your laptop into a GPS navigator!

This GPS Receiver USB Adapter for Computers is a compact, accurate GPS receiver with low power consumption that plugs into your computer's USB port. This receiver is suitable for all the applications of a traditional GPS receiver including planning your trip before you head out or finding your location while you are camping. All you need is: (1) the CVGI-B07 GPS dongle; (2) a computer; (3) GPS navigation software**; and (4) a destination. After installing the receiver and the necessary software, you can find your location right on your laptop. The GPS receiver takes its power from the PC it is attached to, so there are no extra wires or cables to tie you down.

Based on SiRF Star III chipset technology, the GPS receiver provides accurate GPS positioning within 1 to 5 meters. To ensure up-to-the-second accuracy, the receiver tracks up to 20 satellites at a time, re-acquires satellite signals in about 100 milliseconds and updates position data every second. Data output by this GPS receiver include: (1) latitude/longitude/altitude; (2) velocity; (3) date/time; and (4) satellite and receiver status. An internal rechargeable Lithium-ion battery sustains the internal clock and memory and is recharged during normal operation. Its compact design is ideal for applications with space limitations.

A compact size and low wholesale price make the CVGI-B07 perfect for the resale market and is provided direct to you by the worlds number one choice for the latest high-tech gadgets and budget-friendly prices: Chinavasion.

At a Glance...
 GPS receiver USB dongle for laptop PCs
 Accurate within up 1 to 5 meters
 Low power consumption
 Quick reacquisition of satellites

**This GPS receiver is compatible with all major brands of GPS computer software. This model does not come with any GPS map software.






China Manufacturer Specifications
 Primary Function: GPS receiver USB dongle
 Tracks up to 20 satellites.
 Receiver: L1, C/A code
 Max update rate: 1 HZ
 Acquisition time
Reacquisition: 0.1 sec average
Hot start: 1 sec.
Warm start: 38 sec.
Cold start: 42 sec.
 Position Accuracy
Non DGPS (Differential GPS)
Position: 5-25 meter CEP without SA
Velocity: 0.1 meters/second, without SA
Time: 1 microsecond synchronized GPS time
DGPS (Differential GPS)
Position: 1 to 5 meters
Velocity: 0.05 meters/second
EGNOS/WAAS/Beacon
Position
< 2.2 meters, horizontal 95% of time
< 5 meters vertical 95% of time
 Dynamic Conditions:
Altitude: 18,000 meters (60,000 feet ) max
Velocity 515 meters (700 knots) / second max
Acceleration: 4 G, max
Jerk: 20 meters/second, max
 Antenna Type: Built in Patch Antenna
 Minimum signal tracked: -159dBm
 Dimensions: 74 x 25 x 14 mm
 Operating temperature: -40 to +80
 Storage temperature: -45 to +100
 Operating humidity: 5% to 95% No condensing.
 Power consumption: < 80mA at 4.5- 5.5V input
 Protocol and interface
NMEA output protocol: V.2.2
Baud rate: 4800 bps
Data bit: 8
Parity: N
Stop bit: 1
Interface: USB port
 Color: Blue
 Manufacturer Ref: ZMZP1KZL0U
Product Notes
 **This model is compatible with most brands of GPS software - however hardware specific software such as Garmin may not run on this unit. As the wholesaler, Chinavasion provides the GPS-enabled hardware only, not the software. Chinavasion provides no warranty or customer support regarding GPS software. Chinavasion cannot provide downloads / links / advice regarding GPS software. Any software installation you undertake should be performed or supervised by a professional.
 If you plan to resell this item in your own country, the most common category names for this product are - GPS-Gadget, Gadgets GPS, Gadget GPS, Συσκευές GPS, GPS гаджеты,Elektronika GPS Modulok, Modul GPS
Package Contents
 Model CVGI-B07 GPS Receiver USB Adapter
 CD (functionality software to allow this dongle to be used with 32 bit Windows XP and Windows Vista operating systems)
 USB cable
 Display/storage box


FAQ - Frequently Asked Questions
 Can I just plug this USB dongle into my laptop and start using GPS right away? In addition to this USB dongle, you will also need to install GPS navigation software (not included with this GPS receiver) on your computer. Once your computer has GPS software, then you are ready to plug in this GPS receiver and start driving.
