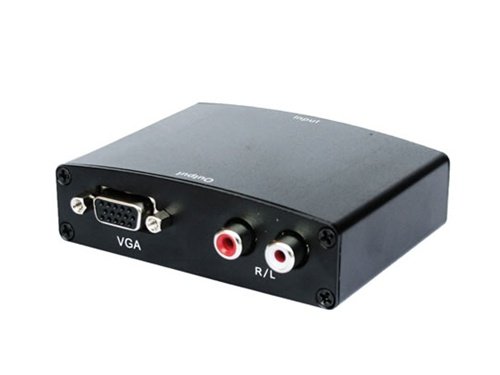

HDMI To VGA Video Adapter / Converter

Product Overview:

This converter box is capable of converting digital HDMI signal into analog VGA video and R/L audio signal. It allows users to enjoy their high definition image and sound when watching movies or playing games on the traditional VGA monitors or projectors.

NOTE 1: This device is not a scaler but only a converter. This means that the resolution of the incoming HDMI video signal is the same as the output signal and the VGA input of the display MUST MATCH the HDMI resolution for optimum picture quality.

NOTE 2: This device is an HDMI to VGA adapter as its input is HDMI and can't be used in reverse. If you need to convert VGA to HDMI see our VGA to HDMI adapters.

NOTE 3: Version of HDMI To VGA Box you receive will vary from Black, Blue, or White color with different styles. Pictures of variations are show on this page.

HDMI To VGA Box Features:

• Easy to Use: Install in seconds, no need of setting
• Conversion: It could convert complete HDMI into VGA video and R/L audio output
• Support HDCP 1.2
• Front cover bezel
• Support 165MHz/1.65Gbps per channel (6.75Gbps all channel) bandwidth for HDMI Input
• Supports Analogue Video output up to UXGA and 1080p with 10-bit DAC

HDMI To VGA + Stereo R/L Audio Converter Specifications:

• Input: HDMI A female (19pin)
• Output: VGA, R/L
• HDMI video input format: 480i/576i/480p/576p/720p/1080i/1080p
• VGA video output format: 480i/576i/480p/576p/720p/1080i/1080p
• Audio output format: 2 channel LPCM
• Vertical Frequency Range: 50/60Hz
• Input Video Amplifier Bandwidth: 1.65 Gpbs/165 Mhz
• Size: 88mmW x 26mmH x 68mmD

Get This In: 1 to 3 weeks
