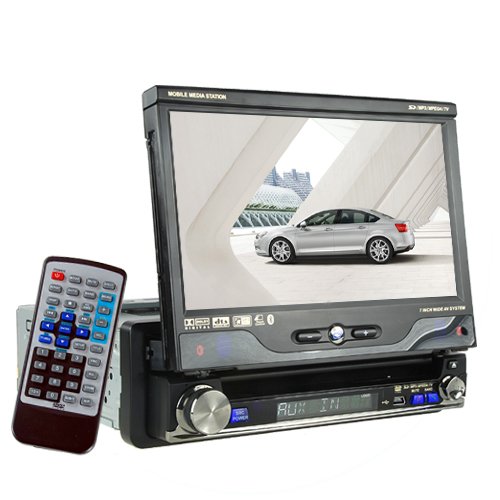

GPS Navigation and Car Audio System with 7 Inch Touchscreen

GPS navigation car audio and video system with a 7 inch touch screen LCD and Bluetooth for maximum driving utility. Be the first in your circle of car stereo enthusiasts to have this hot new 1-DIN (50mm standard height) large screen car entertainment system with detachable front panel. YES, you read that right; a single DIN 7-inch state of the art car DVD powerhouse with security detachable faceplate!

New to the marketplace, this 1-DIN GPS unit has a large 7" touch screen yet fits into a single DIN (50mm) space, meaning you can have a full functioning GPS navigator and car audio and video system that will easily DIY into any existing car. The GPS navigation system comes with an extra long 3m magnetic base GPS antenna for no hassle attachment and better satellite signal reception. It also features the Win CE 5.0 operating system which allows you to just pop in your SD card and run your favorite GPS navigational software and maps with ease.

At a Glance...

■Car Audio and Video + GPS 1-DIN unit
■GPS navigation system enabled to run almost all of today's popular GPS software
■Large 7-inch touchscreen with 4-direction slide and swivel motorized display
Manufacturer Specifications

■Primary Function: 1-DIN Car DVD Player with large 7-inch display and Bluetooth and GPS functionality
■Operation: Touch screen or remote control
■Size: 1-DIN standard (50mm)
■Discs/Formats Played:
- Discs: DVD, VCD,
- File types: MP4, Divx, MPEG, MP3, WMA, JPEG
■Display Information
- Screen: 7 Inch TFT LCD Touch Screen
- Aspect Ratio: 16:9, 4:3
- Resolution: 480x234 RGB
- Vertical Angle: 0 to 90 (motorized sliding display panel)
- Horizontal Swivel: YES
- Video Systems: PAL, NTSC, AUTO
■Bluetooth Functions
- Pair with phone - then use touchscreen interface
- Dial Call
- Answer Call
- Repeat Last Call
- Dial Received Calls
- Dial Missed Calls
- Touchscreen Keypad
■GPS Information
- GUI Interface: YES - 3D type
- Touchscreen Interface: YES
- Operating Environment: Win CE 5.0 (compatible with all major GPS software packages)
- Languages: English, Dutch, French, Spanish, Russian, Italian, Portuguese, Dutch, Chinese (simplified and traditional). Important Note: Actual GPS voice and display languages depends on the GPS software package you choose to use
■Audio Information
- Max Audio Output: 50W x 4
- Signal-To-Noise Ratio SNR: 65dB
- User adjustable: Loud, EQ (pop, rock, classical), Fader and Balance
■AM/FM Radio Tuner
- RDS System: YES
- Channel Storage: YES (40 stations)
- AM Frequency Range: worldwide
- FM Frequency Range: worldwide
■TV Tuner Information
- TV Type: Analog
- Channel Storage: YES (99 stations)
- Color Systems: NTSC, PAL (M,N)
■Front Panel Buttons/Controls
- Rotary Knob (volume/adjustment select)
- SRC/Power ON and OFF
- Mini-USB port
- Reject/Hang Up Call
- Answer Call
- Disk Eject
- Detach front panel
- 5 position direction key
■Screen Buttons/Controls
- Screen Angle Adjust (UP/DOWN)
- Screen open or hide
- Swivel direction
- Decrease/Increase
- Menu toggle
■Media Inputs
- GPS card slot (located on top of unit)
- SD/MMC card slot
- Mini-USB port
- DVD/CD disc slot
■Rear Cable/Wire Connections
- GPS Antenna IN
- Radio Antenna IN
- TV Antenna IN
- RCA Audio OUT (L and R)
- RCA Audio OUT (L and R)
- AUX Video IN
- AUX Video IN
- AUX Video IN
- AUX Audio IN
- AUX Audio L/R IN
- Rearview Camera IN
- Video OUT 1
- Video OUT 2
- Left front speaker x2
- Right front speaker x2
- Left rear speaker x2
- Right rear speaker x2
- DC 12V out
■Dimensions: 178 mm x 163mm x 50mm (L x D x H); depth = 198 mm including front panel
■OSD Languages: English, French, Spanish, Dutch, Italian, Russian, Portuguese
■System Setup Language: English
■Operating Temperature: 0 C to 55 C
■Manufacturer Ref: AW8TCMH5DA0A
■Certification: CE, TUV, GS
■Catalog Ref: Vehicle multi media player, Car touch screen entertainment center, Car stereo headunit, GPS car unit
Product Notes

■This model is compatible with most brands of GPS software - however hardware specific software such as Garmin may not run on this unit. As the wholesaler, eZyShoppe provides the GPS-enabled hardware only, not the software. eZyShoppe provides no warranty or customer support regarding GPS software. eZyShoppe cannot provide downloads / links / advice regarding GPS software. Any software installation you undertake should be performed or supervised by a professional.
■Note: Antenna's are not included. AM/FM Radio and Analog TV should work off your cars own antenna.
Package Contents

■Model CVSA-C06 GPS Car Audio 1-DIN System with Bluetooth, DVD, 7-inch TFT LCD
■Detachable face plate and case
■Remote Control
■GPS Antenna
■Mini-USB to female usb cable
■ISO Wire Harness
■Mounting Hardware
■Users Manual - English
■GPS Navigation instructions - English
■Connection guide - English
