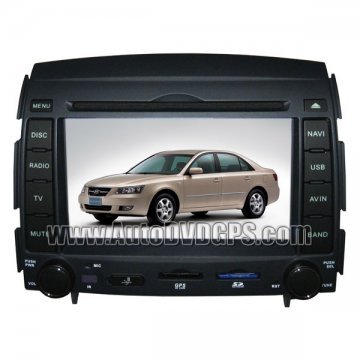

Hyundai Sonata 2006 / NF DVD GPS + Bluetooth + touchscreen + TV + Stereo + iPod control

Qualir recommendation:

All-in-one for Hyundai Sonata 2006 / NF
High Quality: made by a famous manufacturer in China.
TOSHIBA Dual Core CPU & SHINWA Cassette mechanism
6.2" high definition digital screen
Built-in GPS receiver
GPS Dual Zone (you can enjoy music and radio while navigation)
No gap with original dashboard after installation
Notice: This unit fits Sonata 2006/NF of all regions, but for USA Hyundai Sonata 2006/NF, the power harness connector is not compatible with our unit(and the problem has not been worked out till now). So we will not provide this unit to USA buyers anymore

Key Features:

6.2" TFT-LCD touch screen
Built-in GPS navigation (with full touchscreen & voice navigation)
Bluetooth hands free and A2DP Function
iPod control function
GPS Dual Zone

Entertainment Dual Zone
Support Steering Wheel Control
Support Reverse Radar Control
Built-in TV Tuner
Built-in Radio Tuner:FM AM
Support e-book
CDC port
Built-in Amplifier (4 * 60W)
Built-in USB/SD port
Built-in ESP Anti-shock function


Detail Specifications

GPS

Operating system: Windows CE 5.0
GPS Processor: SAMSUNG S3C2440A-40
Main frequency: 400MHZ.
Memory: 64MB
Store space : 64MB (can be connected to 4GB)
Precision: 10m, 2D RMS 5m, 2D RMS, WAAS enable
Supported Maps: Finean, IGO, ROUTE66,TOMTOM. Interested in GPS Map? please visit GPS Map;
Voice Guidance Cruise: Yes
GPS antenna: 1 GPS antenna interface on the back
GPS dual zone: YES. You can enjoy music and radio while navigation.

Lauguage

Main menu language: English
GPS languages: English, Deutch, Franch, Portuguese, Spanish, Italian……total 18 languages.
DVD OSD language: English, Chinese, German, Spanish, French, Russian
Subtitle language: English, Chinese, Spanish, French, Russian,Portuguese
Audio language: English, Spanish, French, Russian,Portuguese, Latin

DVD Player

Laser head: made by HITACHI
Support Media: DVD VCD CD MP3 MP4 WMV WMA 3GP AVI
Video: AUTO/NTSC/PAL
CDC (CD changer): YES ( SANYO 6 or 10 discs)

Screen Size:

6.2 " 16:9 TFT-LCD wide digital touch screen
Resolution: 1440*234 (R.G.B), higher definition due to the RGB signal
OSD language: English
Touch panel: yes
Brightness control: yes

Bluetooth

Bluetooth system: UK CSR-BC3 intelligent hands free system
Version: V2.0, Support Hands-Free phone (HFP), Stereo Playing (A2DP) & Control (AVRCP)
Built-in microphone:yes

TV tuner

Made by: PHILIPS
Digital TV or Analog TV: Analog TV tuner. If you like digital TV, you can buy a digital TV receiver and converter box.
Video format: NTSC/PAL/SECAM
Video output: D/K B/G I M/N
TV antenna:1 port TV antenna interface, on the back
ATSC: no

Radio

Made by: SANYO (TA1787)
Radio Frequency: Europe, USA1, USA2, Japan, Russia
AM Frequency range: 522-1620KHz
FM Tuning range: 87.5-108MHz
RDS: NO (RDS is short for Radio Data System, which is used in Europe)
Stereo/Mono Switch (for FM): Yes
Radio antenna interface: 1 radio tuner antenna port, on the back

iPod control

Yes
You can buy a iPod holder (with FM transmitter function)

USB

Interface: 1 USB interface. Support hot plug.
Position: front
You can buy a SD Card Reader from us, only $8.99


Input

Video CVBS(AV) Output
Support reverse radar control. press the Backsight to switch to the rear monitor status when you are reversing. With rear view camera, you can know the back circs by seeing directly from mainframe when backing the car. If you are interested in rearview camera, please visit Rearview Cameras. You can "add" "Camera + ParkingRadar" to your cart, which make your driving safer. Only $54.99. (Note: the camera below is "CMOS Camera", if you want to buy clearer "CCD Camera", please click here.


Audio 2 CH input
DVDC control

Output

Audio 2 CH output
Video CVBS(AV) Output
SPDIF output

SD 1 SD card interfaces.
Support image format: JPEG JPG GIF PNG BMP

Motorized slide-Out Face
NO

Detachable Control Panel
NO

Entertainment

Dual zone:
YES. (With "Entertainment Dual zone" function, passengers on the backseat can enjoy DVD TV Music Radio from the headrest monitor connected with the front mainframe while it is navigating. Click headrest monitors to buy it.)


E-book compatible:
YES. Support txt file

AUX in
YES

DTS
NO (DTS is short for Digital Theatre System)

Steering wheel control
YES

Button Sound:
ON for sound of buttons

MOS-FET Amplifier
YES, Max 4*60W (Stereo)
Vol VOLUME,BASS,TRABLE,BALANCE,FADER,BRIGHT,CONTRAST,COLOR
EQ POP, ROCK, FLAT,CLASS

Portable HDD Compatible
YES

Built-in speaker
NO

Subwoofer output
NO

Anti-Shock
YES. Built-in ESP Anti-shock function
Operating Environment
Voltage requirement: DC 10V-15V
Junction Temperature: -10℃ ~ +60℃

Auto Memory function
YES. All the kinds of adjustable parameter and position can auto memory and can auto restore

ISO connector
YES

Accessories Manual (Language: english)
Remote control (Battery included)
GPS antenna
USB connector
iPod connector
Touch pen

Power cable
Tool for installing

Installing size 184*178*100mm

Packing
Box size: 30*34*17cm
Unit Packing (G. W.): 4.8kg/5.0kg

Warranty:12 months

Other features

Servo Solution: SUNPLUS

Note:In order for your safety, drivers are not recommended to watch TV or DVD while driving.
