HIGH QUALITY SOLAR PANELS

FACTORY DIRECT! AS LOW AS $1.90/WATT (FOB TAIWAN) FOR LARGE mW PROJECTS!

PURCHASE DIRECTLY FROM A LEADING SOLAR CELL AND MODULE PROVIDER WITH PROVEN PROCESS INNOVATION, STATE-OF THE ART MANUFACTURING TECHNOLOGY, WORLD CLASS CELL EFFICIENCY, AND RECORD PRODUCTIVITY YIELDS SINCE 2004!

THIS LISTING IS FOR ONE 20' CONTAINER OF 240 PIECES

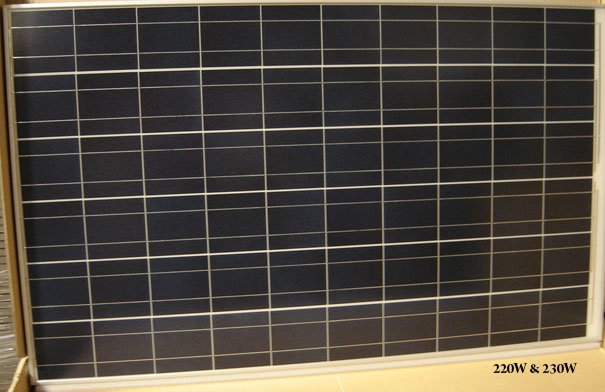

230W MULTI-CRYSTALLINE MODULE

FEATURES

High performance, multi-crystalline modules
Power tolerance of 0 to +3%; provides stable, high-energy system output
High PV cell shunt resistance, increases power output under low light conditions
Low temperature coefficiency of power, enables high power output under all types of weather conditions
High efficiency solar cells, combined with state of the art manufacturing technologies, provides cost effective panels per kWh
High wind and snow load tolerance
Certifications

IEC 61215 & IEC61730
UL 1703
Compliant with the Buy American Act
California Energy Commission listed
Warranty

25 year limited warranty on power output
Specifications

Dimensions: 1626mm(L) x 990mm(W) 38.1mm(D) / 64"(L) x 39"(W) x 1.5"(D)
Cells: 60 Cells In Series (6 x 10)
Module Weight: 20Kg / 44.09 lbs
Open Circuit Voltage (VDC): 37.20V
Maximum Power Voltage (Vpm): 29.49V
Short Circuit Current (ISC): 8.39A
Maximum Power Current (Ipm): 7.80A
Maximum Rating Power (Pmax): 230W
Output Power Measurement Tolerance: 0~+3%
Module Efficiency: 14.30%
Maximum System Voltage: IEC: DC1000V / UL: DC600V
Series Fuse Rating: 15A
Operating Temperature: -40C - 90C
Temperature Coefficient of Voltage: -0.32%/C
Temperature Coefficient of Current: 0.08%/C
Temperature Coefficient of Power: 0.38%/C
Normal Operating Cell Temperature: 46C+1/C
Wind / Snow Load: 5400 Pa Testing Load
Also Available in 210W and 220W Modules
PARTNER UP WITH OUR WORLD WIDE TEAM!

DEPENDING ON TIME OF ORDER, ETA MAY BE ANYWHERE FROM 2~6 WEEKS, AS WE PLACE ORDER WITH FACTORY IMMEDIATELY UP RECEIPT OF YOUR CLEARED FUNDS!

SHIPPING COST WILL BE DETERMINED BY FINAL DESTINATION - PLEASE PROVIDE YOUR ZIP CODE PRIOR TO PURCHASE FOR SHIPPING COST
