$58.39
On Hold
Dimension 3000 Temperature Control CPU Case Fan K0456 J0531 92x38mm Genuine Dell 3-pin
3 available
Details
Shipping: Australia: $37.00 (more destinations)
Sales Tax: check
Condition: Brand new
*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.

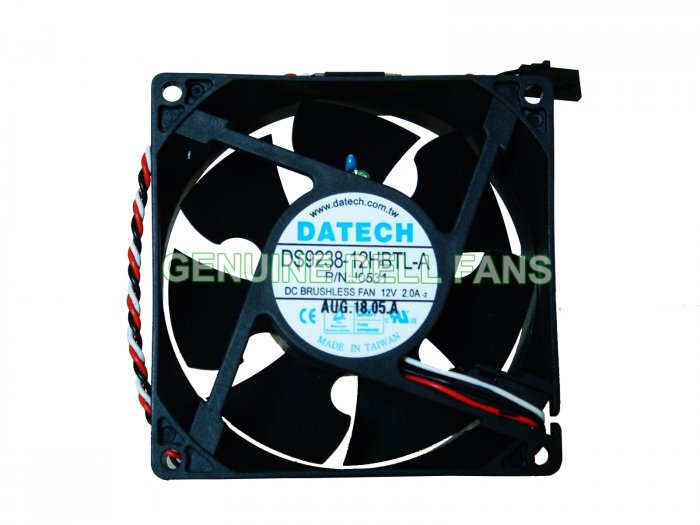

New Genuine Dell Fan, Dimension 3000, Temperature Control, CPU Case Fan, K0456, J0531, 92mm x 38mm with Dell 3-pin connector.
JMC/DATECH is one of the multiple Original Equipment manufacturers of Dell Computer cooling fans. The JMC DS9238-12HBTL-A, is a Dell 3-pin, 92mm x 38mm, 12 Volt, Temperature Control fan with the Heat Sensor which is made to work in your Dell Dimension 3000 computer
If your model does not have the JMC fan, that is because Dell used multiple brand manufacturers to make the identical fan. They are the same and all compatible with your model.
Please take measurements, check for compatibility, fan application and verify fan plug configuration before making your purchase. See specifications and photos for comparison.
NOTE: Please be mindful. Some models used a 5-pin / 4-wire fan. Please check before purchasing. This fan for sale has a Dell 3-pin / 3-wire connector. Also, check the wire colors and their respective positions in the Dell 3-pin plug on your old fan compared to the new one you are contemplating on purchasing. The typical wire color order for the Dell 3-pin plug is (latch facing you) white, red and black.
However, if the white and red wires on your old fan plug are (red, white and black) reverse, then the wire positions on the new fan plug will need to be swapped out to match the old one. This was a revision from Dell on their select upgraded systems. Neglecting to make this change will result in component and system board failure. If you are unable to perform this modification, please contact us to make the change for you before shipment. There is no charge for this service.
Reminders, if applicable to your model, avoid the inconvenience of down time, by checking the Rubber Insulator Mounts before making your fan purchase. They are not included with the fan and do not always need replacement. Rubber Insulator Mounts are optional and available for sale on the site. Bring up the listing by typing Rubber Insulator Mounts into the site's search Box.
Restore your computer to its Original Condition with this High Quality fan from Genuine Dell Fans.
Genuine Dell Fan, Dimension 3000, Temperature Control, CPU Case Fan, K0456, J0531, 92mm x 38mm with Dell 3-pin connector in stock.
Specifications:
. Condition: New
. Mfr: JMC/DATECH
. P/N: DS9238-12HBTL-A
. Size: 92mm x 92mm x 38mm
. Type: Temperature Control with Heat Sensor
. Voltage: DC 12V
. Voltage Range: 10.8-13.2V
. Rated Current: 2.30 A
. Speed: 5700 RPM
. Air Flow: 120 CFM
. Noise Level: 53.2
. Bearing: Dual Ball
. Wire Length: 11"
. Connector: Dell 3-pin
