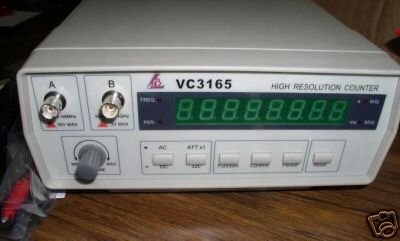

LDB VC3165 FREQUENCY/HIGH RESOLUTION COUNTER 0.01 Hz-2.4 GHz FREE SHIPPING

More than 10 available

Details

Shipping: Australia: free (more destinations)

Condition: Brand new

*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.

Description

Key features

Based on microprocessor. frequency, period and equal-precision measurement. 8 digit LED display. Range from 0.01Hz to 2.4GHz. stability and low cost. Convenient and safe to operate

Specifications:

1) CH. A (0.01Hz - 50MHz):

Frequency: DC couple 0.01Hz to 100Hz,

AC couple 100Hz to 50MHz

Sensitivity: DC 0.01Hz to 1Hz less than 500m Vp-p

AC 100Hz to 50MHz less than 80m Vrms

1Hz to 100Hz less than 80m Vrms

2) CH. A (50MHz - 2.4GHz):

Frequency: 50MHz to 2.4GHz

Sensitivity: 50MHz to 1.2 GHz less than 80m Vrms

1.2GHz to 2.4GHz more than 80m Vrms

3) Resolution: depends on gate time control setting.

4) Precision: standard time error (t) x frequency (f) +1d

5) Power supply: 220V/110V

6) Weight: 1.6kg

7) Dimension: 270mm x 215mm x 100mm

Packing list:

Manual, power cord and test probe.
