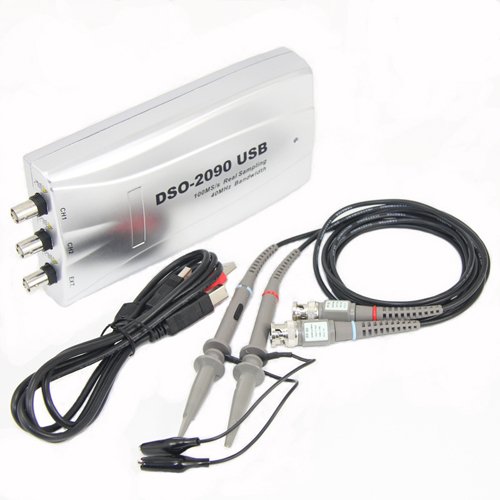

DSO-2090 100Msa per s USB PC Digital Oscilloscope VIRTUAL DSO
Dual Channel, 40MHz Bandwidth,
100Msa/s Sample Rate

Probe & USB Cord & SW/CD & Manual are included


1. Characteristic

USB2.0 interface, no external power source required, easy to use.
be suitable for notebook computer，product line maintenance，be used easily on business.
Dimensions (mm):190(L) x100(W) x35(H), be carried easily.
High performance, 100MS/s real-time sampling, 40MHz Bandwidth.
Operating System: Windows98,Windows Me, Windows NT, Windows 2000, Windows XP ,VISTA
23 measurement functions, PASS/FAIL Check, be suitable for technical application.
Waveform average, persistence, intensity, invert, addition, subtraction, multiplication, division, X-Y plot.
Save waveform in the following: text file, jpg/bmp graphic file, MS excel/word file.
FFT
One computer can connect many DSO, extend channel easily.
LabviewVBVCDelphiC++Builder Second Design instance.



2. Hardware Specification

Channel
2 Channels

Impedance
1MΩ 25pF

Coupling
AC/DC/GND

Vertical resolution
8Bit

Gain range
10mV-5V, 9Steps

DC accuracy
±3%

Timebase range
4ns-1h, 38 Steps

Vertical adjustable
Yes

Input protection
Diode clamping

X-Y
Yes

Autoset
Yes (30Hz to 40MHz)

EXT. input
Yes

Trigger Mode
Auto, Normal and Single

Trigger Slope
+/-

Trigger level adjustable
Yes

Trigger Type
Rising edge, falling edge

Trigger Source
CH1, CH2, EXT

Pre/Post trigger
0-100%

Buffer size
10K-32KB/Channel

Shot bandwidth
DC to 40MHz

Max. Sample rate
100MS/s

Sampling selection
Yes

Waveform Display
port/line, waveform average, persistence, intensity

Network
Open/Close

Vertical mode
CH1, CH2, Dual, ADD

Cursor measurement
Yes

Spectrum analyzer

Channel
2 Channels

Math
FFT, addition, subtraction, multiplication, division.

Bandwidth
40MHz

Cursor
Frequency, Voltage

Data Samples
10K-32K/Channel










3. Software:

Operating system: Windows98, Windows Me, Windows NT, Windows 2000,

Windows XP, VISTA.
