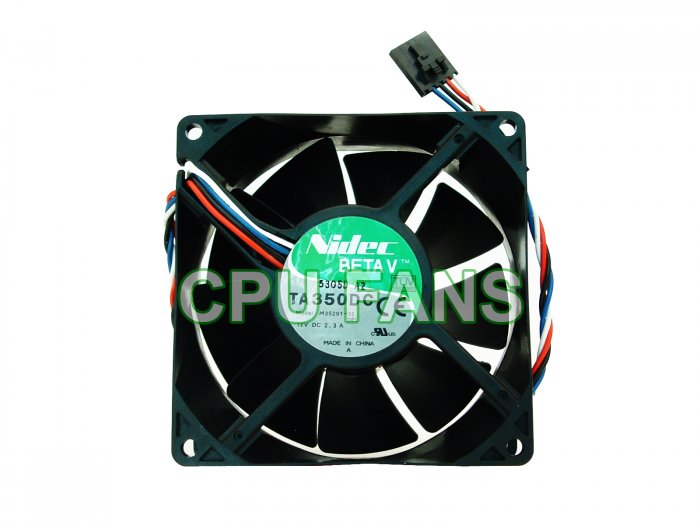

The Dell Dimension 8400 Case Cooling Fan 92mm x 38mm with 5-pin/4-wire plug connector.

Nidec is one of the Original Equipment manufacturers of Dell Computer cooling fans. This Case Cooling fan is a 5-pin/4-wire, 92mm x 38mm, 12 Volt, PWM control equipped with Pulse Width Modulation which is designed to work specifically in your Dell Dimension 8400 computer.

*Please check for compatibilty and verify your systems fan plug configuration before purchasing.*

Restore your Dell computer to its Original condition with this High Quality fan with Genuine Dell parts.

Features:

. High-Capacity Air Delivery at Elevated Pressure Levels
. Reverse Polarity Protection
. Strut Side Discharge
. Alarm/Tachometer/Thermal Speed Control/PWM Speed Control Options
. Permanently Lubricated Ball Bearings
. Thermoplastic Frame and Impeller Rated V-0

This fan will replace part numbers: P2780, 4925R and F6193.

*Just a Reminder, to prevent additional down time, Check those Rubber Mounts before making your purchase. As an option, Rubber Insulator Mounts are available for sale on the site. They are not included with the fan and do not always need to be replaced. You may find the listing by typing Rubber Mounts into the search Box.

Dell Dimension 8400 Cooling Fan, 92mm x 38mm with 5-pin/4-wire plug connector is in stock and ready to ship.


Specifications:

. Condition: New
. Mfr: Nidec
. P/N: M35291-35
. Size: 92mm x 92mm x 38mm
. Type: PWM Control
. Voltage: DC 12V
. Voltage Range: 10.8-12.6V
. Current: 2300 (mA)
. Power: 27.6 (W)
. Speed: 6000 RPM
. Air Flow: 150 CFM
. Noise Level: 57.0 dBA
. Bearing: Dual Ball
. Impeller: 9 blade
. Wire Length: 11"
. Connector: 5-pin/4-wire
