Combined Electrical Fire Monitoring Detector
More than 10 available
Details
Shipping: Australia: $41.00 (more destinations)
Condition: Brand new
Returns: 7 days, buyer pays return shipping (more)
https://www.vedardsecurity.com/combined-electrical-fire-monitoring-detector-p-116
▪ The non-polar two buses are connected to the monitoring device to realize the communication and power supply functions at the same time.
▪ The address code is electronical, which can be written in advance by the electronic encoder. The engineering debugging is simple and reliable, which can also be set directly on the machine
▪ The microprocessor monitors the operation and transmits the status of the module to the monitoring device in both normal and alarm modes.
▪ Wire system: Non-polar connection to the signal bus of the monitoring device
▪ Line rated frequency: 50Hz/60Hz
▪ Dimensions: 92mm × 59mm × 110mm
How to use the combined electric fire monitor detector?
Each combined electric fire monitor detector is installed in one power distribution box. It has 8 channels and can accept input of residual current detection or high temperature detection signal. The residual current detectos' outlet loops and temperatures detectors' outlet loops will be funneled into the combined electric fire monitor detector. Then it connects to addressable electric fire monitor panel TC-5600. From the TC-5600, you can set the residual current alarm value.

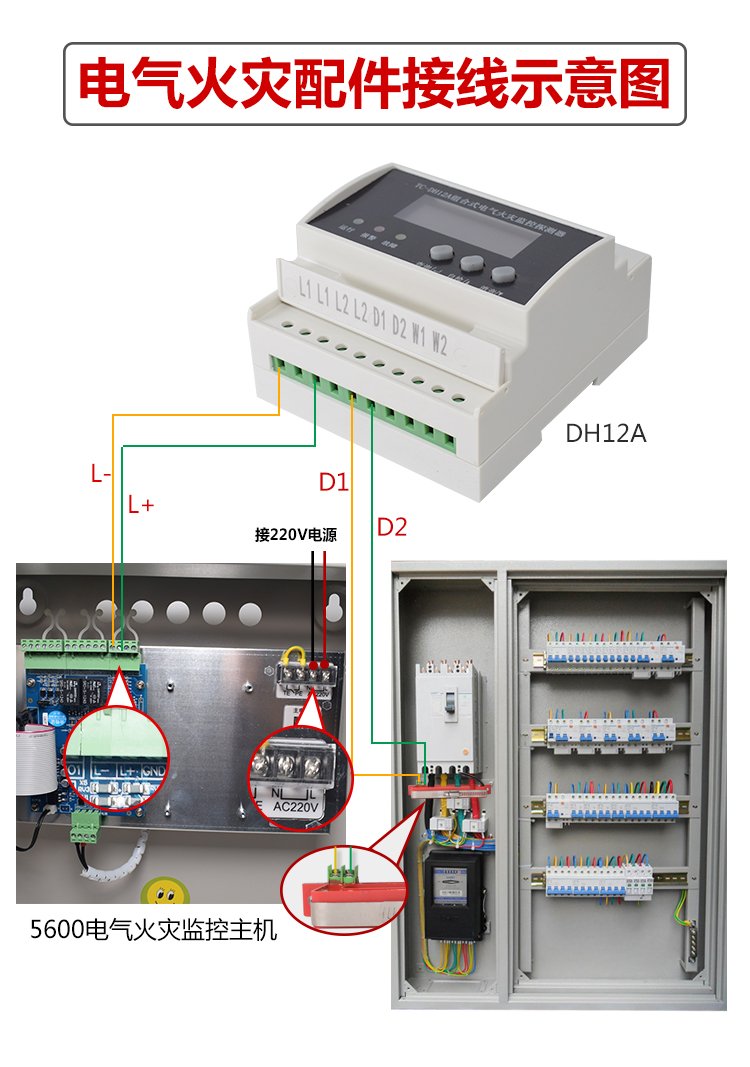

What can the combined electric fire detector do? How to wire and encode it?
▪ The non-polar two buses are connected to the monitoring device to realize the communication and power supply functions at the same time.
▪ The address code is electronical, which can be written in advance by the electronic encoder. The engineering debugging is simple and reliable, which can also be set directly on the machine
▪ The microprocessor monitors the operation and transmits the status of the module to the monitoring device in both normal and alarm modes.
▪ Wire system: Non-polar connection to the signal bus of the monitoring device
▪ Line rated frequency: 50Hz/60Hz
▪ Dimensions: 92mm × 59mm × 110mm
How to use the combined electric fire monitor detector?
Each combined electric fire monitor detector is installed in one power distribution box. It has 8 channels and can accept input of residual current detection or high temperature detection signal. The residual current detectos' outlet loops and temperatures detectors' outlet loops will be funneled into the combined electric fire monitor detector. Then it connects to addressable electric fire monitor panel TC-5600. From the TC-5600, you can set the residual current alarm value.
What can the combined electric fire detector do? How to wire and encode it?
