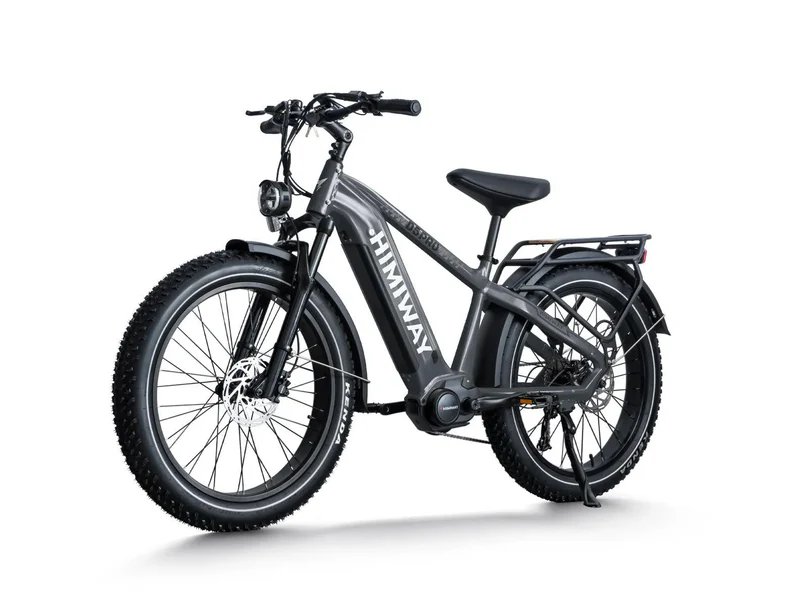

Dominate Every Landscape with the Himiway D5 Pro Terrain Electric Bike
Engineered for riders who laugh at “road closed” signs, the Himiway D5 Pro redefines what a mountain eBike can do. Whether you’re carving through rocky trails, plowing through snowdrifts, or hauling gear across sand dunes, this all-terrain electric bike transforms obstacles into playgrounds.

Why Adventure Riders Choose the D5 Pro Mountain eBike:
✅ 750W High-Torque Motor – Power through 30° inclines and loose terrain.
✅ 4” Fat Tires – Float over mud, snow, and sand like a tank with treads.
✅ 80-Mile Monster Range – 960Wh battery lasts for multi-day off-grid trips.
✅ Cargo Beast Mode – Rear rack + front basket haul 400 lbs of gear (or groceries).

Want to know more? Click here

Built for the Wild:

Full Suspension – Absorbs boulders and roots without breaking stride.
Fat-tire design - Allows you to go over all terrain smoothly.
A truck that you can Ride – Over 400lbs Payload Capacity allows you explore its usage.

Technical Specifications
Geometry
Recommended Height: 5'3" ~ 6'5"
A – total length
78.7
B – handlebar height
47
C – handlebar length
28
D – wheelbase
49.2
E – wheel diameter
28.7
F – minimum seat height
20.9
G – maximum seat height
31.4
H – chain stay length
19
I – frame stack
24.6
J – frame reach
17.8
K – effective top tube length
24.4
L – head tube length
5.5
M – head angle
65°
N – standover height
ST 22.4/ SO 31.1
Frame
6061 Aluminum frame
Headset
Neco H156EM 28.6*44-56*30
Fork
TRAMA FAT34-PLS-26" 100mm travel 15*135mm thru axle
Shock
Alloy front suspension fork with lockout and adjustment
Front wheel
Rim: MD-147 26*4.0"*36H*12G A/V
Spoke: 12G 255/256L stainless (304M)
Hub: MB015-92 M9*12G*135*145W
Rear wheel
Rim: MD-147 26*4.0"*36H*12G A/V | Spoke: 12G 256/257L stainless (304M) | Hub: GSMB019R-190F-GM14
Tires
Kenda 26*4.0
Battery
Samsung/LG 48V 20Ah
Motor
500W mid-drive motor
Display
KD718-P LCD display with Type-c charger
Throttle
Thumb throttle
Sensors
Torque sensor丨shifting sensor speed sensor丨brake sensor
Crankset
Crankarm: Prowheel 170mm / Chain ring: 44T BCD104
Freewheel
Shimano CS-HG201-9 11-36T
Chain
KMC E9 EPT 124L
Groupset
Shimano altus M2000 9 speed
Front brake
Tektro HD-E3520 hydraulic brake
Rear brake
Tektro HD-E3520 Hydraulic Disc Brake
Rotors
Tektro TR180-52 F:180mm R:180mm
Stem
Zoom TDS-C269-8FOV 31.8*90mm
Handlebar
Promax HB-3188 22.2*31.8*700mm
Seatpost
Himiway Seatpost
Saddle
Himiway Saddle
Pedal
Aluminum pedal
Lights
48V LED light
Kickstand
Heavy-duty aluminum kickstand
Range
60-80 miles
Controller
48V/22A
Charger
U.S. standard 3.0 A fast charger
Rider height
5′3″ ~ 6′5″
Weight
79 lb. (with battery)
Max. payload capacity
400 lb.

MSRP: $2599.00
