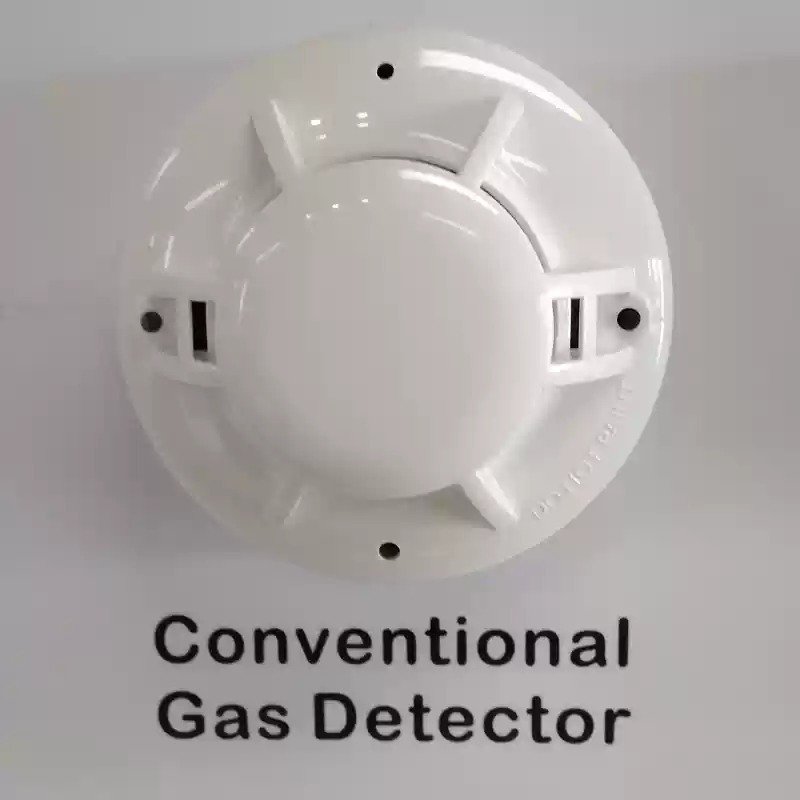

Gas Detector Relay Output DC12-24V Power Supply

Combustible Gas Detector LNG LPG gas Leak Detector DC12-24V connection with home security systems. Loud 85dB alarm and LED warning light. Self diagnostic function by MCU intelligent software.
FEATURES:
1. Detect all sorts of combustible gases, natural gas (methane), bottled gas (propane), LPG (Liquefied petroleum Gas), LNG (Liquefied natural gas), coal gas, including town gas.

2. High quality durable catalytic
combustion method gas sensor.

3. Easy to install.

4. Loud 85dB alarm and LED warning light.

5. Self diagnostic function by MCU intelligent software.

6. Excellent reliability & High stability.

7. Ideal for all house and kitchens.

TECHNICAL SPECIFICATIONS
Color: Ceiling White

Operating Temperature: -10°C to +50°C

Ambient Humidity: ≤95% RH

Alarm Horn: 80dB

Operating Voltage: DC12-24V
Power Consumption: 3 years

Alarm: Red LED with 80dB alarm

Warm Up Time: approximately 60 Seconds

Alarm Output: Relay Output (1A@DC24V)

DC powered Gas detector Terminals Wires
Description (DC Power Relay Output
Module)

T1. Red Color: DC+, DC power Positive Input

T2: Black Color: DC- , DC power Negative Input

T3: Yellow Color: NO, Relay Normal Open Contact

T4: Green Color: NC, Relay Normal Close Contact

T5: White Color: COM, Relay Common Contact
