Complete drawings of the aircraft Cri-Cri
Cree-plane crystal

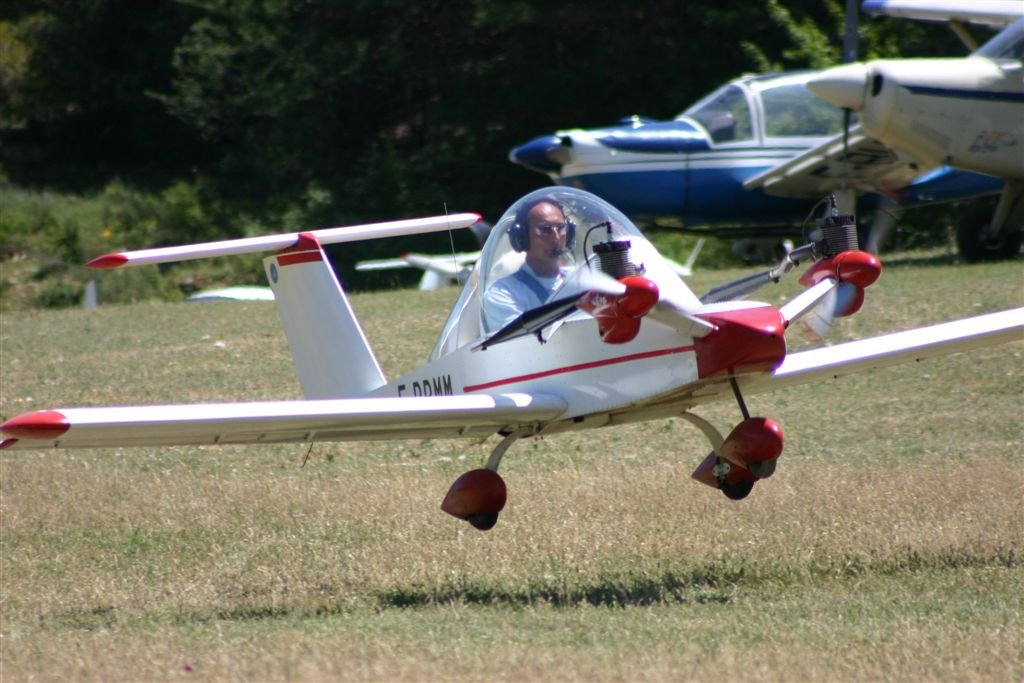

But the most famous of ultralight planes are "Cri-Cri" Colombano (which was featured in the film "Armor of God" with Jackie Chan in Sec. Role) and his Russian counterpart - Ulyanovsk "E-12." Both aircraft are equipped with two low-power engines pulling.
The difference between the Kree-Kree from the E-12 in a closed cockpit, improved aerodynamics and low-set wings (Cri-Cri - nizkoplan
Performance specifications "Cree-Kree"
full wing span, m
4.9
wing chord (no flaps), m
0.48
wing chord (with flaps), m
0.63
total wing area, m
3.1
aspect ratio
7.75
transverse angle of the wing (from the root), degrees
4
twist wing deg.
-1.5
type ailerons
Junkers
full length, m
3.91
Total height, m
1.2
scope G.O, m
1.55
G.O chord, m
0.395
Wheel track, m
1.1
base chassis, m
1.15
diameter propellers, m
0.695
base of propellers, m
0.95
length of the cockpit, m
1.3
width of the cockpit, m
0.55
height of the cockpit, m
0.82
airfoil
Wortmann
nose wheel diameter in mm
200h50
diameter main wheels, mm
210h70
engine, 2 pcs.
JPX PUL-212
power, 2 pcs.
15 hp
speed, rev / min
6000
Fuel tank capacity, l
23
maximum empty weight, kg
75
maximum takeoff weight, kg
170
max. speed in a dive, km / h
280
max. horizontal velocity, km / h
220
max. Cruising speed, km / h
200
flaps are omitted
72
flaps removed
93
max. rate of climb, m / s
6.5
max. climb (one engine), m / s
1.5
Service ceiling, m
5000
take-off run, m
100
distance at H = 15 m, m
300
run, m
150
distance from H = 15 m, m
350
max. range, km
400
flight time, h
3
fuel consumption l/100 km
5
max. overload, g
+10 / -5
max. Aerodynamic. quality
11
I sell a complete Aircraft drawings Cree Cree, as well as instructions for its manufacture.
I'll send the files to your email in the archive.
I am not responsible for the mistakes I just prodovets designer.
Drawings in pdf, you can easily print on your home printer and build your plane.
