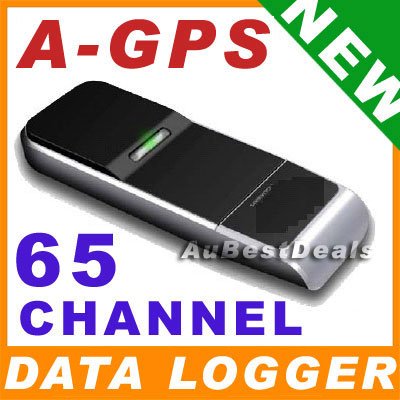

NEW 65 CHANNEL DATA LOGGER FUNCTION USB GPS RECEIVER A-GPS
More than 10 available, 1 sold
Details
Shipping: Australia: $14.00 (more destinations)
Condition: Brand new
*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.
Fast Acquisition High-Sensitivity
65 Channels
USB GPS Receiver Dongle
Data Logger Functionality
Support AGPS (Assisted GPS)
For Desktop, Laptop, Ultra Mobile PC,
Mobile Internet Device
The latest bluetooth and GPS technology exemplified by this USB GPS Receiver!
Faster, more sensitive, and last longer.
BEST Performance in the Market!!!
65 Channels USB GPS Receiver Dongle is a single board of GPS USB dongle receiver for customers who require easy system integration and minimal development risk.
Its 65 parallel channels and Venus 6 search bins provide short start-up time and fast signal acquisition. Having fast time-to-first-fix and high sensitivity, it offers good navigation performance even in urban canyons.
This USB GPS Dongle is capable of keeping up to 256K recordsor positions, including longitude, latitude, speed, UTC,and tag data. The location histories can be exported to mapping software such as Google Earth or TrackMaker.
Satellite-based augmentation systems, such as WAAS and EGNOS, are supported to yield improved accuracy. Besides it also supports A-GPS function and fixed in the short time.
The onboard patch antenna provides good signal reception. It provides fast satellite signal acquisition and short startup time. Acquisition sensitivity of –155dBm and tracking sensitivity of –160dBm offers good navigation performance even in urban canyons having limited sky view.
USB interface are provided on the interface connector. Supply voltage of 3.8V~8.0V is supported.
* Acquire and track 65 satellites simultaneously
* Venus 6 simultaneous time-frequency search bins
* Signal detection better than -160dBm
* Reacquisition sensitivity –155dBm
* Cold start < 30 seconds at –147dBm
* Hot start time less than 1 sec. (Average) under open sky
* 5m CEP accuracy
* Support A-GPS functison
* SBAS (WAAS, EGNOS) support
* 2M Bytes flash memory for data logging, with 16 bytes binary data per record that stores up to 256K data records
* Log data can be exported to mapping software suchas Google Earth and TrackMaker
* Logging data interval programmable: by time or distance
* USB version 1.1/2.0 interface
* Easy-plug-in Notebook/UMPC/Mini-PC
* Easy-installation USB driver
* Super mini size:73.5x27x10 mm
This receiver has a sleek design and a good look thanks to its small form factor and high quality materials used.
It can track 65 satellites in view and uses Venus 6 GPS receiver which provide short start-up time and fast signal acquisition. Venus 6 series is quite sensitive; enabling to device get a fix at -155dBm and continue tracking at -160dBm.
Receiver Type - 65 parallel channels, L1 C/A code
Accuracy - Position 5m CEP, Velocity 0.1m/sec
Startup Time (Average) - < 1sec hot start, < 30sec cold start
Signal Reacquisition - 1s
Sensitivity - 155dBm Re-acquisition, 160dBm tracking, 147dBm Cold Start
Update Rate - 1Hz standard
Dynamics - 4G (39.2m/sec2)
Operational Limits - Altitude < 18,000m or velocity < 515m/s, (COCOM limit, either may be exceeded but not both)
Protocol - NMEA-0183 V3.01; GPGGA, GPGLL, GPGSA, GPGSV, GPRMC, GPVTG, GPZDA; 38400 baud, 8, N, 1
Datum - Default WGS-84, User definable
Input Voltage - 3.8~8V DC
Power Consumption - < 42mA (1Hz standard version)
Dimension - 73.5mm L x 27mm W x 10mm H
Weight - 18g
Operating Temperature - -40°C ~ +85°C
Humidity - 5% ~ 95%
Assisted GPS
With Assisted GPS technology, GPS Data (ephemeris data) will be downloaded from an A-GPS Server through internet and transferred to the GPS via Bluetooth. This will greatly reduce the TTFF since the positions of the satellites are known. The downloaded GPS data will expire in few days if the GPS is not being used. If GPS receiver is being used on daily basis, GPS data will also be downloaded from satellites.
Package Content:
* USB GPS Receiver Dongle
* USB Adaptor
* CD Software
65 Channels
USB GPS Receiver Dongle
Data Logger Functionality
Support AGPS (Assisted GPS)
For Desktop, Laptop, Ultra Mobile PC,
Mobile Internet Device
The latest bluetooth and GPS technology exemplified by this USB GPS Receiver!
Faster, more sensitive, and last longer.
BEST Performance in the Market!!!
65 Channels USB GPS Receiver Dongle is a single board of GPS USB dongle receiver for customers who require easy system integration and minimal development risk.
Its 65 parallel channels and Venus 6 search bins provide short start-up time and fast signal acquisition. Having fast time-to-first-fix and high sensitivity, it offers good navigation performance even in urban canyons.
This USB GPS Dongle is capable of keeping up to 256K recordsor positions, including longitude, latitude, speed, UTC,and tag data. The location histories can be exported to mapping software such as Google Earth or TrackMaker.
Satellite-based augmentation systems, such as WAAS and EGNOS, are supported to yield improved accuracy. Besides it also supports A-GPS function and fixed in the short time.
The onboard patch antenna provides good signal reception. It provides fast satellite signal acquisition and short startup time. Acquisition sensitivity of –155dBm and tracking sensitivity of –160dBm offers good navigation performance even in urban canyons having limited sky view.
USB interface are provided on the interface connector. Supply voltage of 3.8V~8.0V is supported.
* Acquire and track 65 satellites simultaneously
* Venus 6 simultaneous time-frequency search bins
* Signal detection better than -160dBm
* Reacquisition sensitivity –155dBm
* Cold start < 30 seconds at –147dBm
* Hot start time less than 1 sec. (Average) under open sky
* 5m CEP accuracy
* Support A-GPS functison
* SBAS (WAAS, EGNOS) support
* 2M Bytes flash memory for data logging, with 16 bytes binary data per record that stores up to 256K data records
* Log data can be exported to mapping software suchas Google Earth and TrackMaker
* Logging data interval programmable: by time or distance
* USB version 1.1/2.0 interface
* Easy-plug-in Notebook/UMPC/Mini-PC
* Easy-installation USB driver
* Super mini size:73.5x27x10 mm
This receiver has a sleek design and a good look thanks to its small form factor and high quality materials used.
It can track 65 satellites in view and uses Venus 6 GPS receiver which provide short start-up time and fast signal acquisition. Venus 6 series is quite sensitive; enabling to device get a fix at -155dBm and continue tracking at -160dBm.
Receiver Type - 65 parallel channels, L1 C/A code
Accuracy - Position 5m CEP, Velocity 0.1m/sec
Startup Time (Average) - < 1sec hot start, < 30sec cold start
Signal Reacquisition - 1s
Sensitivity - 155dBm Re-acquisition, 160dBm tracking, 147dBm Cold Start
Update Rate - 1Hz standard
Dynamics - 4G (39.2m/sec2)
Operational Limits - Altitude < 18,000m or velocity < 515m/s, (COCOM limit, either may be exceeded but not both)
Protocol - NMEA-0183 V3.01; GPGGA, GPGLL, GPGSA, GPGSV, GPRMC, GPVTG, GPZDA; 38400 baud, 8, N, 1
Datum - Default WGS-84, User definable
Input Voltage - 3.8~8V DC
Power Consumption - < 42mA (1Hz standard version)
Dimension - 73.5mm L x 27mm W x 10mm H
Weight - 18g
Operating Temperature - -40°C ~ +85°C
Humidity - 5% ~ 95%
Assisted GPS
With Assisted GPS technology, GPS Data (ephemeris data) will be downloaded from an A-GPS Server through internet and transferred to the GPS via Bluetooth. This will greatly reduce the TTFF since the positions of the satellites are known. The downloaded GPS data will expire in few days if the GPS is not being used. If GPS receiver is being used on daily basis, GPS data will also be downloaded from satellites.
Package Content:
* USB GPS Receiver Dongle
* USB Adaptor
* CD Software
