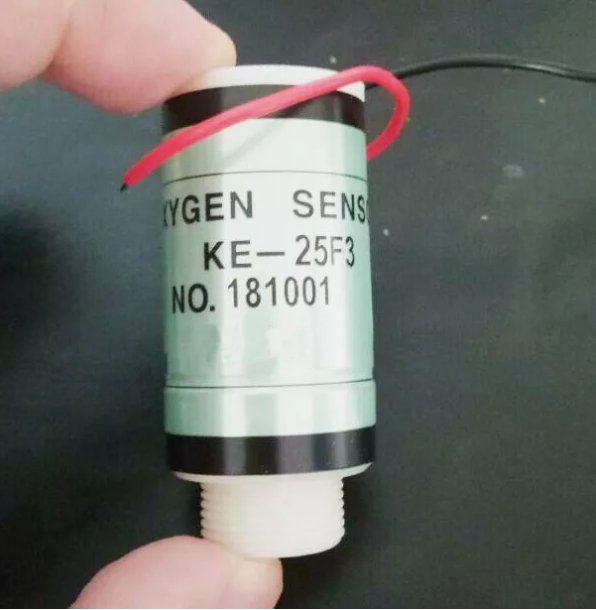

New FIGARO KE-25F3 KE25F3 GS Oxygen Sensor
Place of Origin: Japan
Brand Name: Figaro
Model Number: KE-25F3
KE-25F3 Electrochemical Long Life Oxygen Sensor No Warm Up Time Required
Long service life, excellent chemical stability, and no interference and influence by CO2. The KE series oxygen sensors were developed to meet the growing demand for oxygen detection in various industries, such as combustible gas monitoring, biotechnology applications, residential gas appliances, etc.
Parameter:
Relative humidity 10~90%RH (no condensation)
Response time (90%) (Note 2) about 15 seconds
Initial output voltage under
factory test conditions 10.0~15.5mV
Life expectancy in normal air
at 20˚C (Note 3) about 5 years
Application:
*Safety Field - Oxygen Detector
*Environmental Control - Combustible Gas Monitoring
*Food Industry - Refrigerants, Greenhouses
*Teaching Equipment - Oxygen Experiment Kit
Notes:
1) If two oxygen concentrations of 0% and 30% are used for calibration, the accuracy of the full scale is ±1% when the range is from 0 to 30% of the oxygen content.
2) In order to meet the response speed in the specification table, the sensor should be used under the condition that the air exchange rate is greater than 200～300ml/min.
3) Life expectancy in normal air (1013 hPa / 21%O2) at 20˚C refers to the period during which the sensor output value drops to 70% of the initial value.
