$299.50 Add to Cart

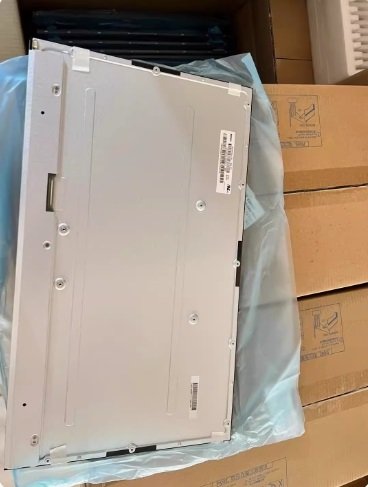

M238HCA-LCZ Innolux 23.8 inch narrow-edged screen TFT-LCD display module

More than 10 available

Details

Shipping: Australia: $8.00 (more destinations)

Condition: Brand new

Returns: 14 days, buyer pays return shipping (more)

*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.

Description

Brand Innolux
Model M238HCA-LCZ
Diagonal Size 23.8 inch
Type a-Si TFT-LCD, LCM
Pixel Format 1920(RGB)×1080 [FHD] 92PPI
Configuration RGB Vertical Stripe
Active Area 527.04(H)×296.46(V) mm
Outline Dim. 535(H)×313(V) ×12.7(D) mm
Bezel Area -
Treatment Antiglare (Haze 25%), Hard coating (3H)
Luminance 250 cd/m² (Typ.)
Contrast Ratio 1000:1 (Typ.) (TM)
View Direction Symmetry
Response Time 14 (Typ.)(G to G)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) Left / Right / Up / Down
Operating Mode AAS, Normally Black, Transmissive
Support Color 16.7M 99% sRGB
Light Source WLED [4 strings] , 30K hours , W/O Driver
Weight 2.23/2.34Kgs (Typ./Max.)
Designed For Desktop Monitor Gaming
Frame Rate 60Hz
Touch Panel Without
Interface Type LVDS (2 ch, 8-bit) , 30 pins Connector
Power Supply 5.0V (Typ.)
Environment Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
