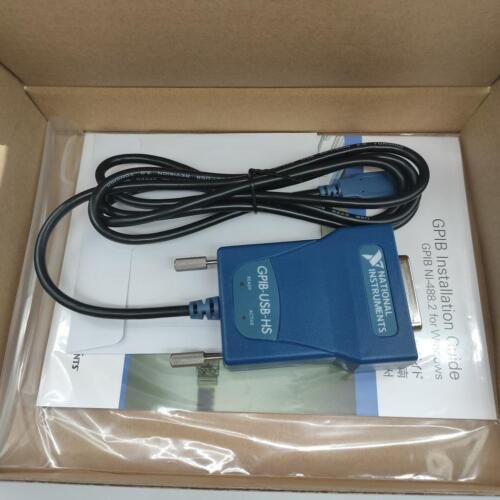

New Sealed NI GPIB-USB-HS National Instrumens Interface Adapter controller IEEE

Performance
GPIB
3-wire

up to 1830 kbytes/s

HS488

up to 7230 kbytes/s

Power Requirements
USB bus-powered device

+5 V (VBUS)

140 mA, Typical; 500 mA, Maximum

Physical Characteristics
Dimensions

10.7 cm × 6.6 cm × 2.6 cm (4.2 in. × 2.6 in. × 1.0 in.)

Weight

180 g (6.3 oz), includes USB cable weight

Connector
GPIB

IEEE 488 24-pin connector

USB

USB standard Type A plug

Jackscrew
Thread

M3.5 × 0.6

Torque

0.56 N · m (5.0 lb · in.), maximum

Environment
Operating ambient temperature

0 °C to 55 °C (Tested in accordance with IEC 60068-2-1 and IEC 60068-2-2.)

Operating relative humidity

10% to 90%, noncondensing (Tested in accordance with IEC 60068-2-56.)

Storage ambient temperature

-20 °C to 70 °C (Tested in accordance with IEC 60068-2-1 and IEC 60068-2-2.)

Storage relative humidity

5% to 95%, noncondensing (Tested in accordance with IEC 60068-2-56.)
