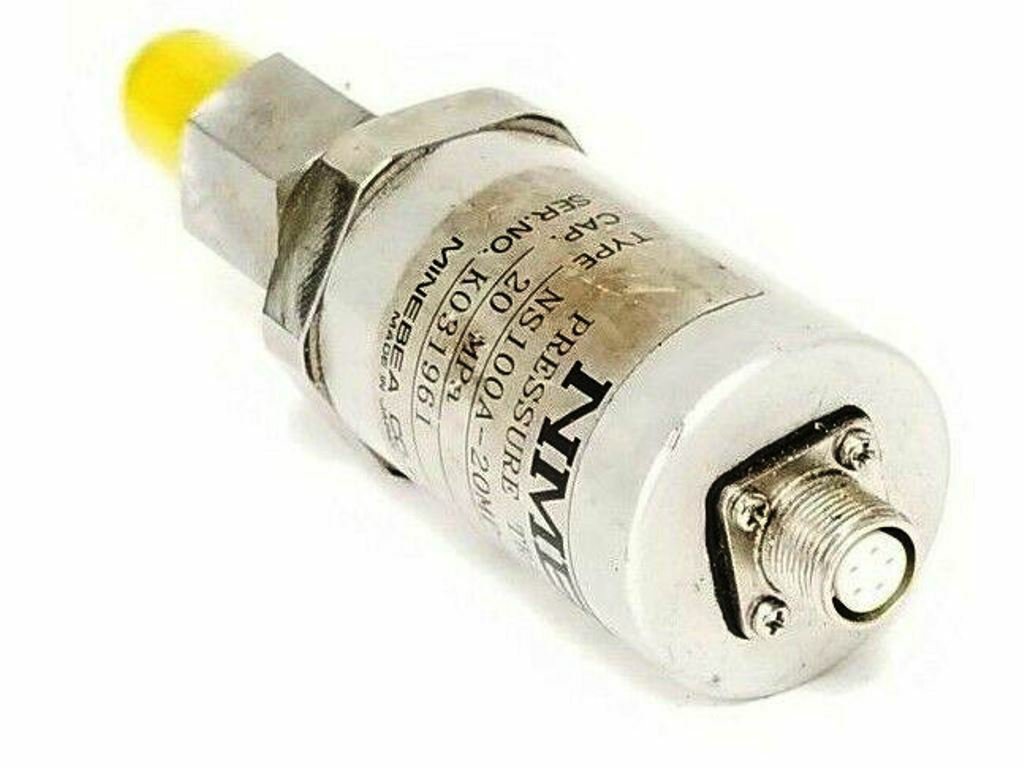

NMB NS100A-20MP-5222-S14 PRESSURE TRANSDUCER NS100A20MP5222S14, 20 MPa

NS100A seriesFeature・ Highly accurate pressure transmitter 0.2%R.O. as a standard by SOS technology. （including Non-linearity, Hysteresis and Repeatability.)0.1 %R.O. is also available as a high accurate type.・ High reliability and durability by SOS technology.・ Can correspond to the absolute pressure and compound pressure・ Small size and light weight・ Wide range pressure from 200kPa to 50MPa can be measure.Rated capacity200 kPa ~ 50 MPaSafe overload200 %R.C.Ultimate overload300 %R.C.Accuracy0.2 %R.O. (including non-linearity, hysteresis and repeatability)Rated outputCurrent : 4 mA ~ 20 mA (2 wires method, Load resistance 500 ohm or less, at 24 V)Voltage : 0 V ~ 10 V (Load resistance 5 k-ohm or more)Response frequency1 kHzPower supply voltageDC 24 V(18 V ~ 28 V)Power consumptionApprox. 30 mAInsulation resistance1 000 MΩ or more (DC 50 V)Temp. range, compensated-20 ℃ ~ 70 ℃Temp. range, safe-30 ℃ ~ 80 ℃Temp. effect on zero0.2 %R.O./10 ℃Temp. effect on output0.2 %LOAD/10 ℃ConnectorR03-RB5F(receptacle)Class of protectionIP44 or equivalent (Main body only)Material of pressure holeStainless steelMaterial of coverAlluminium alloy (with almite processing)Material of pressure diaphragmSingle crystal sapphire, etc.,Mounting screwG3/8{PF}WeightApprox. 200 gTightening torque20 N･m ~ 40 N･m {2.04 kgf･m ~ 4.08 kgf･m}Special specificationNS100A-D6 : Guranteed accuracy 0.2 %R.O. at negative side. Power supply voltage : ±DC15 VNS100A-H : As an amplifier part is are separated.(The highest, environmental temperature is 200 ℃)NS100A-S70 : IP67 or equivalent waterproof construction with zero adjustment factor)NS102 : Pressure inlet port : φ10
